KASTENLOK INDEX

New model added: 22 MAY 2020

H0e/m/f

Pictured: Fleischmann Art 7000

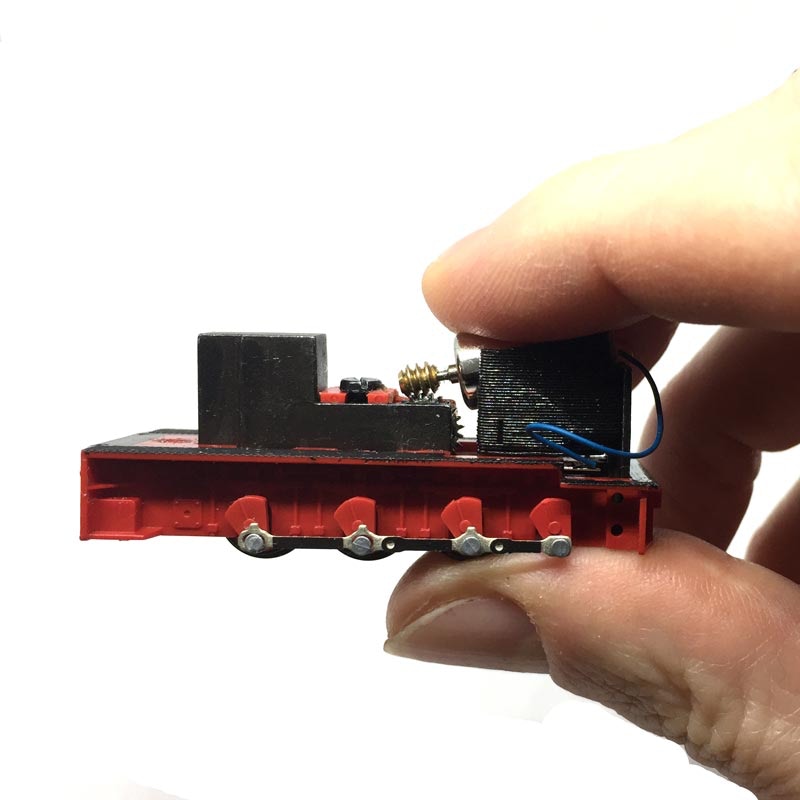

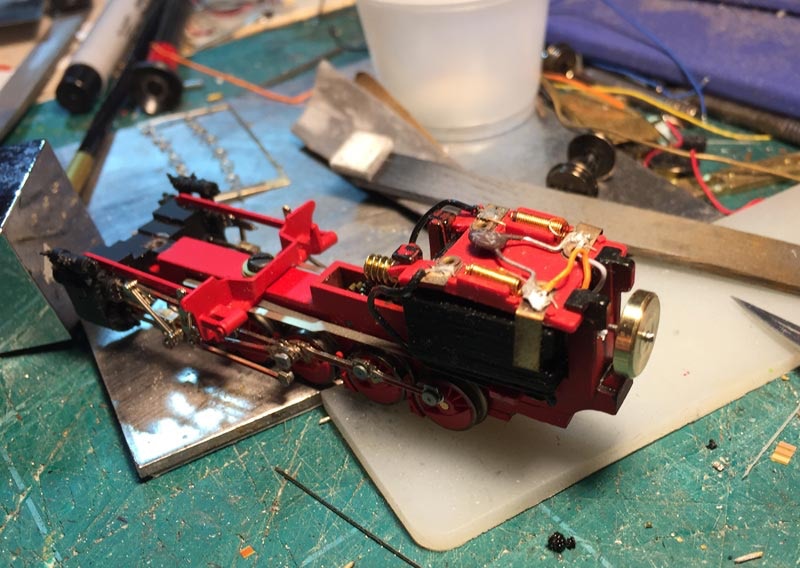

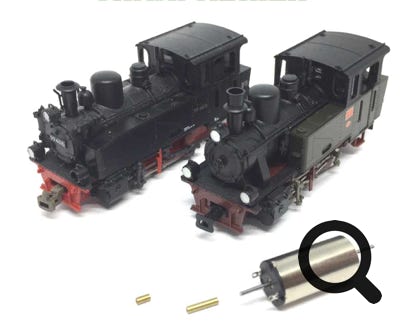

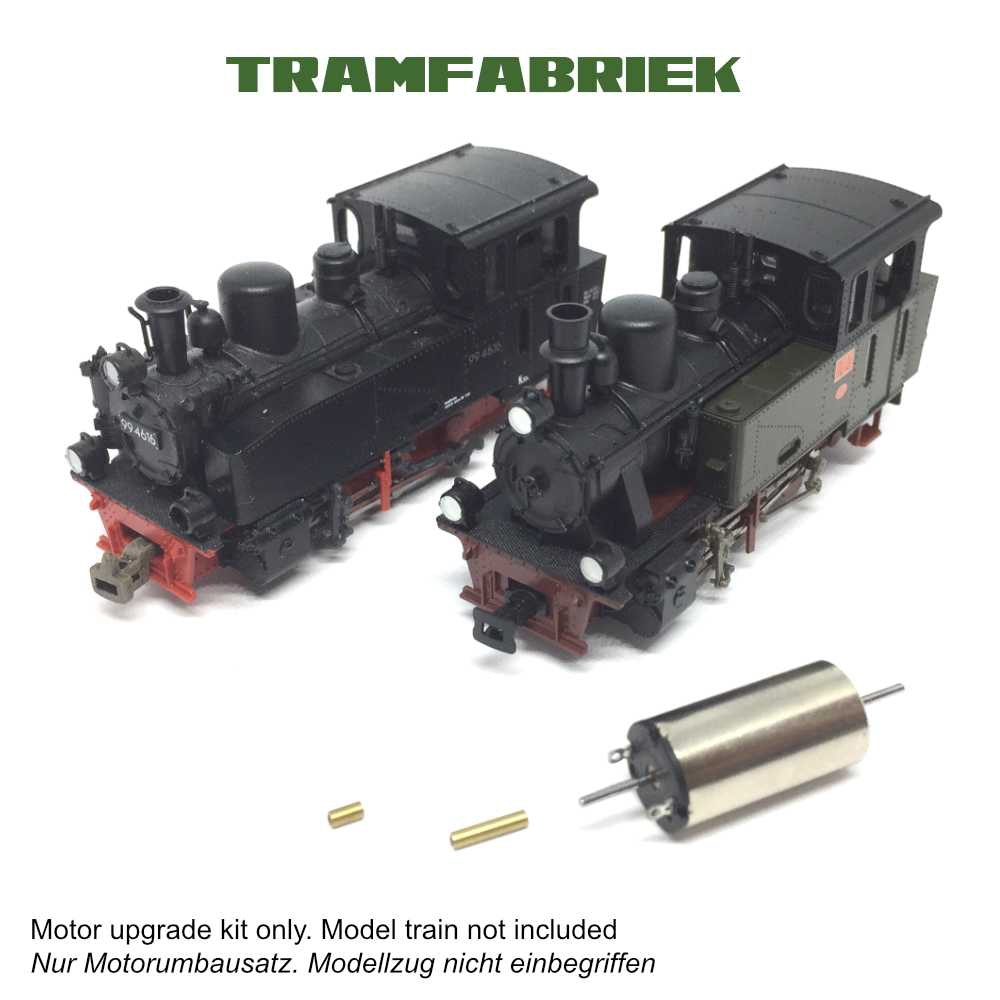

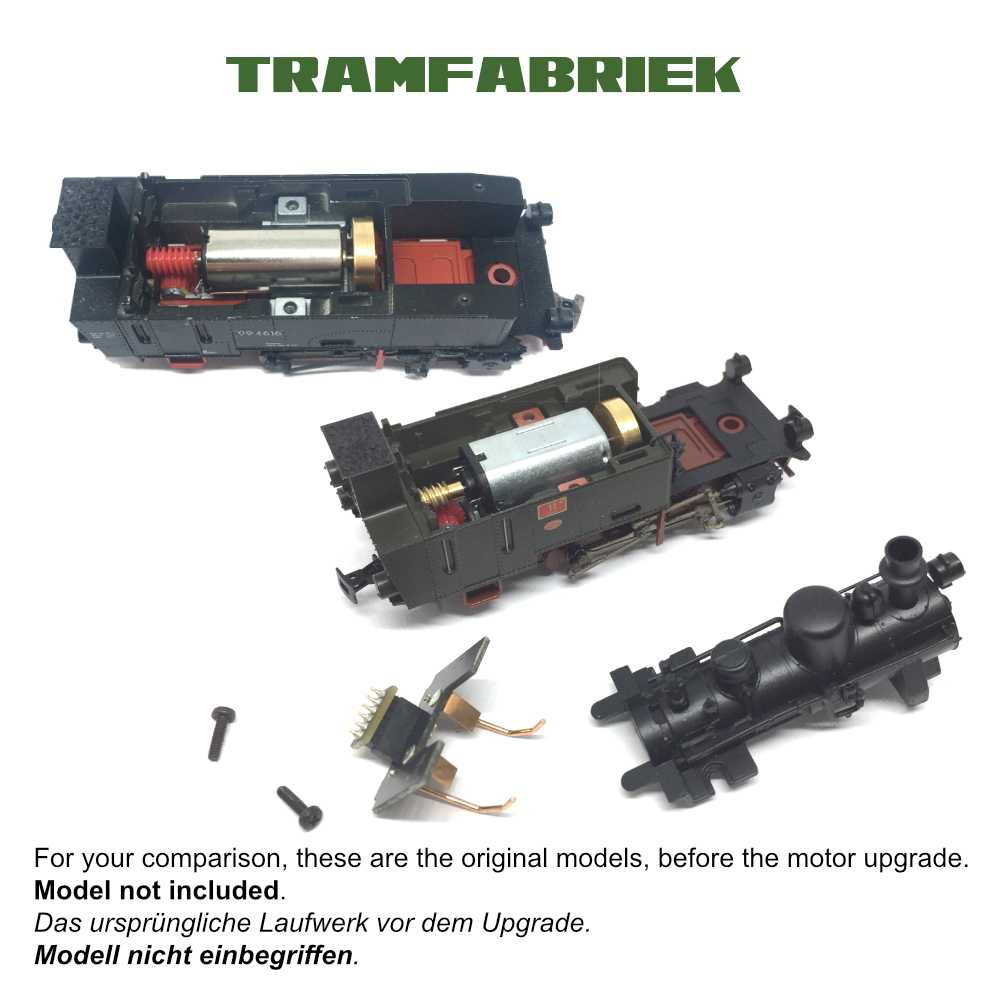

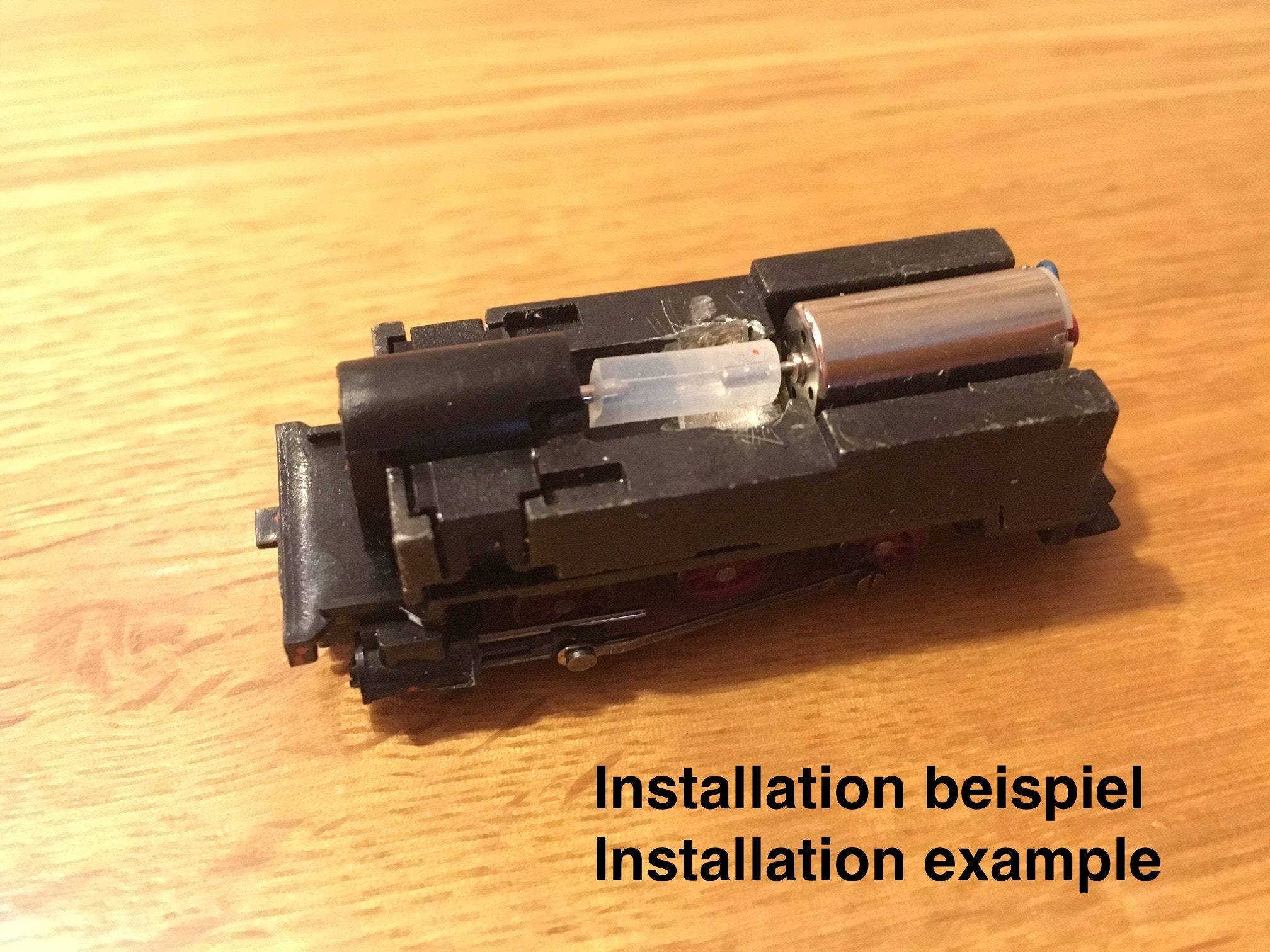

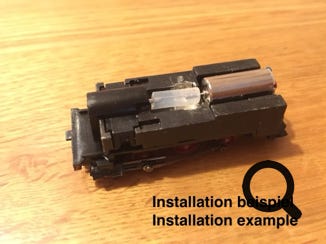

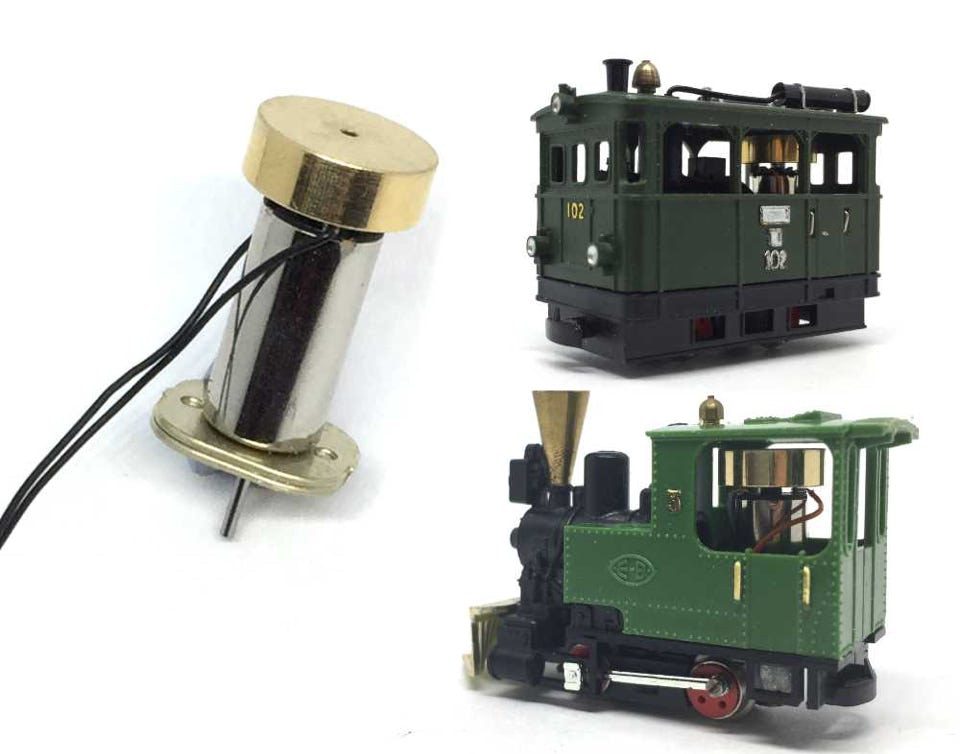

Klokanker ombouwset gemaakt voor Roco H0e stoomtreinen artikelnummers 33201, 4100, 33240, 33242, 33261 of andere uitvoeringen van dit model.

Coreless motor conversions kit made for Roco H0e steam trains

Art 33201, 4100, 33240, 33242, 33261 or similar locomotives.

Links:

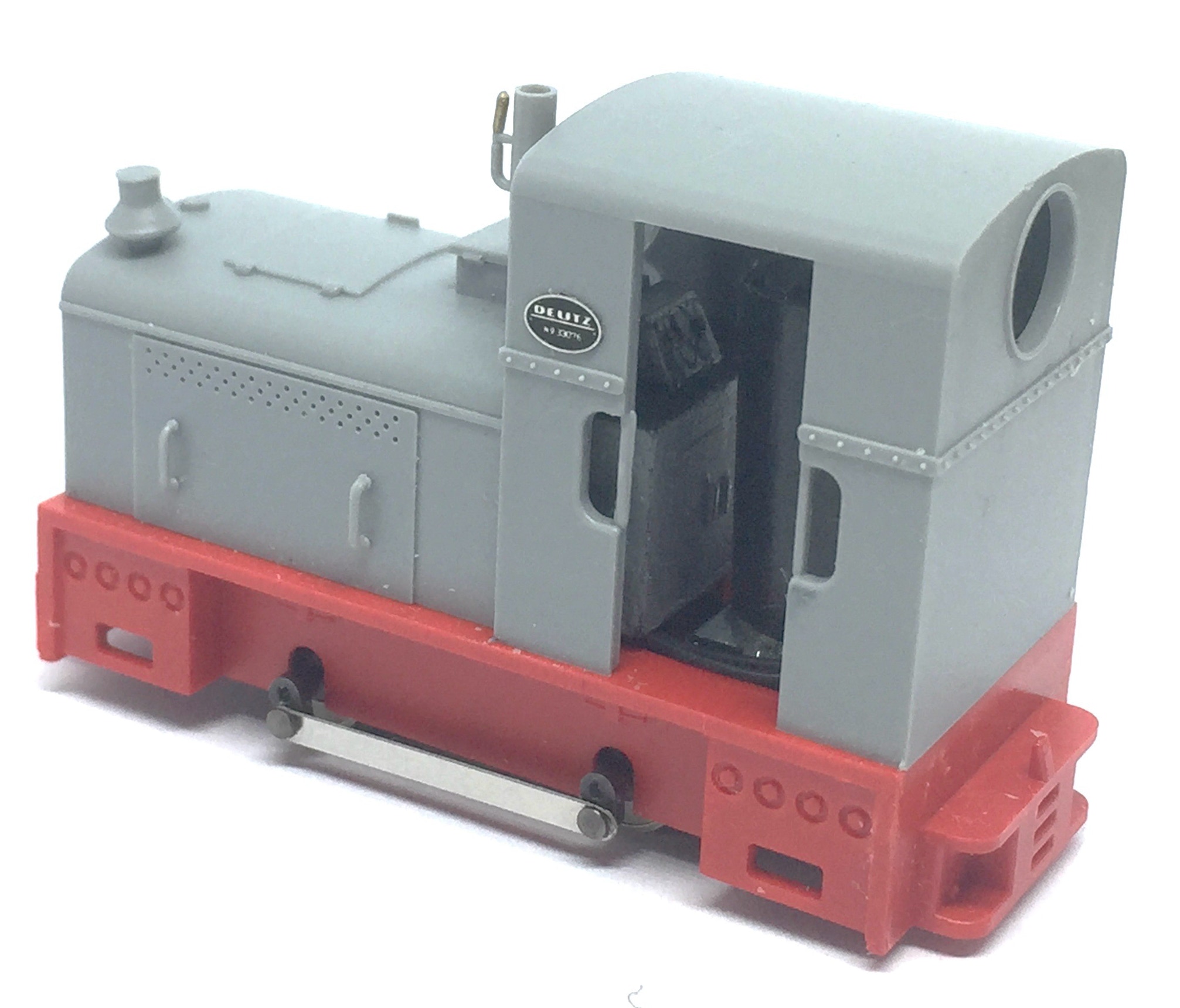

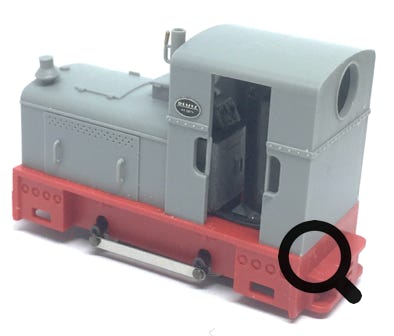

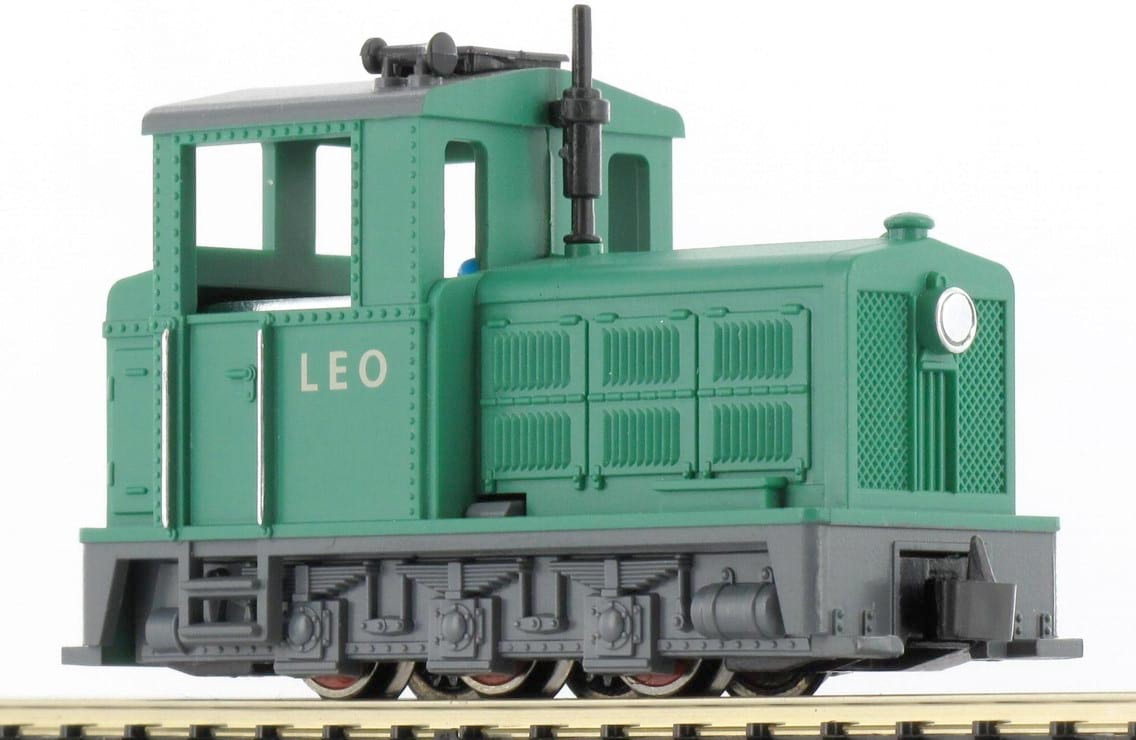

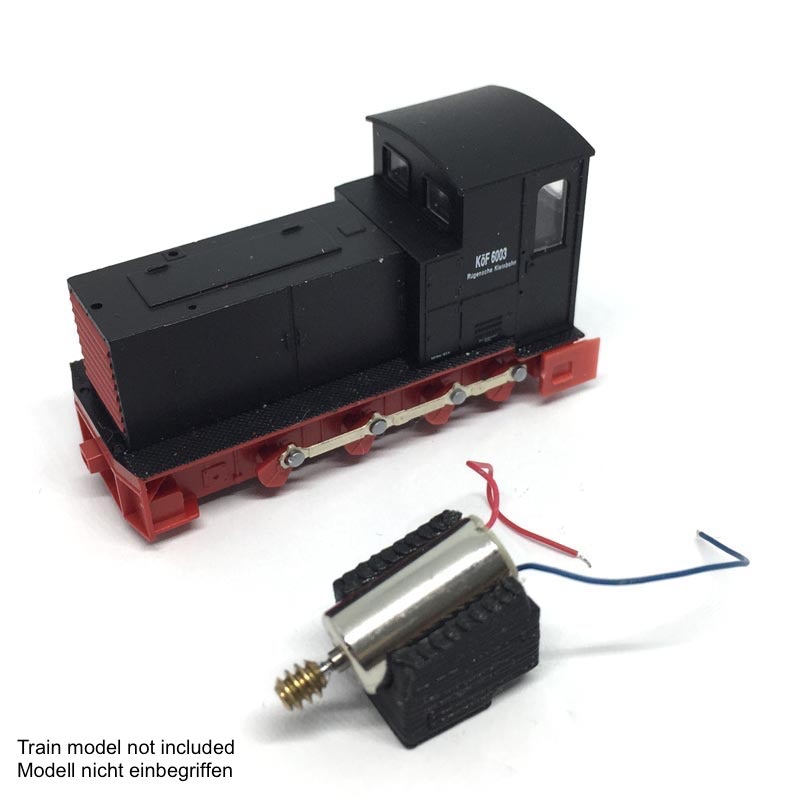

Klokanker ombouwset gemaakt voor Roco H0e dieseltreinen artikelnummers 31025, 31027, 33204, 33205, 33206, 33207, 33208, 33209 of andere uitvoeringen van dit model.

Coreless motor conversion kit made for Roco H0e diesel trains

Art 31025, 31027, 33204, 33205, 33206, 33207, 33208, 33209 or similar locomotives.

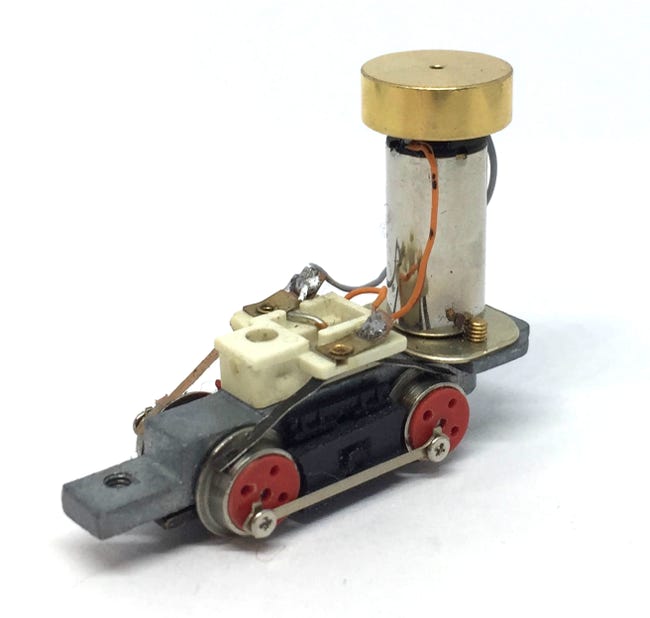

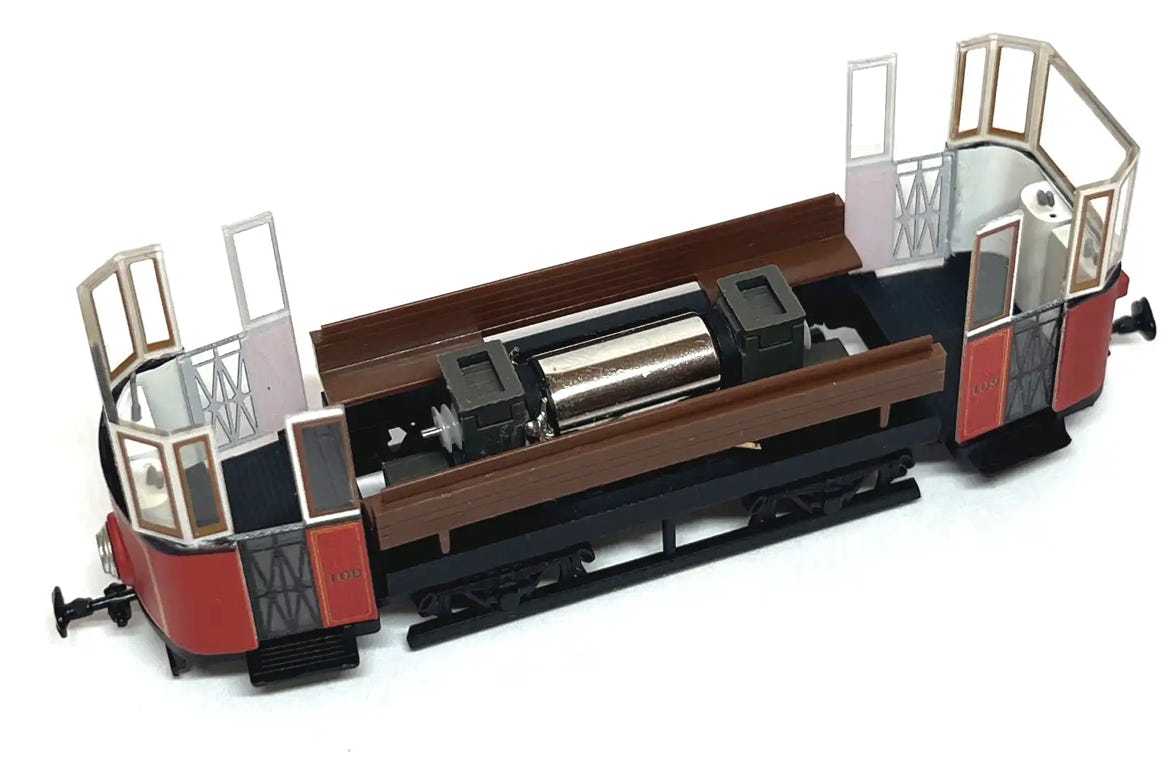

Motorisering voor Atlas tram model ‘Herbrand TW4 Halle’

Compleet gebouwde messing aandrijving met 12V klokankermotor en 8 mm schijfwielen. Komt met stickermal voor het weg te frezen gedeelte in de bodemplaat.

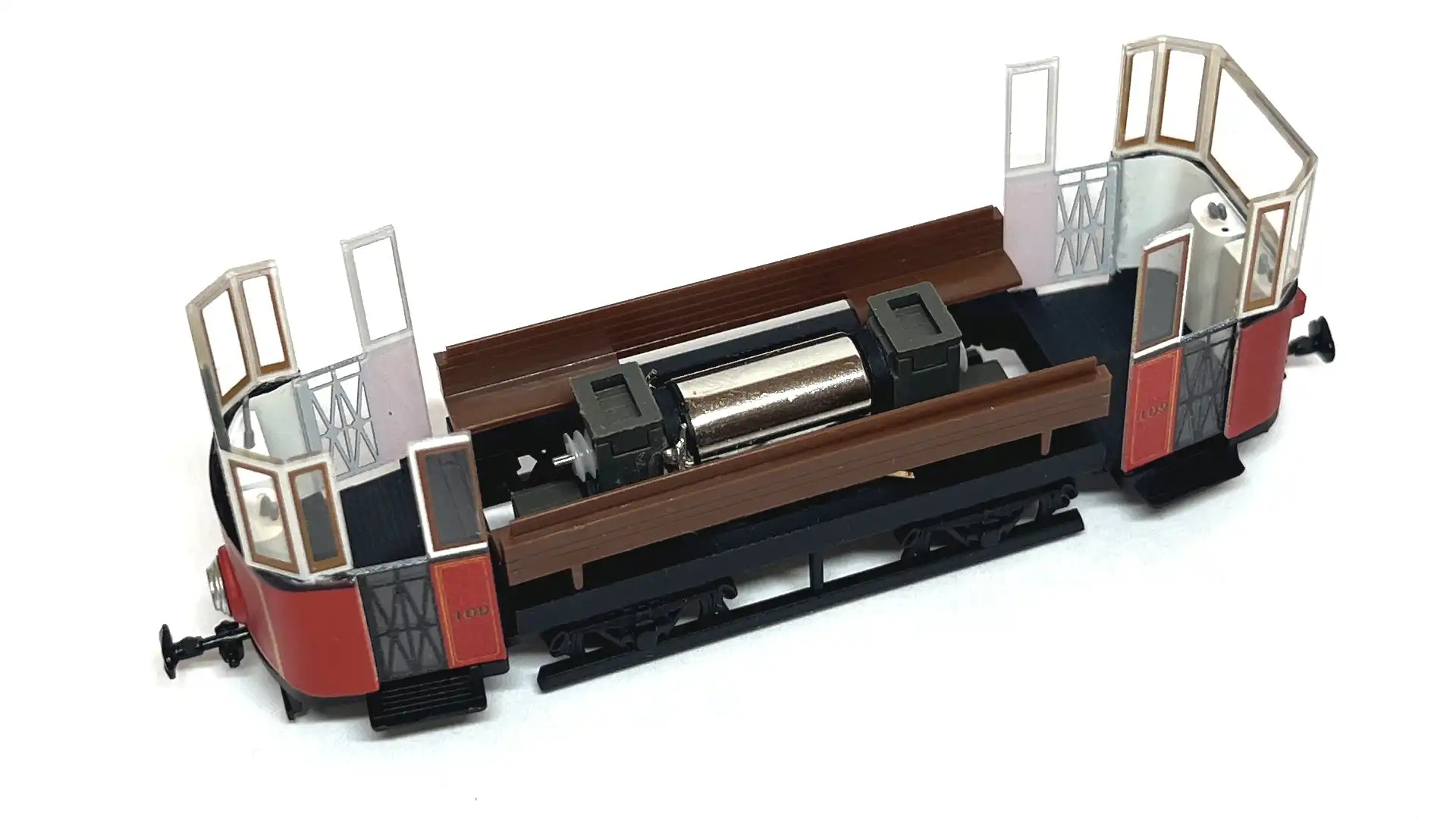

Motorisation for Atlas tram model ‘Herbrand TW4 Halle’

Completely built brass drive with 12V coreless motor and 8 mm disc wheels. Comes with sticker template for part of tram bottom plate to remove.

Inhoud: 1x aandrijving, 1x freesmal

Gewicht: 16 gram

Diameter wiel: 8 mm

Contents: 1x drive, 1x cutting template

Weight: 16 grams

Wheel diameter: 8 mm

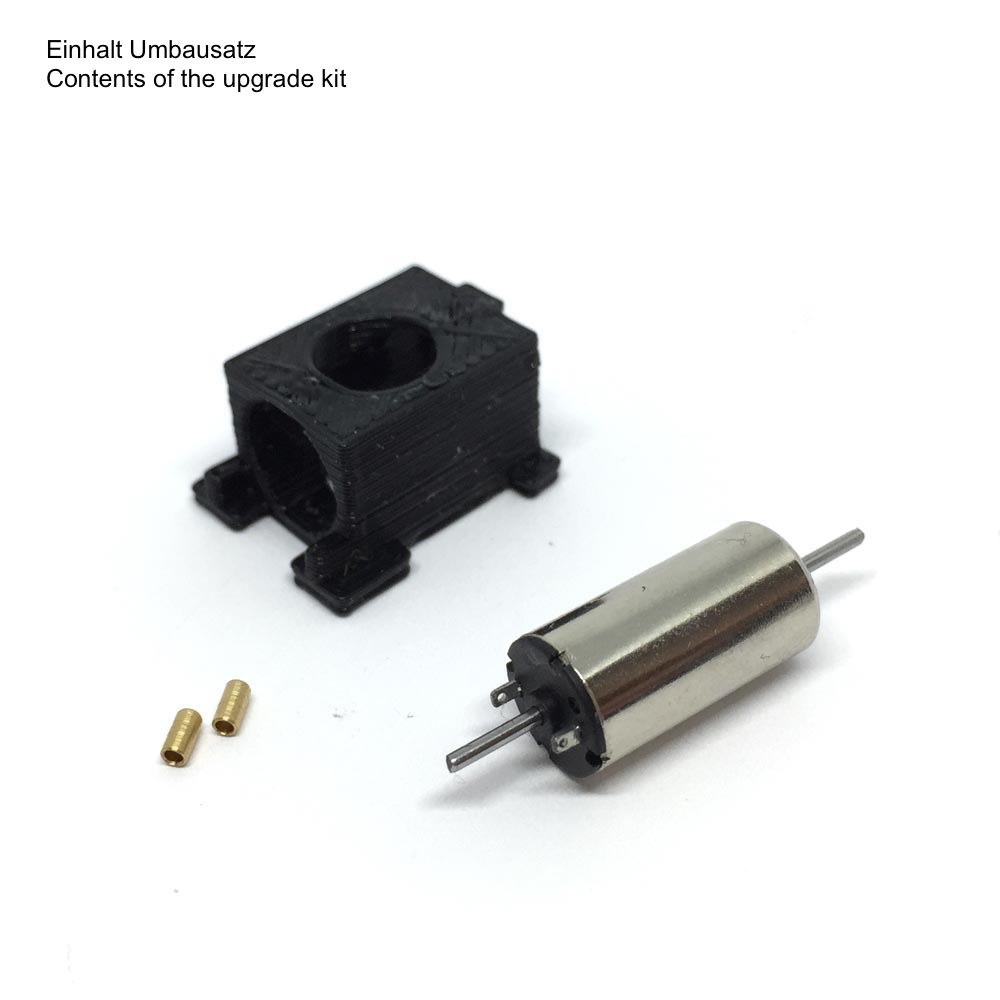

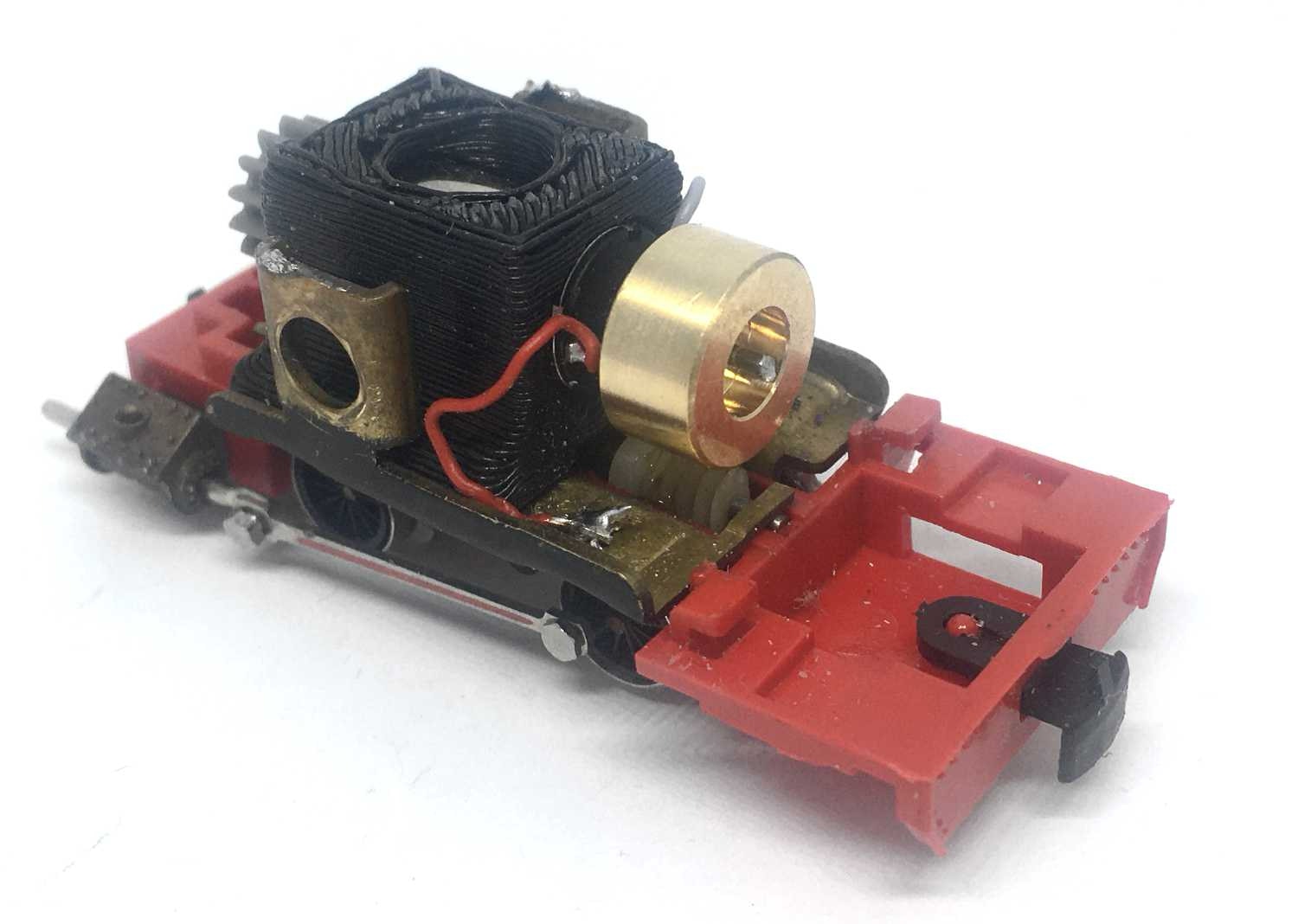

Egger-Bahn OEG ‘Feurige Elias’ upgrade kit

Motorupgradekit voor de bekende Egger-Bahn H0e locomotief.

Egger-Bahn OEG ‘Fiercy Elias’ upgrade kit

Motor upgrade kit for the well known Egger-Bahn H0e locomotive.

Currently, no new orders are taken.

Momenteel worden geen nieuwe bestellingen aangenomen.

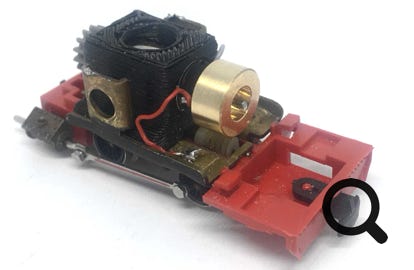

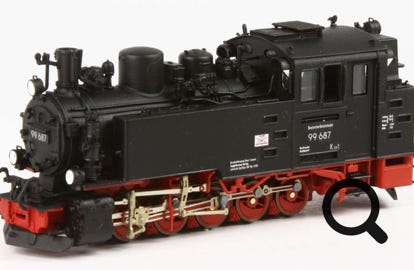

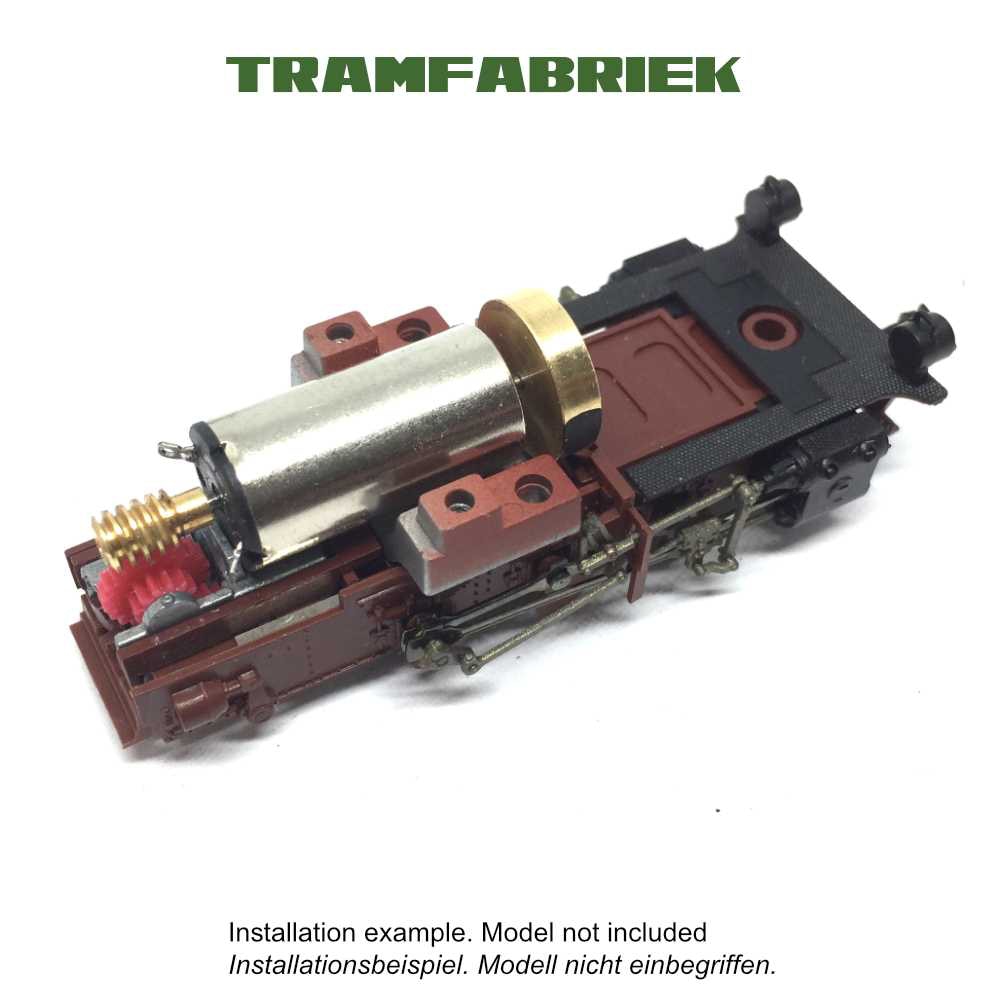

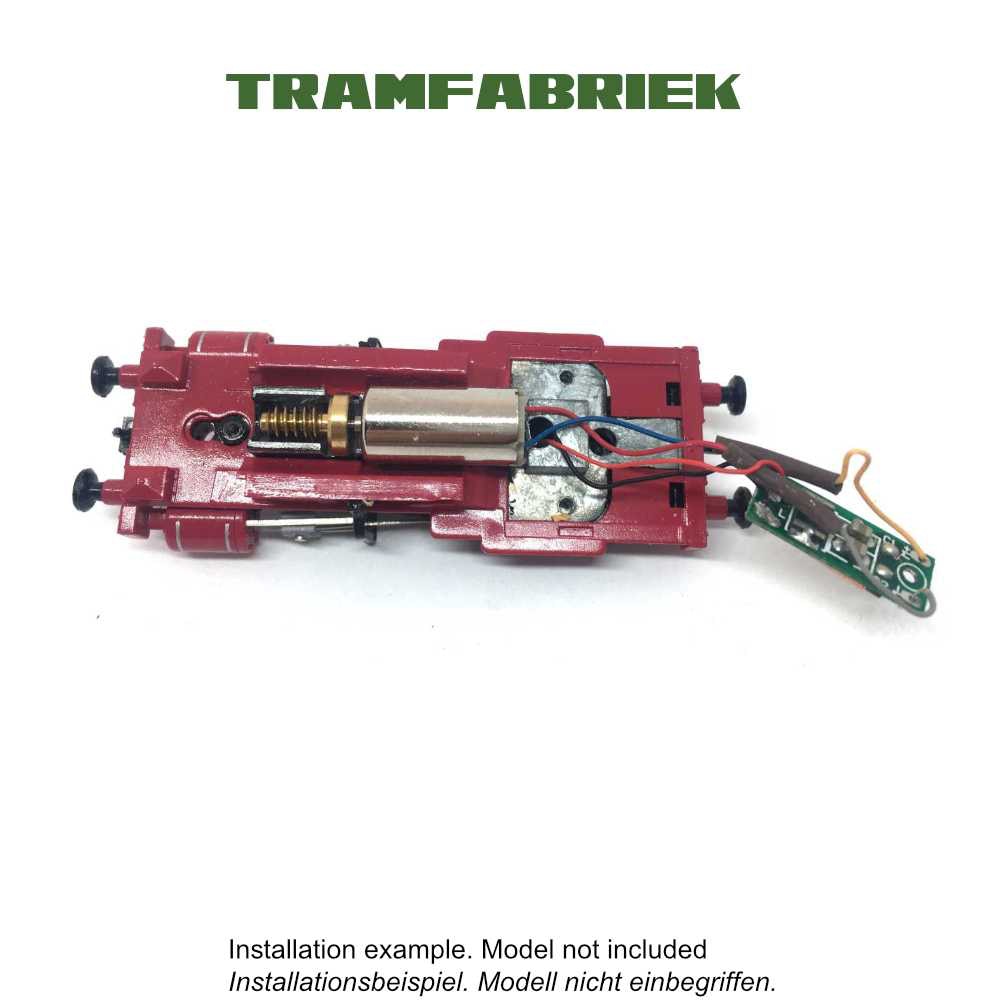

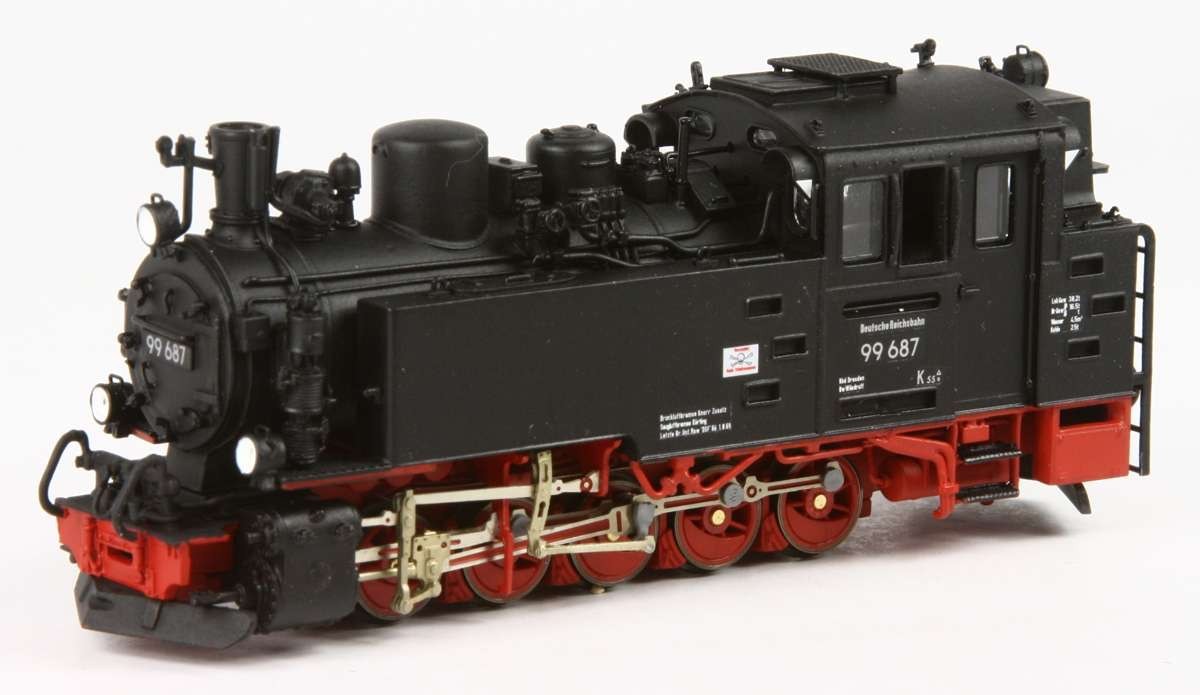

Bemo VI K/VII K H0e 1006/1008 series

Coreless motor conversion kit made for Bemo VI K/VII K H0e 1006/1008 series (without flywheel)

For example DR 99 651 or similar locomotives. Adapter box size  9.65 x 18 x19 mm.

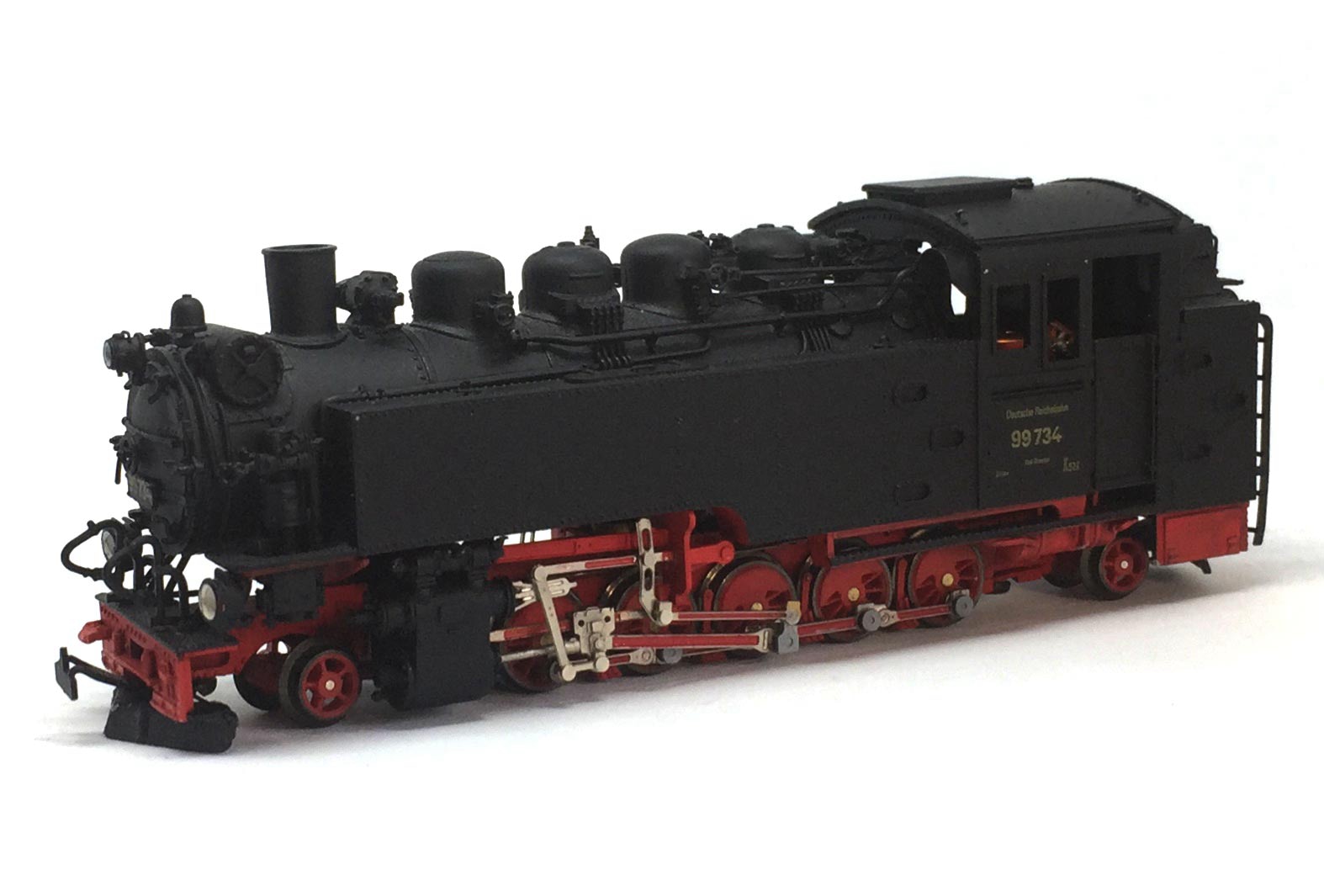

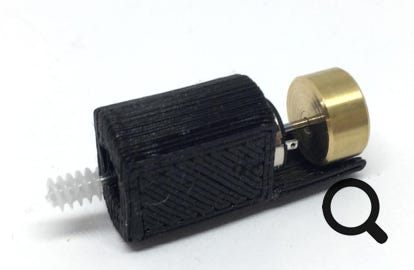

Bemo VI K/VII K H0e 1006/1008 series

(With flywheel)

Coreless motor conversion kit made for Bemo VII K H0e 1008 series (with flywheel)

For example DR 99 651 or similar locomotives. Adapter box size 9.65 x 18 x19 mm. Flywheel 10 x 5 mm (picture shows thinner flywheel than supplied with the kit)

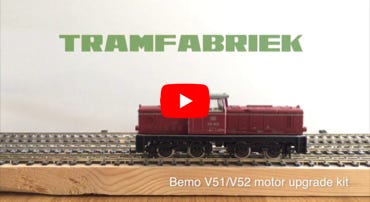

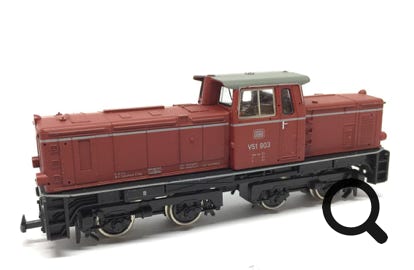

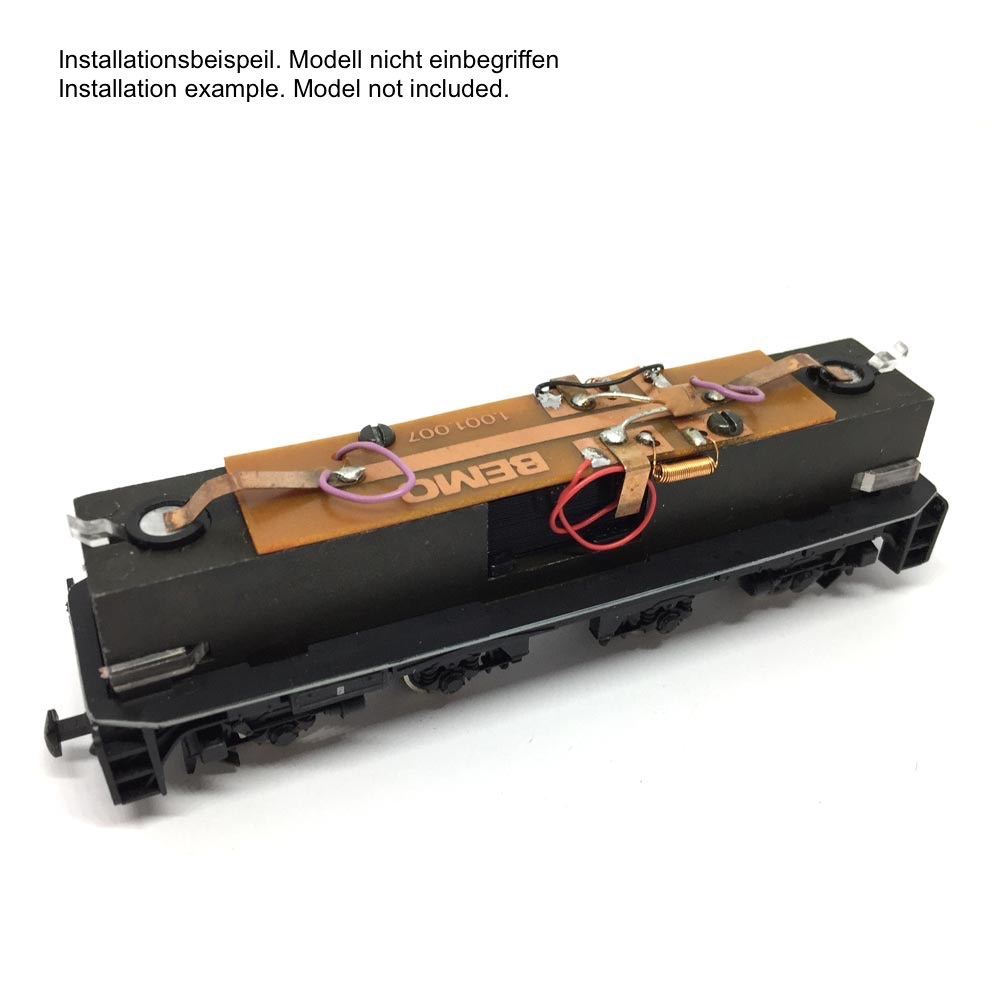

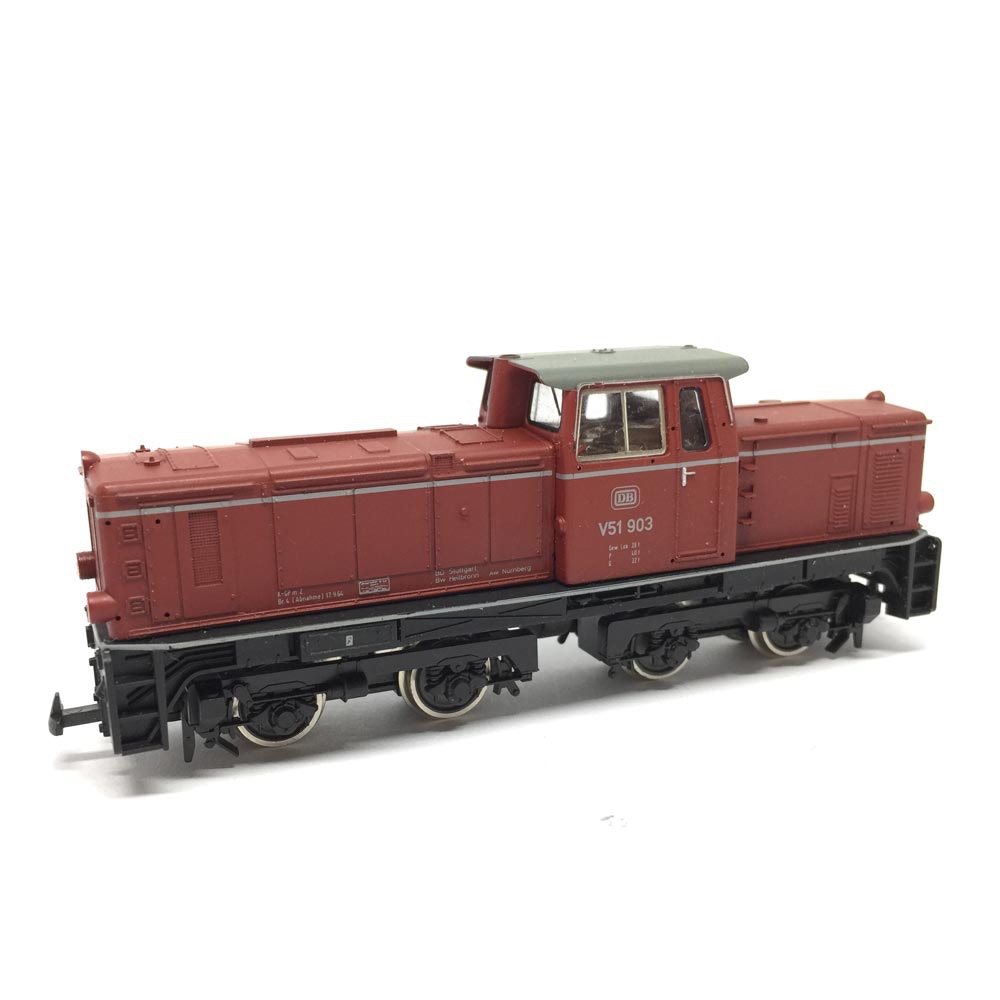

Bemo V51, V52, BR 251 series

Coreless motor conversion kit for Bemo V51, V52, BR 251 series

For H0e/m model. For example Bemo Art 1001/3, 1001 801 (V52 901), 1001 802 (V51 902), 1001 803 (V51 903), 1001 813 (251 903-1)

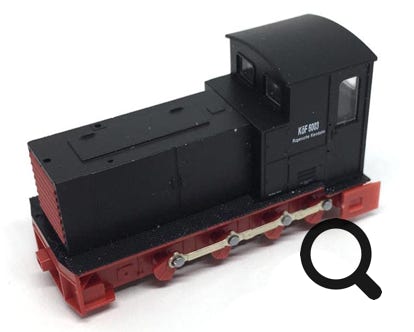

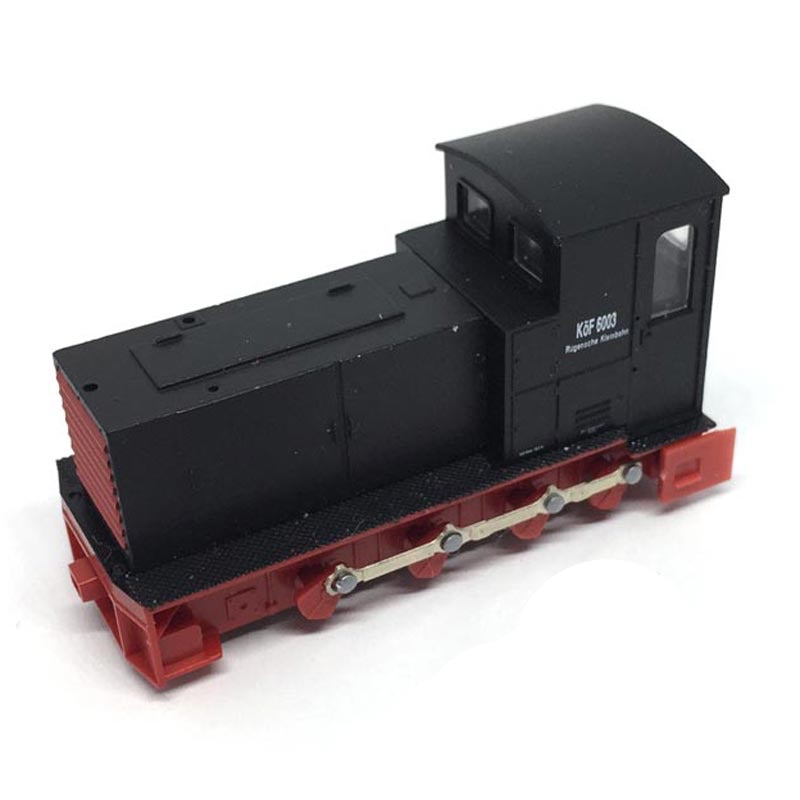

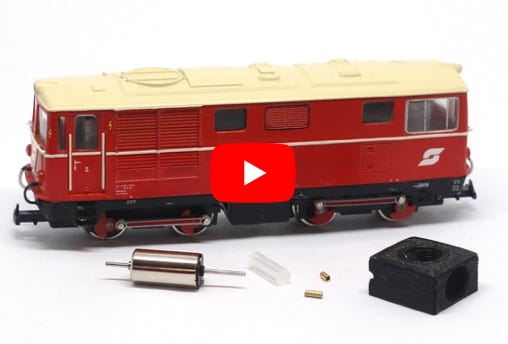

Bemo HF 130 c, V18, ÖBB 2092

Coreless motor conversion kit for Bemo HF 130 c, V18, ÖBB 2092

For H0e model. For example Bemo Art 1011962, 1011863, 1011852, 1011853, 1011854, 1011808, 1011971 (among others).

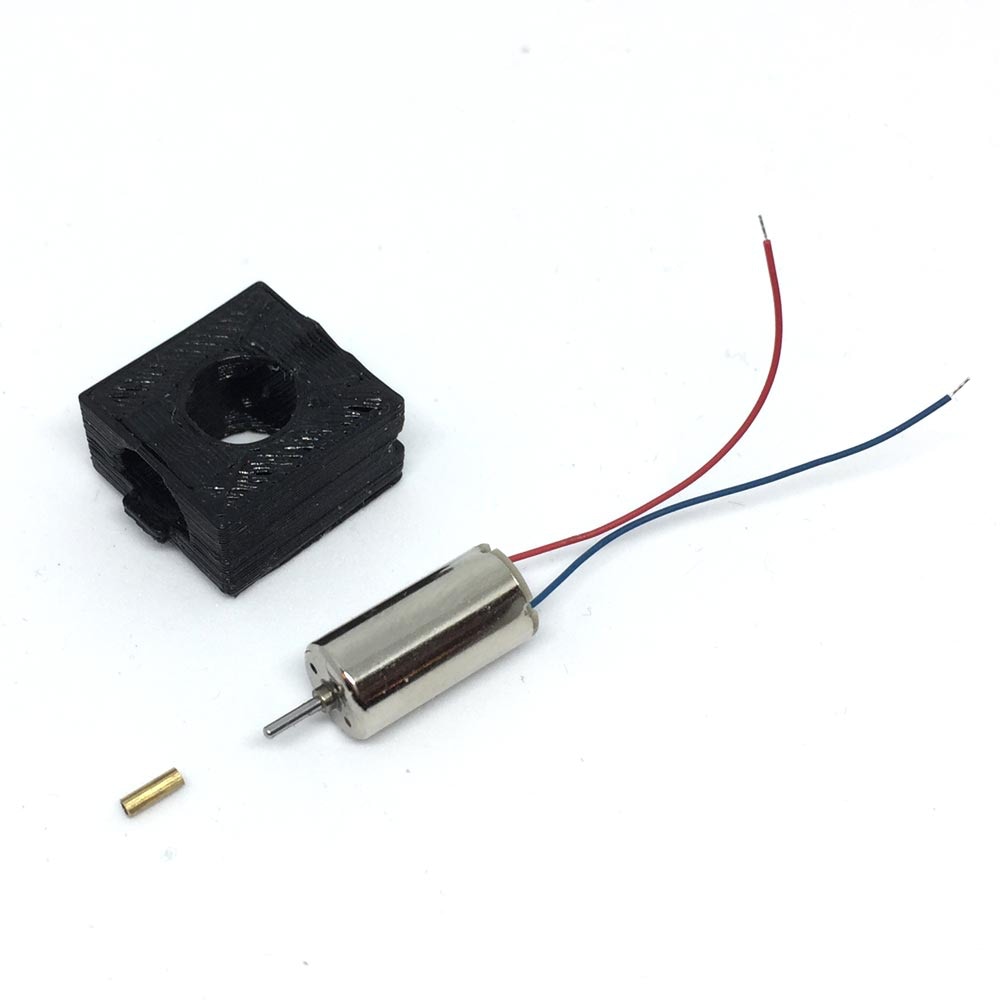

Contents of the kit:

1x 8x16 mm motor with one shaft

1x motor casing

1x brass adapter for original worm

Check if your frame looks similar >

Check if your frame looks similar >

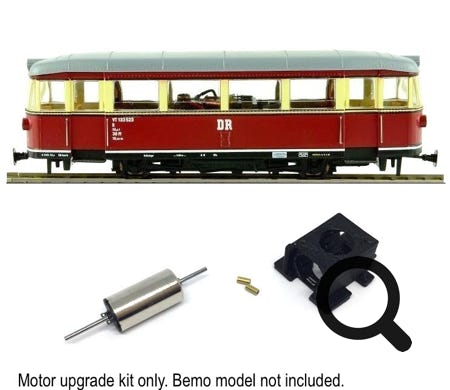

Bemo Wismar railbus (model without flywheel, wheelbase 46.2 mm)

BE1006-1   Coreless motor conversion kit

For H0e/H0m and H0 models. This is the first release version of Bemo, with longer distance between the axles (46.2mm) and no flywheel. For example Bemo Art 1609 906


Contents of the kit:

1x  8x16 mm motor with two shafts

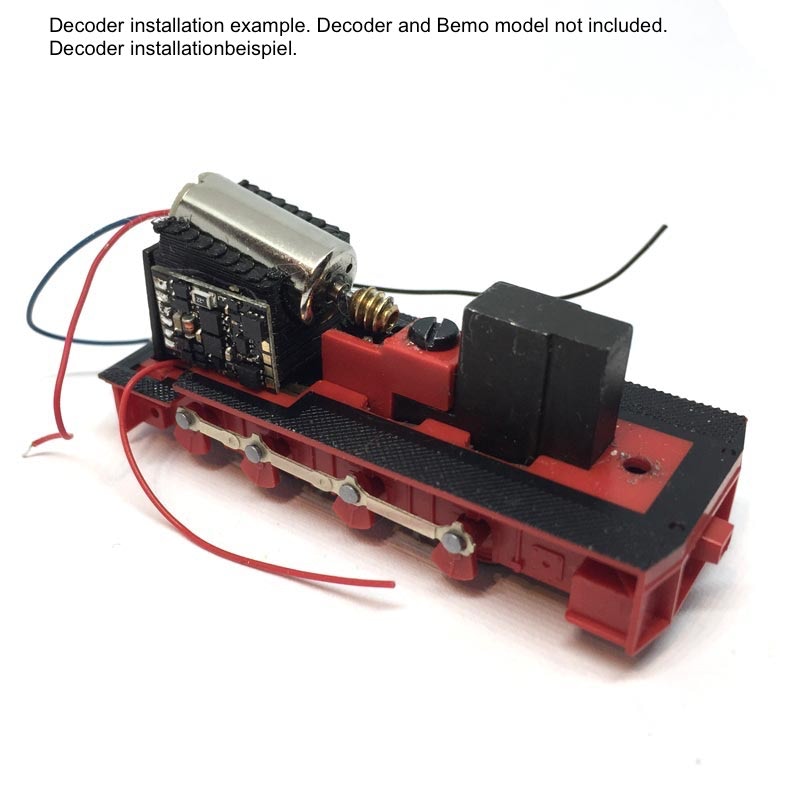

1x Motor casing with space for decoders on the side

2x plastic worms (POM)


This kit includes two worms, so you don’t have to remove the original ones from the motor!

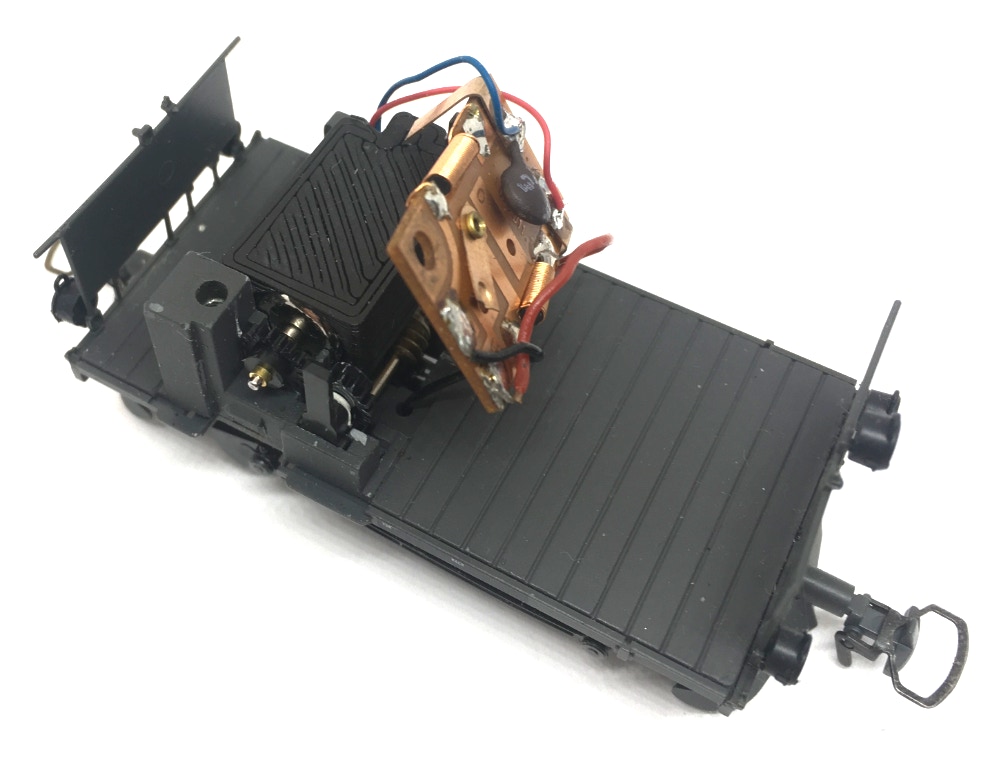

Bemo Wismar railbus (new frame, wheelbase 40.2 or 51.2 mm)

BE1006-2   Coreless motor conversion kit

For H0e/H0m and H0 models. This is the later, revised version. You can recognise it by the distance between the axles of 40.2 mm or 51.2 mm and (in later models) a flywheels inside.  Check pictures to compare. For example Bemo Art 1009, 1209, 1609.


Contents of the kit:

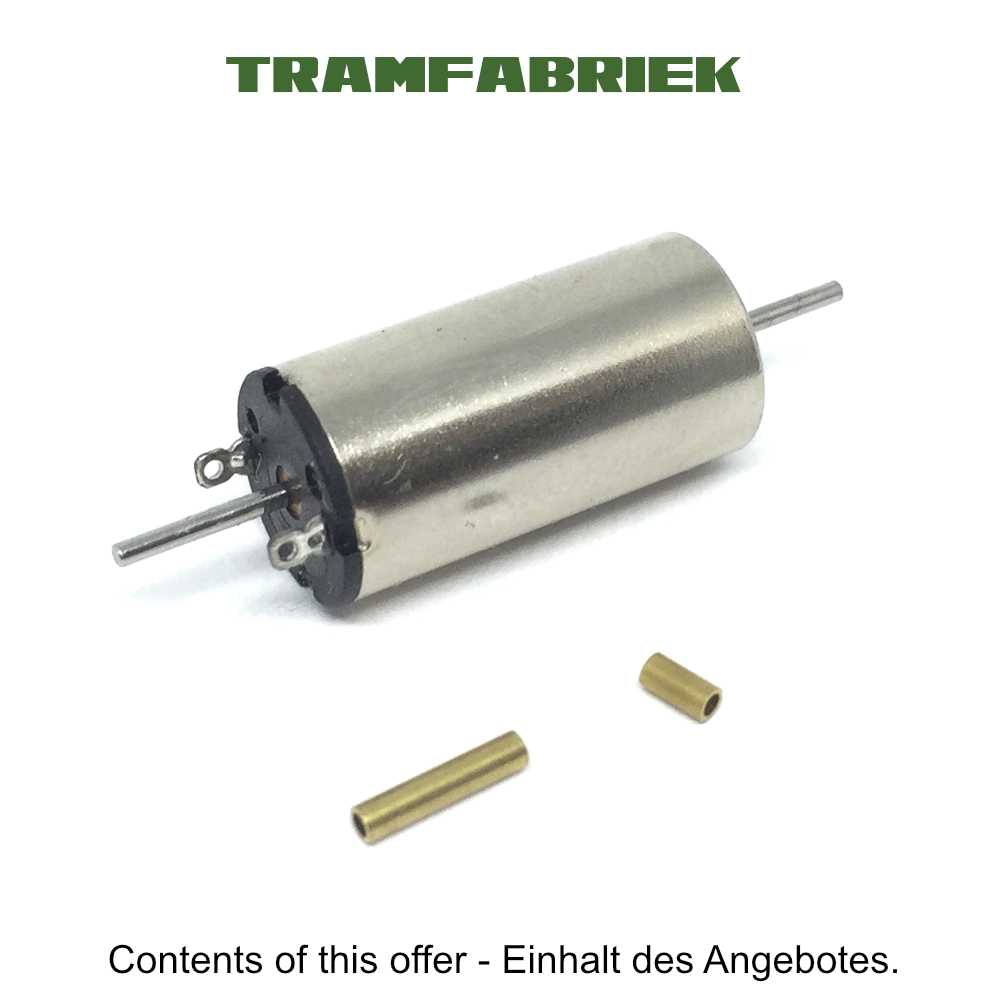

1x 8x16 mm motor with two shafts

1x motor casing

2x brass adapters for worm/flywheel

Installation manual will be published soon

Bemo Fliegender Spreewalder

BESPREE   12V Coreless motor conversion kit

For H0e/H0m models.. For Bemo Art 1233 833, 1233 813.


Contents of the kit:

1x 8x16 mm motor with two shafts

1x motor casing

2x brass adapters for worm/flywheel

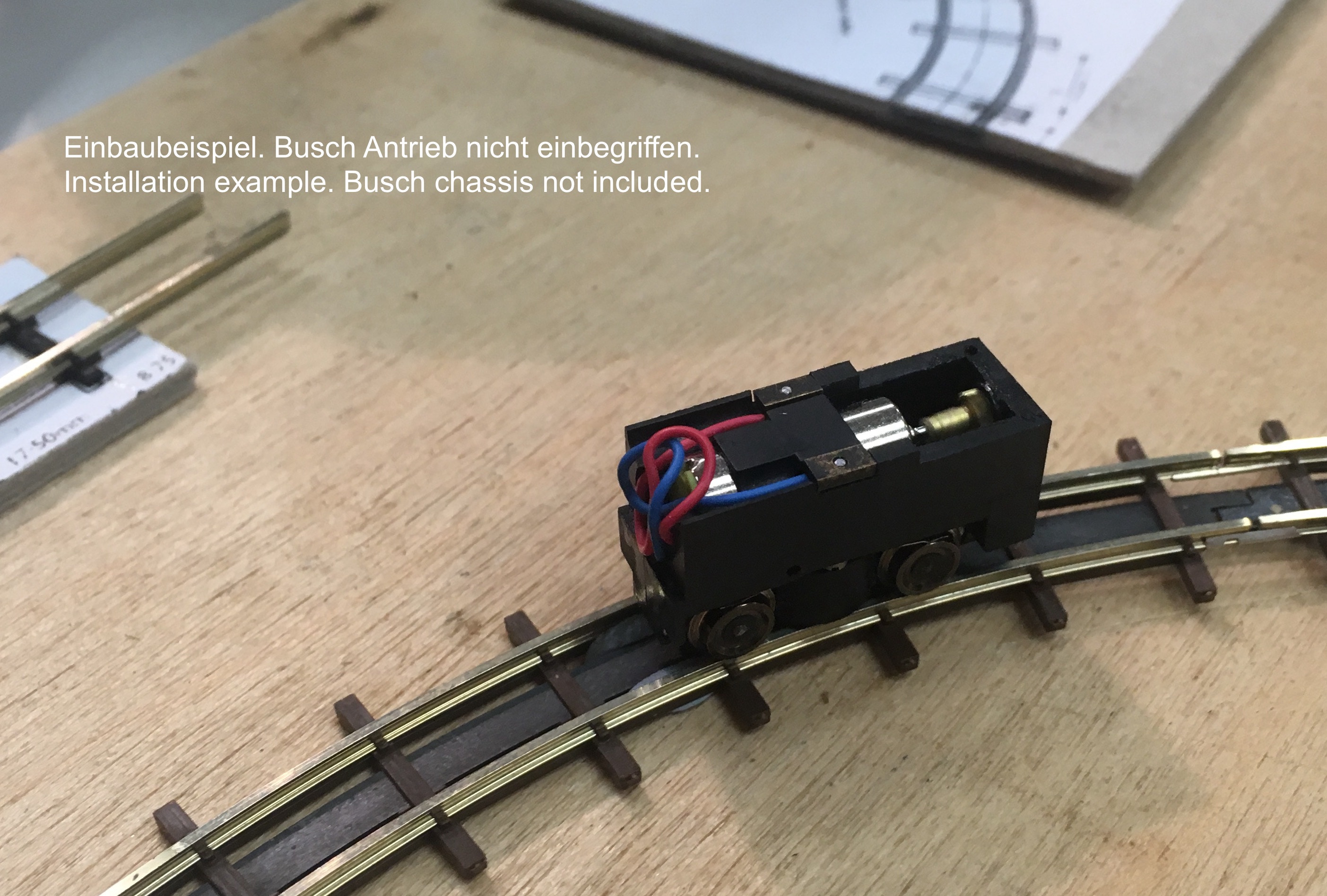

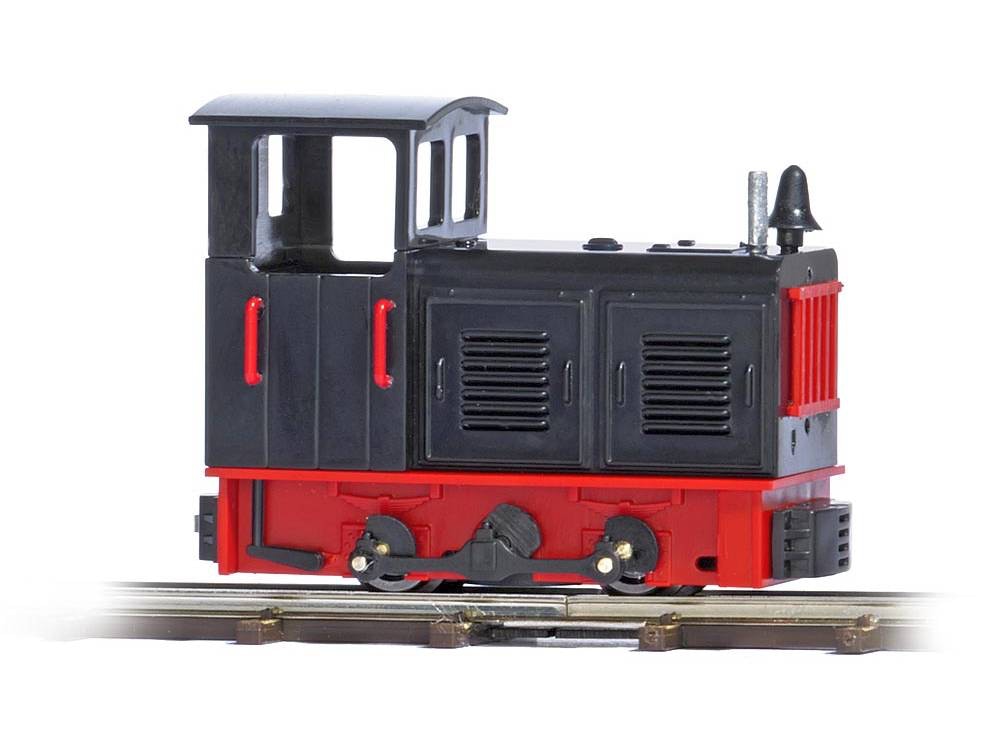

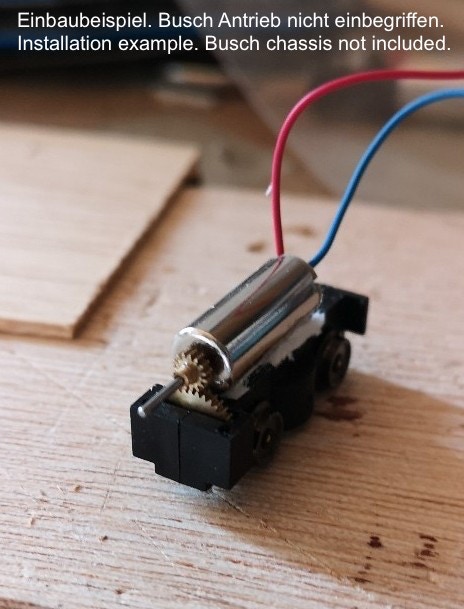

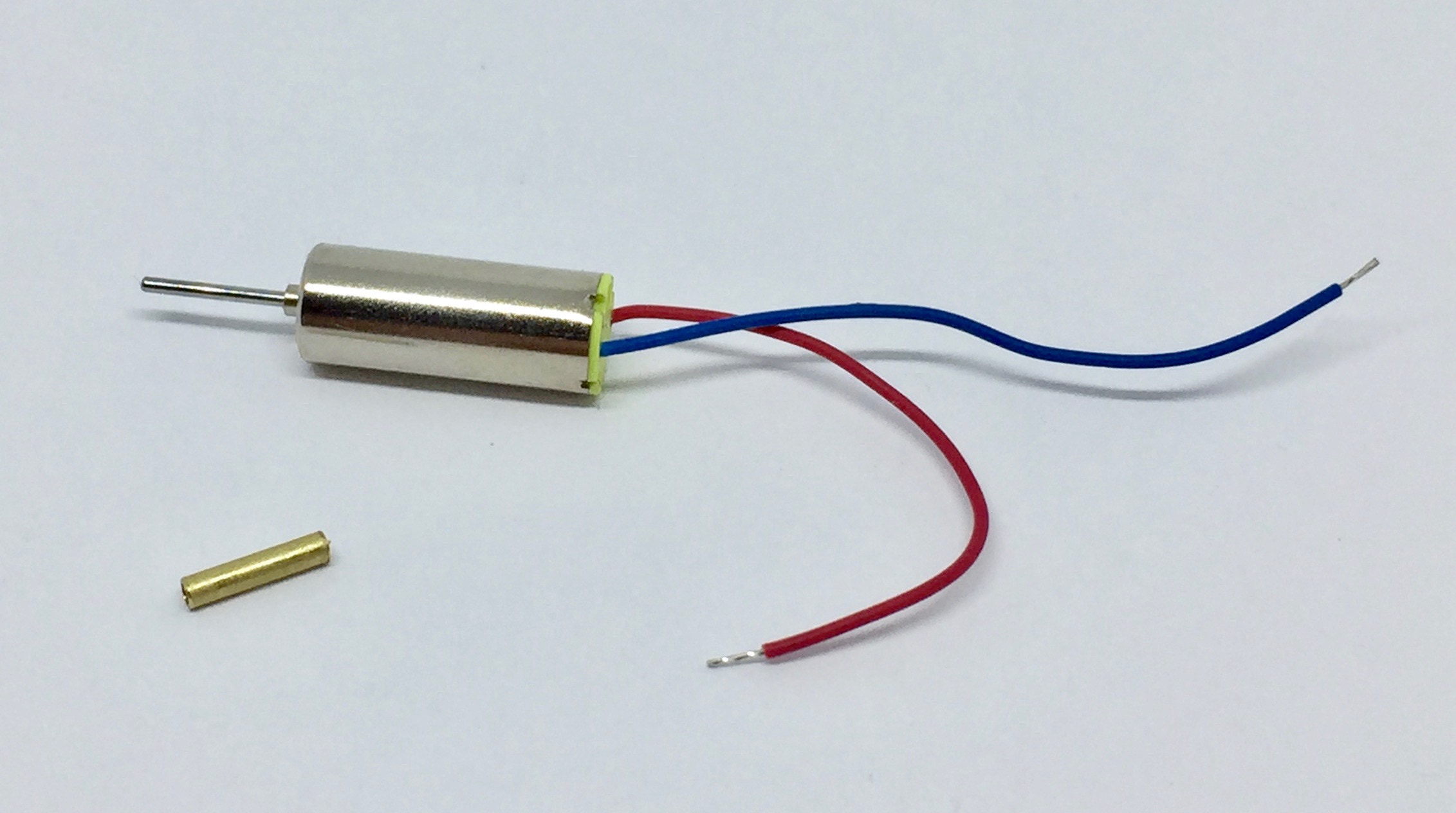

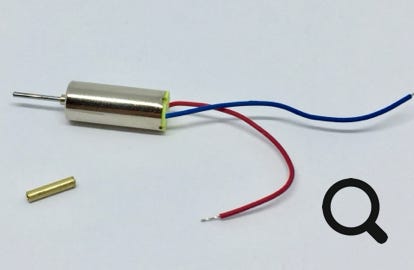

12V coreless motor replacement for any Busch H0f model

Works great on both 3V and 12V systems.

The kit includes:

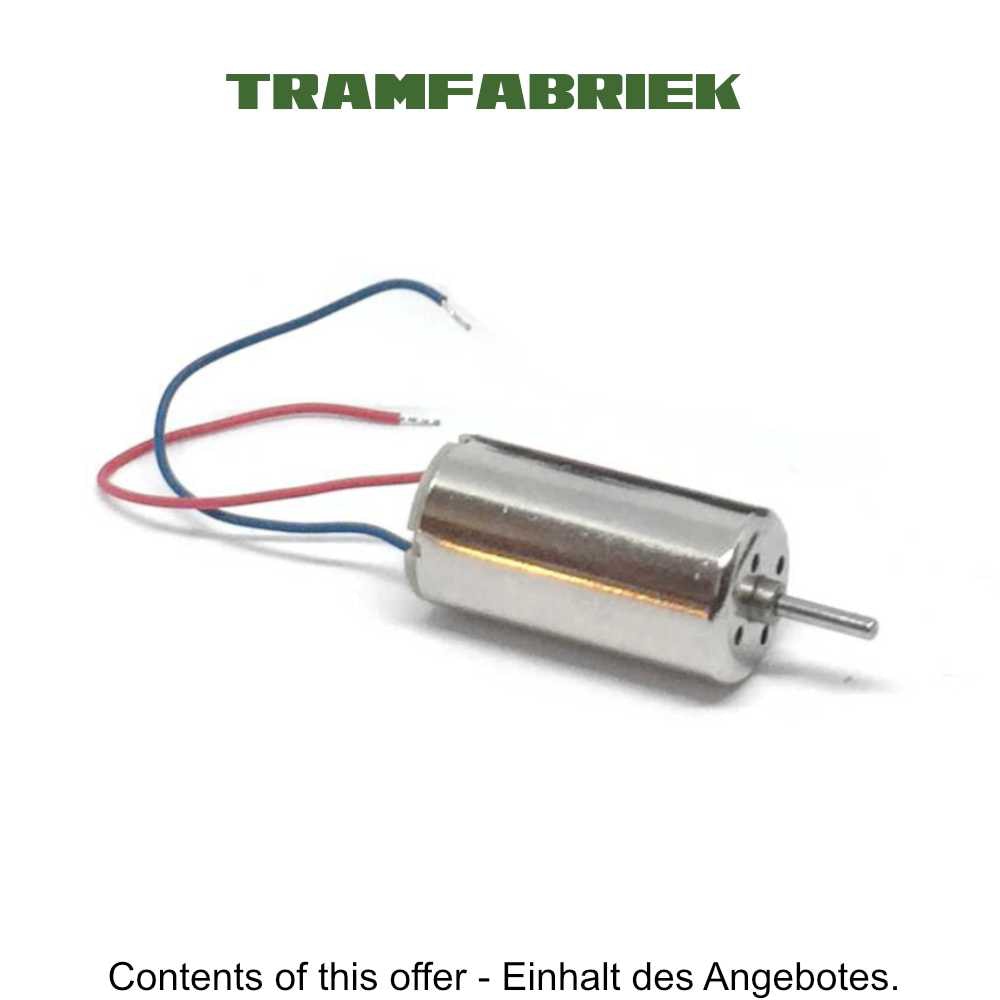

1 x 12V coreless 6x15mm motor with 1 shaft (Ø 0.8mm)

1 x Motor adapter ID 0.8 mm OD 1.5 mm L 5mm


ATTENTION!! Busch motor chassis NOT included!

Kato

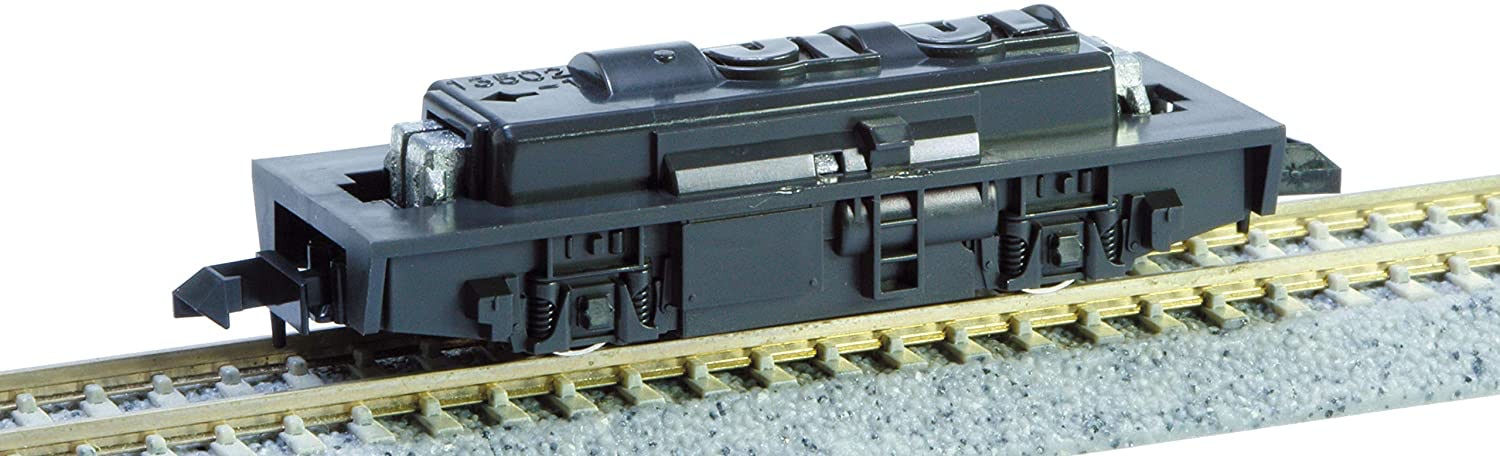

Kato 11-109

Replacement of 11-103.

With factory installed coreless motor and flywheel.

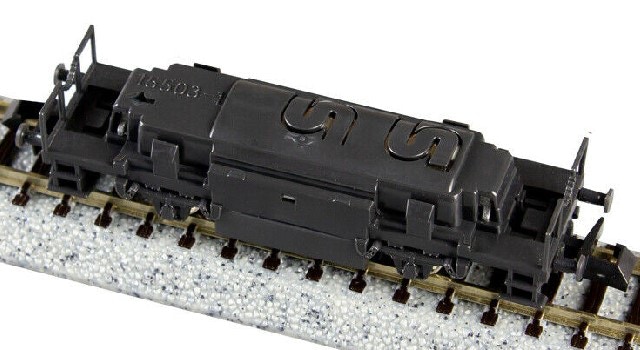

Kato 11-110

Replacement of 11-104.

With factory installed coreless motor and flywheel.

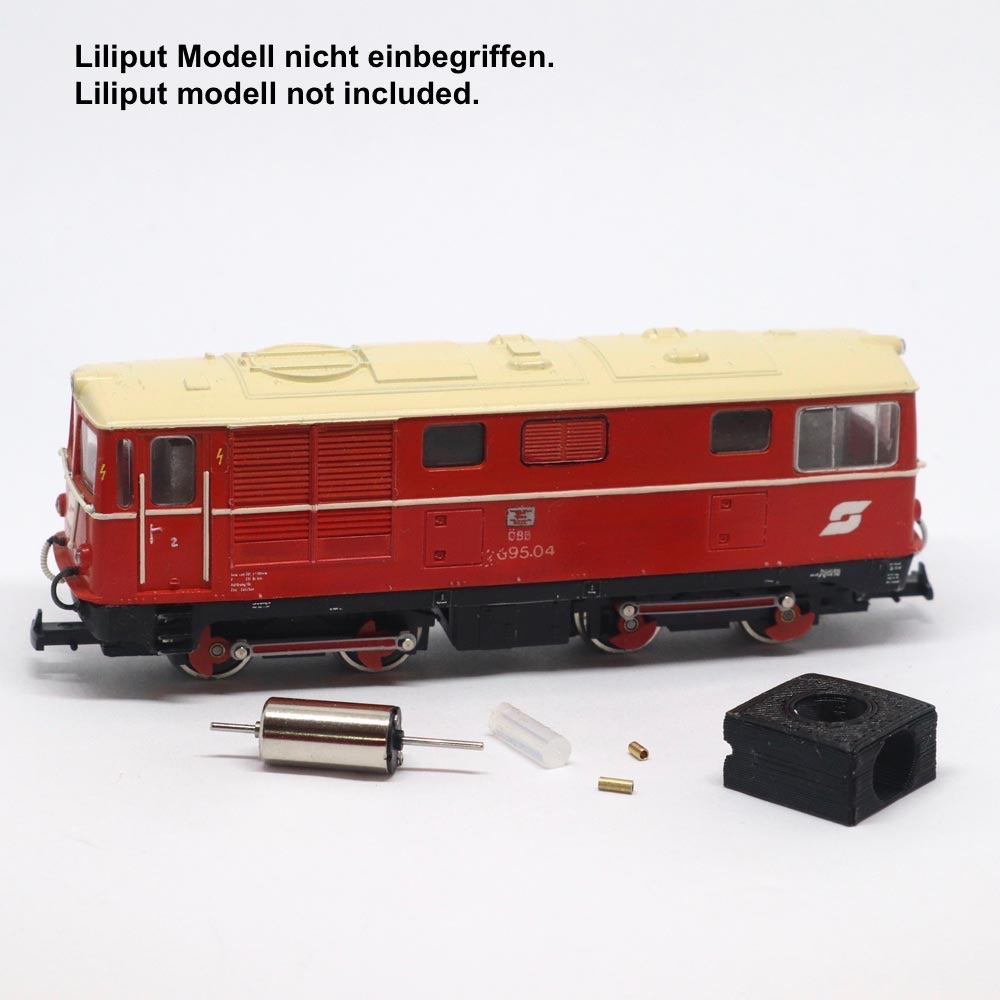

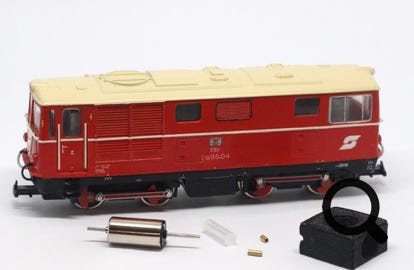

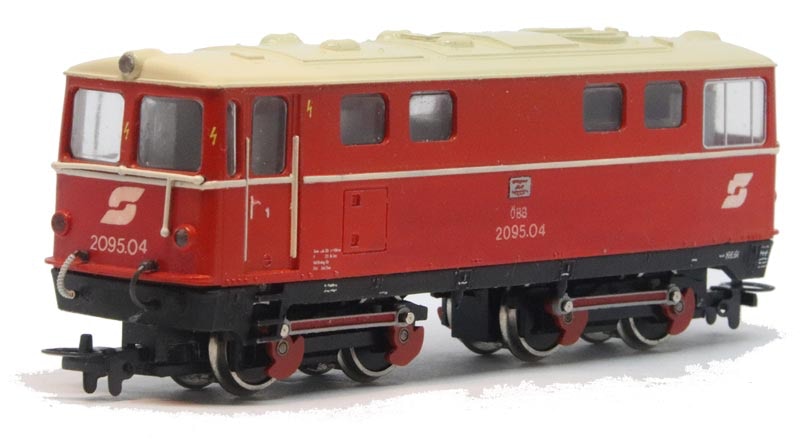

Coreless motor conversion kit for Liliput 2095

Contents of the kit:

1 x 12V coreless motor with 2 shafts

1 x Motor adapter casing

2x brass adapter tube

1 x silicone tube (ca 10 mm)


ATTENTION!! Liliput model and gears NOT included!

Counterweights to replace broken/missing parts

Contents of the kit:

4 x Resin counterweights for Liliput ÖBB 2095 (unpainted. Paint advise Vallejo Flat Red 70.957, 031 then finish with satin varnish)

4 x Pin to attach coupling rod.


Will work with original pins. For this, easily drill pin hole out with 0.75mm drill by hand.

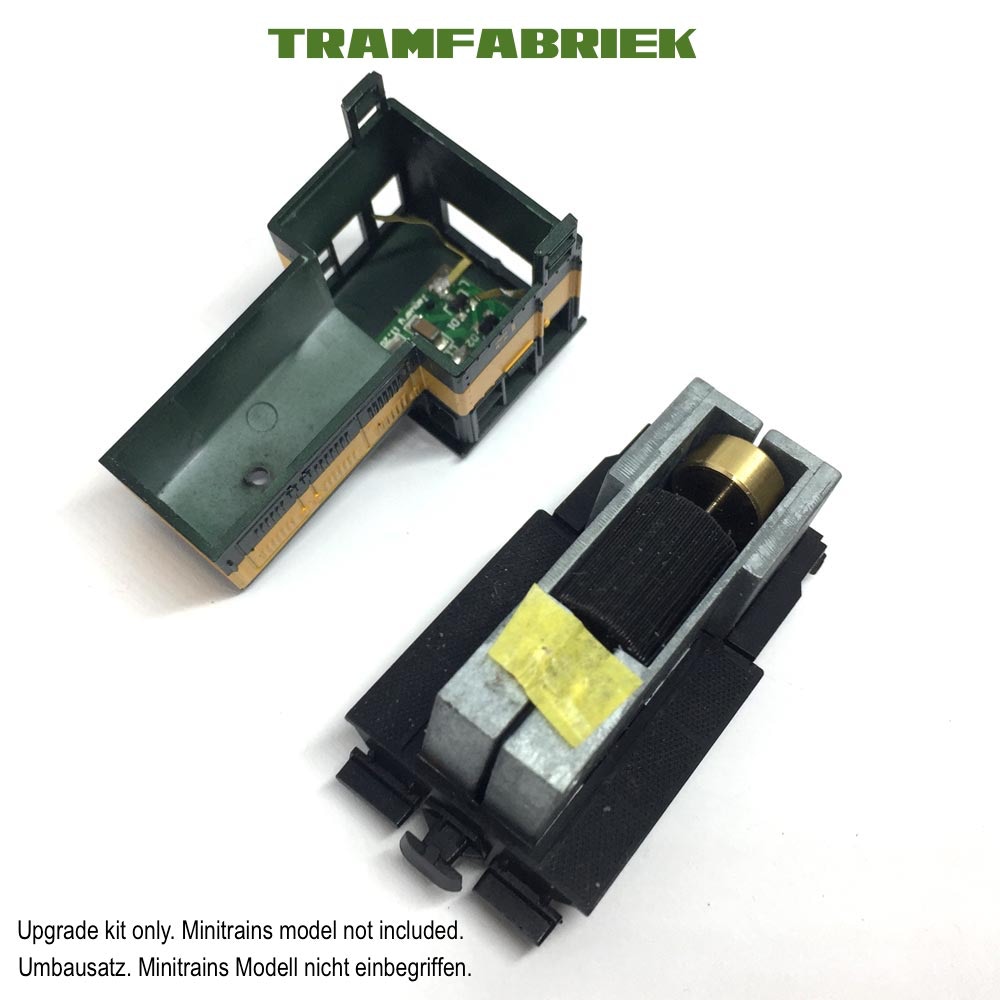

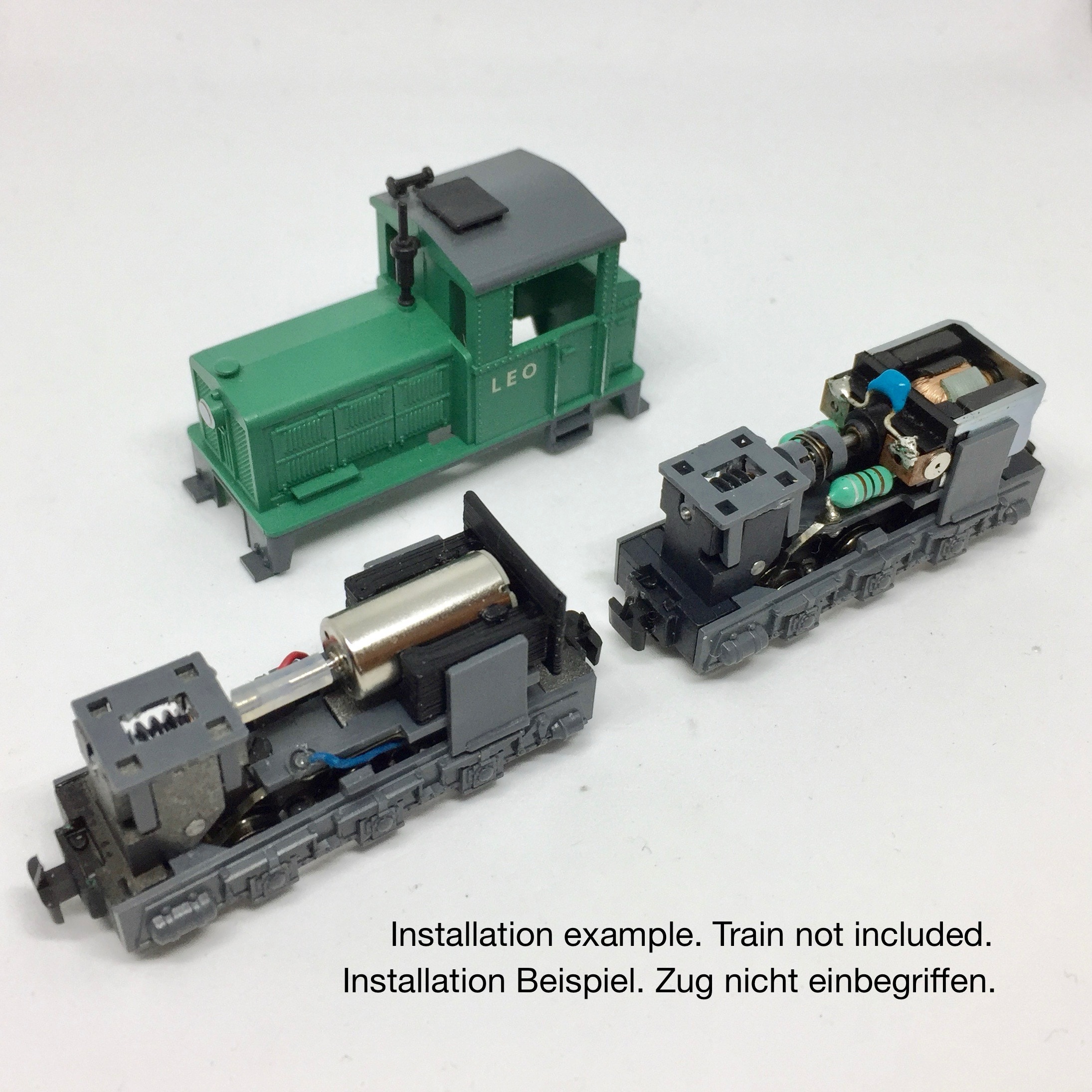

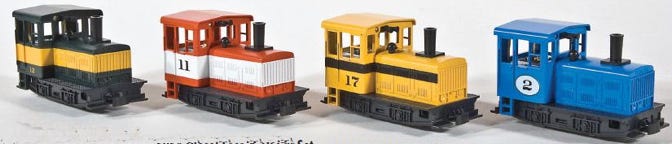

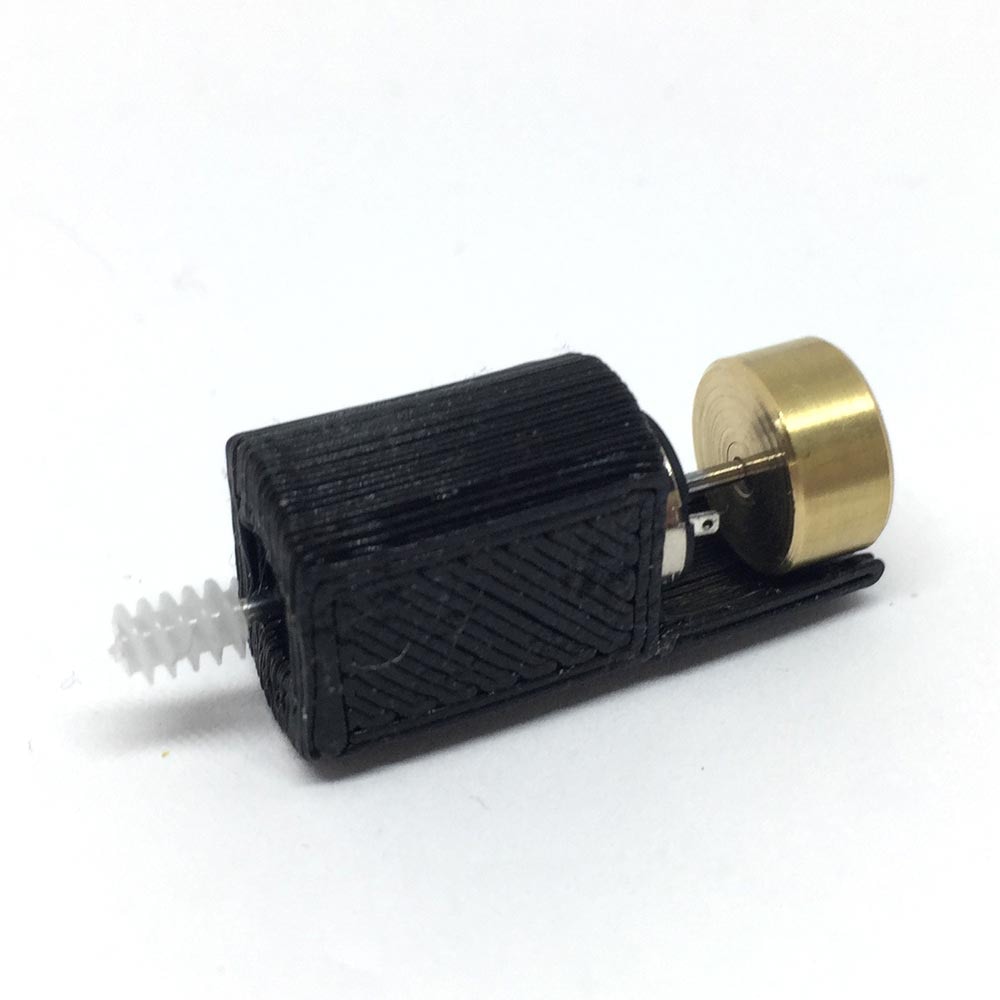

Coreless motor conversion kit for Minitrains Plymouth

Contents of the kit:

1 x 12V coreless motor with 2 shafts

1 x Motor adapter casing

1x Worm

1 x Flywheel


ATTENTION!! Minitrains model NOT included!

Motor specifications

Specifications 0816S:

Diameter casing: 8 mm

Length: 16 mm

Axle diameter: 1 mm

Axle length: 5 mm

Min RPM: 400

No load speed: 13,000

No load current: 6 mA

Rated speed: 11,500

Rated current: 30 mA

Rated torque: 3g.cm

Stall torque: 14.5g.cm

Stall current: 0.21 A

Specifications 0816D:

Diameter casing: 8 mm

Length: 16 mm

Axle diameter: 1 mm

Axle length front: 10 mm

Axle length back: 7.5 mm

Min RPM: 400

No load speed: 13,500

No load current: 5 mA

Rated speed: 12,300

Rated current: 30 mA

Rated torque: 3g.cm

Stall torque: 14.5g.cm

Stall current: 0.15 A

Voor alleen klokankermotors klik hier - For coreless motors only, click here.
