Conversion Bemo Wismar Railbus

to 12V coreless motor

Revision B

Revision C

Question? Just reach out!

Fits Bemo Art 1609

How to distinguish: No screws in interior

Fits Bemo Art 1009 915

How to distinguish: 1 screw holding down electronics board

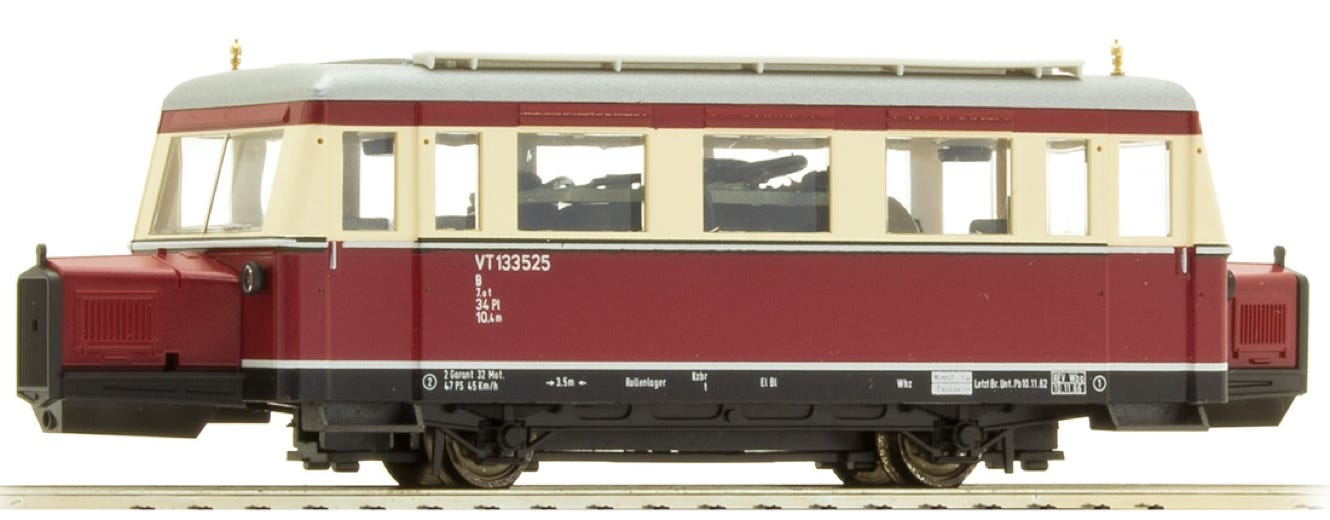

Fits Bemo Art 1009 935

How to distinguish: 3 screws holding down electronics board.

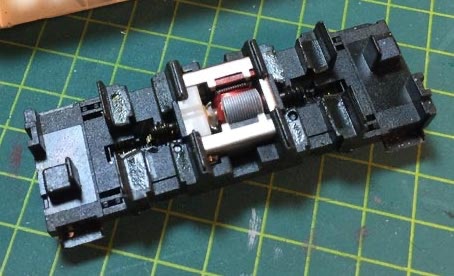

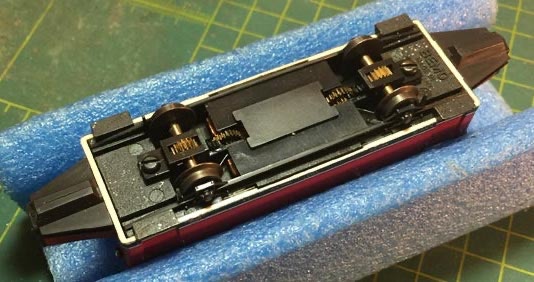

BEWISM-A   Coreless motor conversion kit

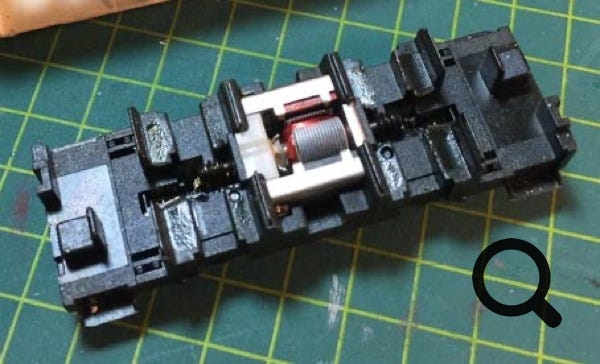

For H0e/H0m and H0 models. This is the first release version of Bemo, with longer distance between the axles (46.2mm) and no flywheel. For use with for example Bemo Art 1609


Contents of the kit:

1x  8x16 mm motor with two shafts

1x Motor casing with space for decoders on the side

2x plastic worms (POM)


This kit includes two worms, so you don’t have to remove the original ones from the motor!

For installation instructions, follow the instructions for the Bemo Spreewalder railbus.

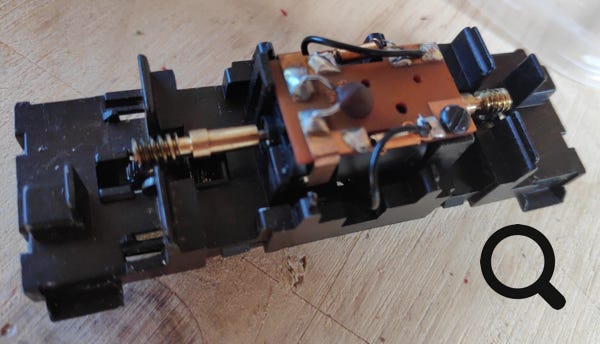

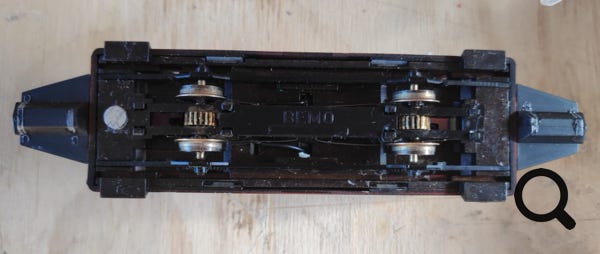

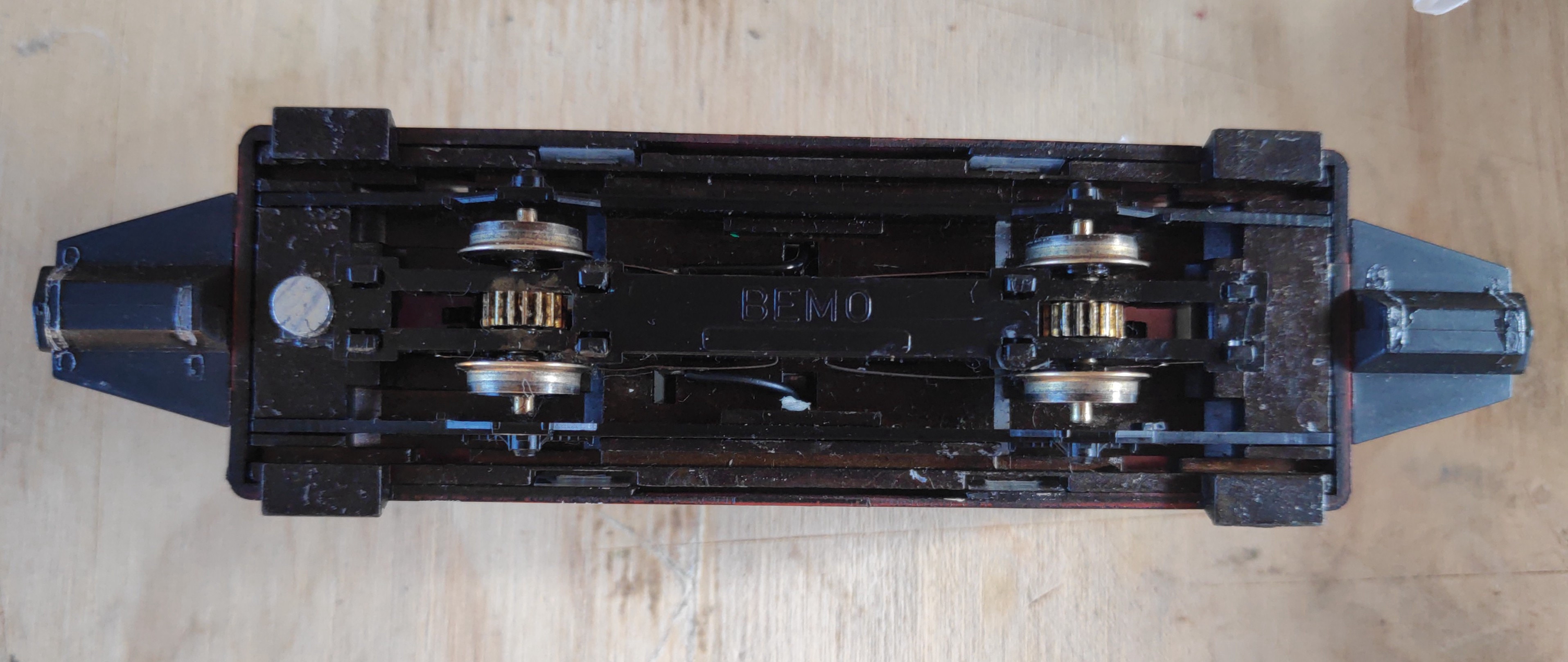

BEWISM-B   Coreless motor conversion kit

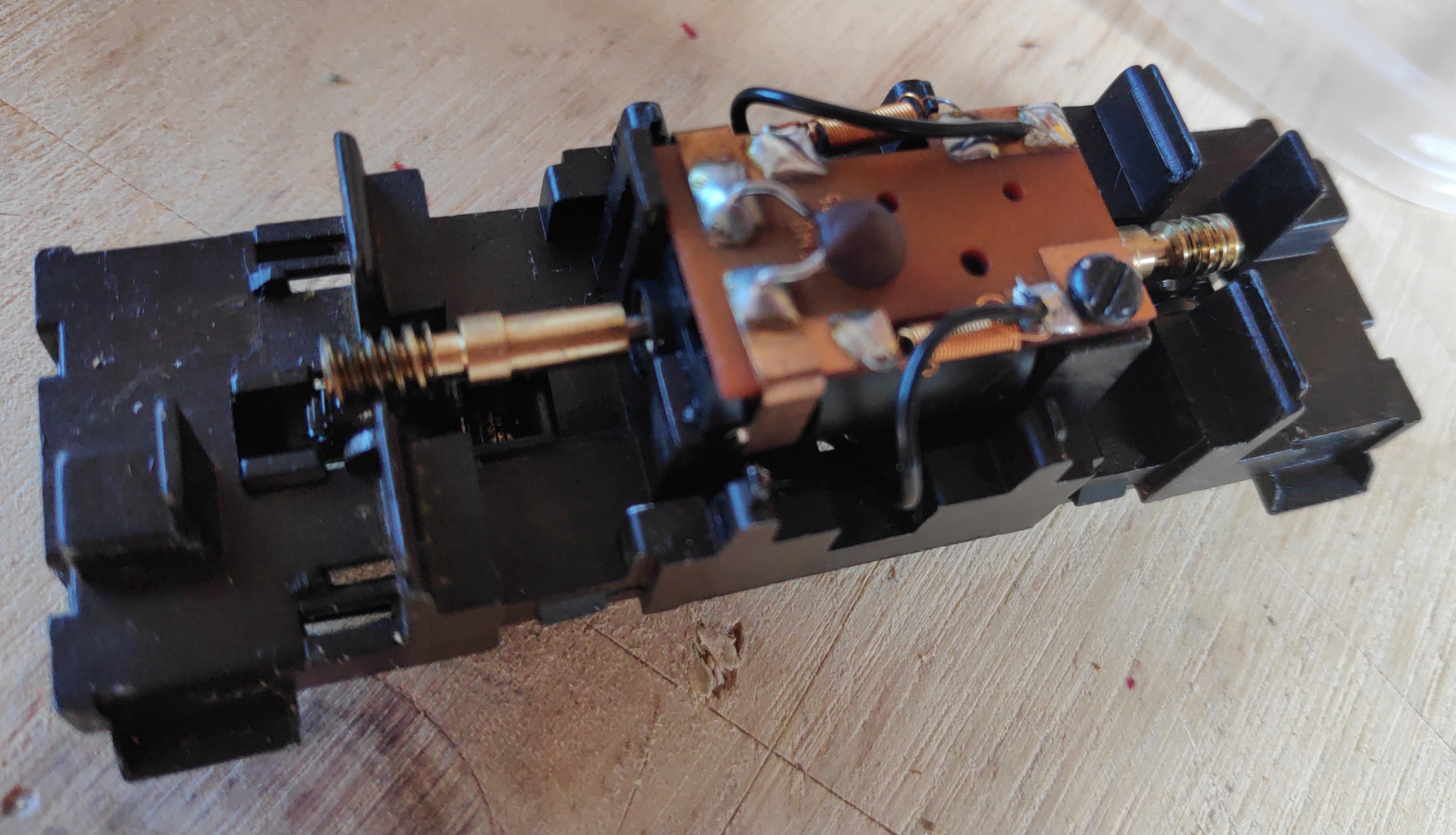

For H0e/H0m and H0 models. This is the second revised version. You can recognise it by the distance between the axles of 40.2 mm or 51.2 mm and (in later models) and, as far as we know, it did not came with a flywheel.  Check pictures to compare. For use with for example Bemo Art 1009 915.


Contents of the kit:

1x 8x16 mm motor with two shafts

1x motor casing

2x brass adapters for Bemo worms

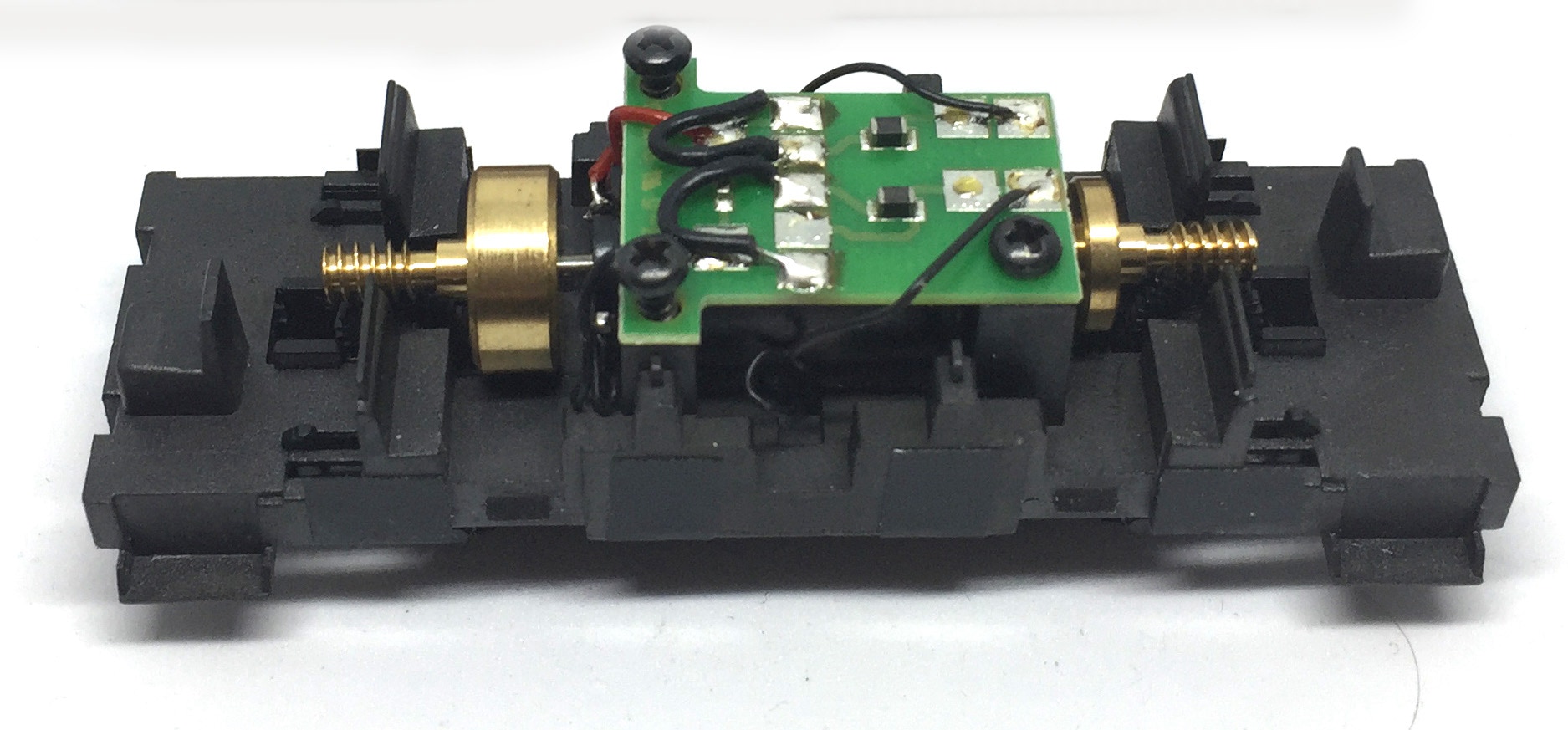

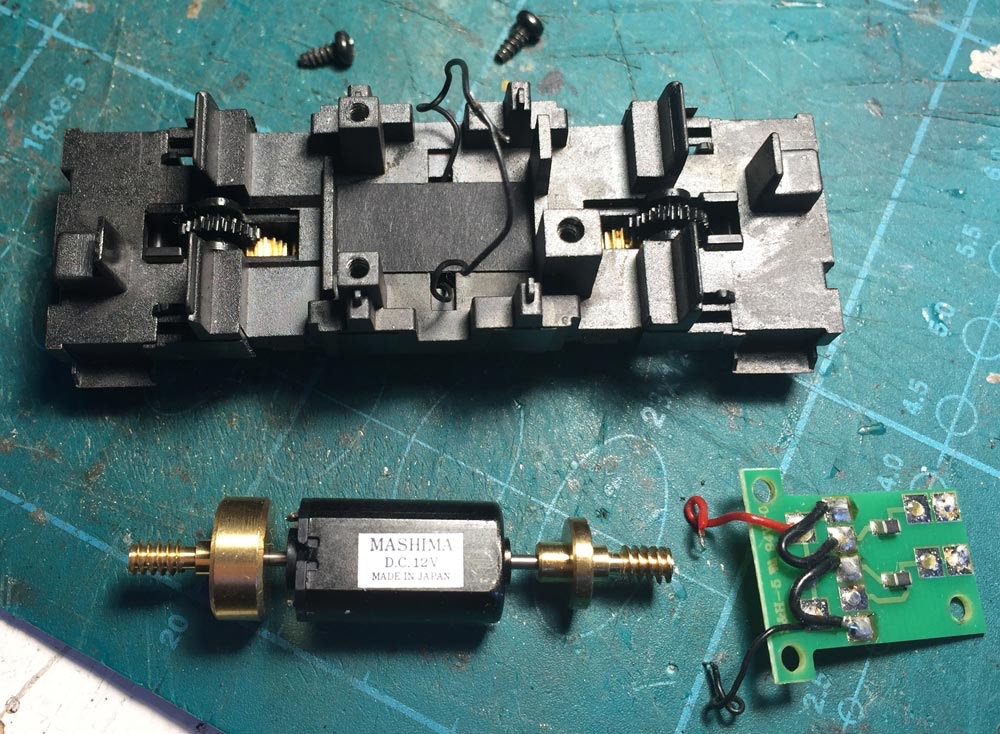

BEWISM-C   Coreless motor conversion kit

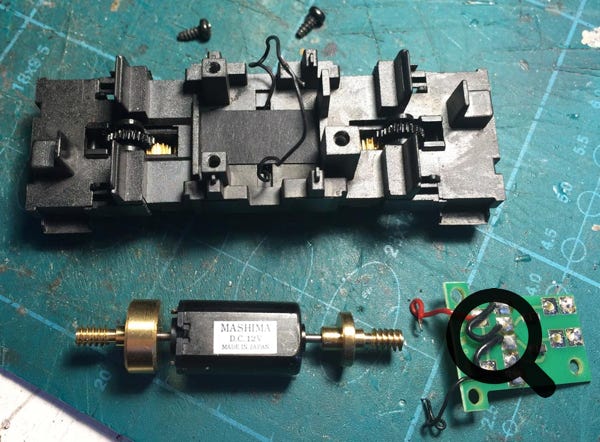

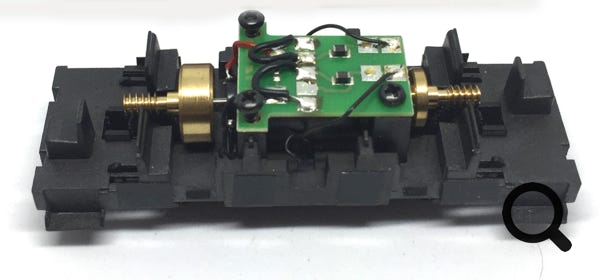

For H0e/H0m and H0 models. This is the later, revised version. You can recognise it by the distance between the axles of 40.2 mm or 51.2 mm and (in later models) a flywheels inside.  Check pictures to compare. For use with for example Bemo Art 1009 935.


Contents of the kit:

1x 8x16 mm motor with two shafts

1x motor casing

2x brass adapters for Bemo worm/flywheel
