Locomotive decoders

Function decoder

Train-O-Matic function decoders

The new Micro function decoder by Train-O-Matic, is a welcome addition to the Lokommander II decoder line-up. Its small size of 13 x 9.3 mm and 6 pin connection, make it suitable for many small coaches. The new Micro function decoder is available in different versions, so you can add digital functionality to any coach or car of any age.


On the 6 solder pads there are the track and the classic FL/RL (Out1/Out2) connections, which are 100 mA current capable power outputs. A great feature for power back up are the solder pads for direct connection of external capacitors (25Vdc capacitors are advised, it is not necessary to use higher voltage capacitors). On the opposite side there are 4 logical outputs, capable to drive directly 4 LEDs, without the need of series resistors. There are many light effects for the LEDs to choose from.


Also on the board are Vcc and GND connection pads. If the Train-O-Matic SPP or SPP-N (Powerpack) is used, it has to be connected to the Vcc and GND solder pads and one of the logical outputs must be sacrificed to control the power pack (Charge). The SPP control can be configured in the CVs.


The size of the decoder will allow the usage in N scale, for example with the Train-O-Matic Shine Plus Mini Digi light strips. And of course, the decoder has full RailCom capabilities. A version is available as RailCom transmitter, with only 2 wires connected to the rails.

Manual (draft version)

THESE FUNCTION DECODERS DO NOT CONTROL THE MOTOR!!! ONLY LIGHT AND OTHER NON-MOTOR FUNCTIONS!

(Get your motor decoders by clicking here)

Micro Function Decoders

Size of all function decoders: 13 x 9.3 mm

Function Decoders with pins

Full name

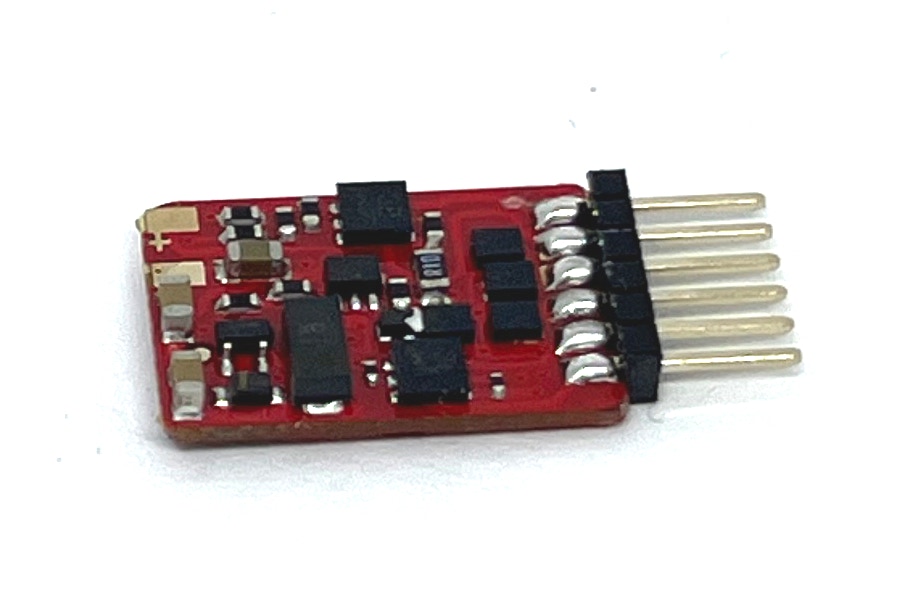

FD Micro 6P

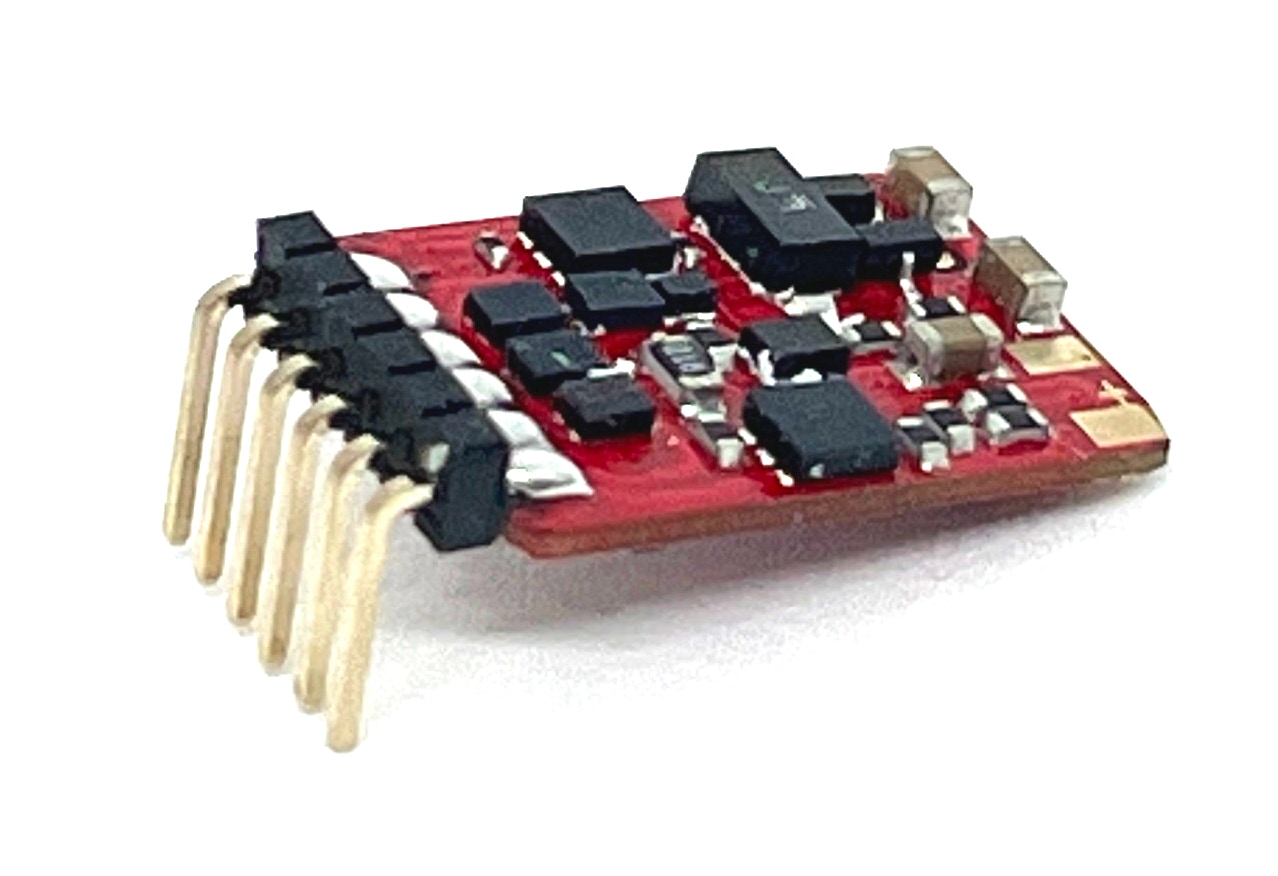

FD Micro 6P90

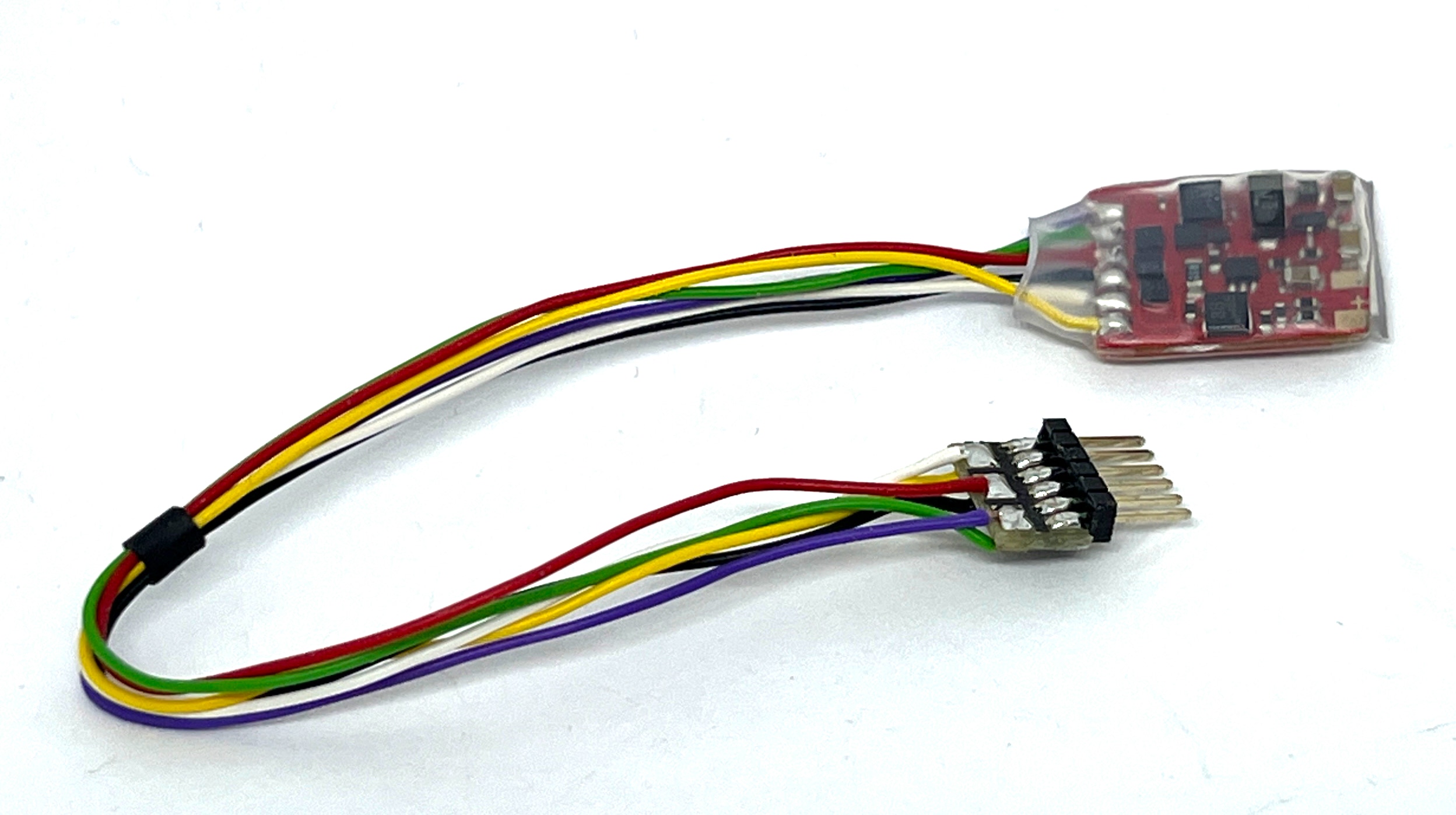

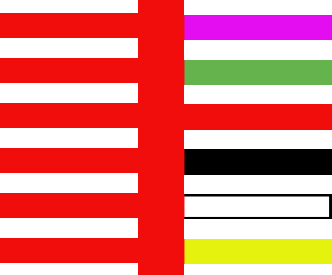

FD Micro 4W6P

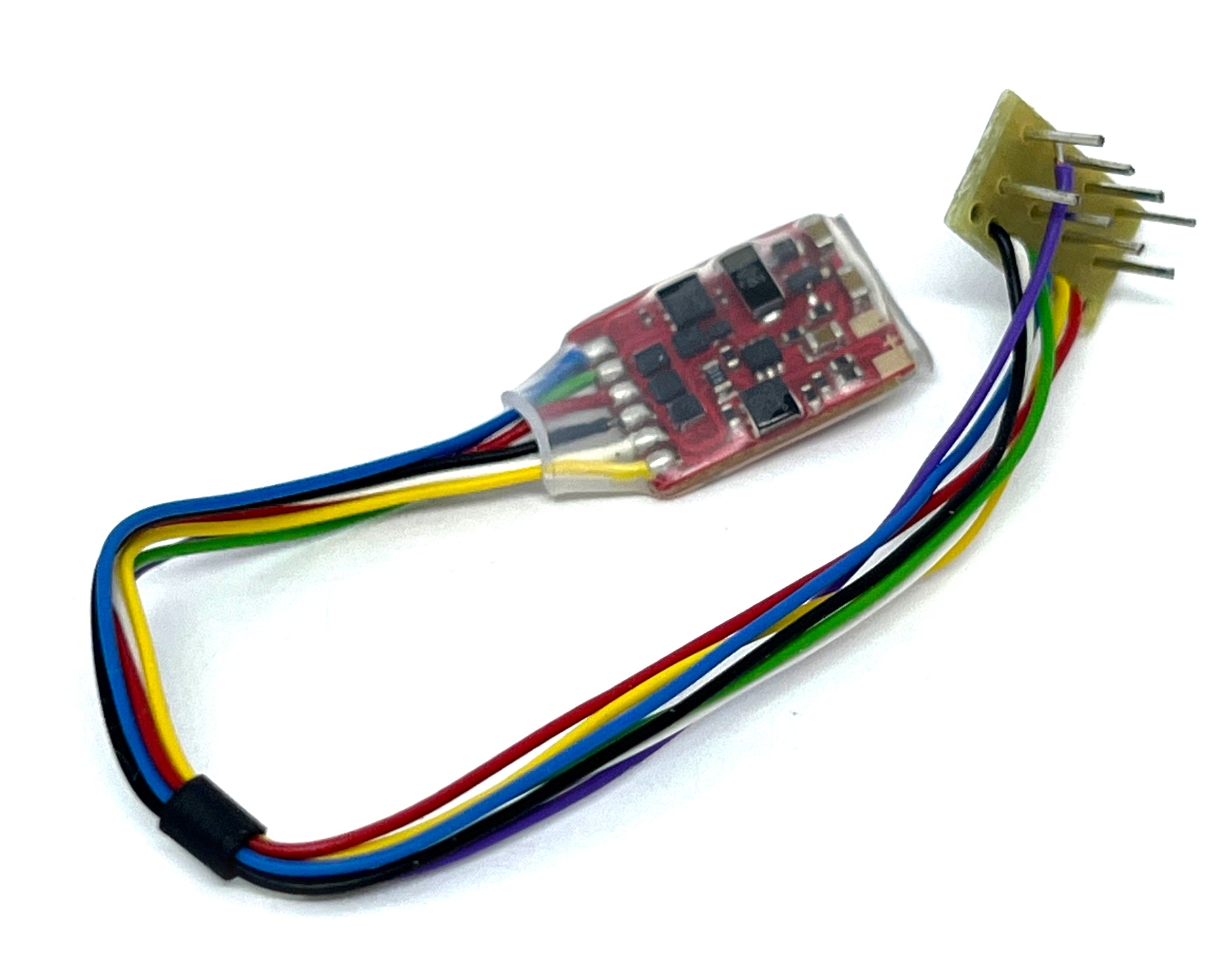

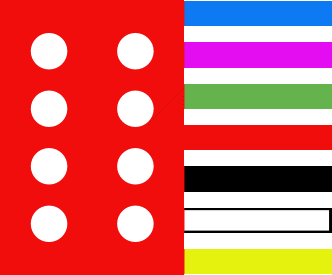

FD Micro 5W8P

Interface

NEM 651 6 pin

NEM 651 90 degrees

NEM 651 4 wires 6 pin

NEM 652 8 pin 5 wires

Art. Nr

02010106

02010107

02010108

02010110

Function Decoders with socket

Full name

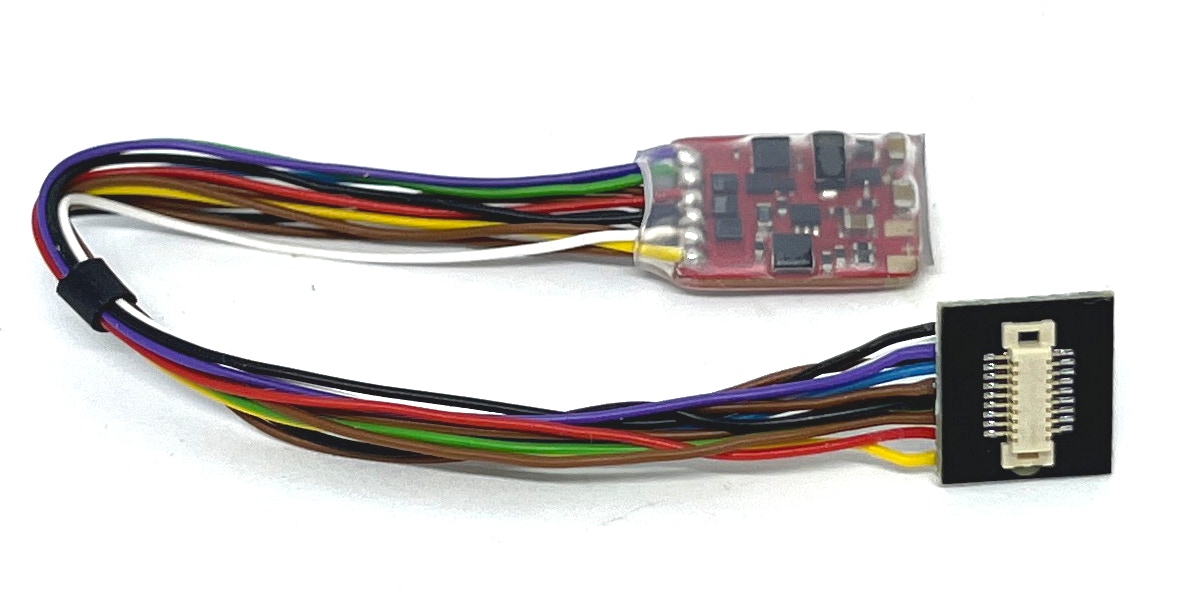

FD Micro 10WN18

Interface

Next18 NEM 658, 10 wires

Art. Nr

02010111

Function Decoders with wires only

Full name

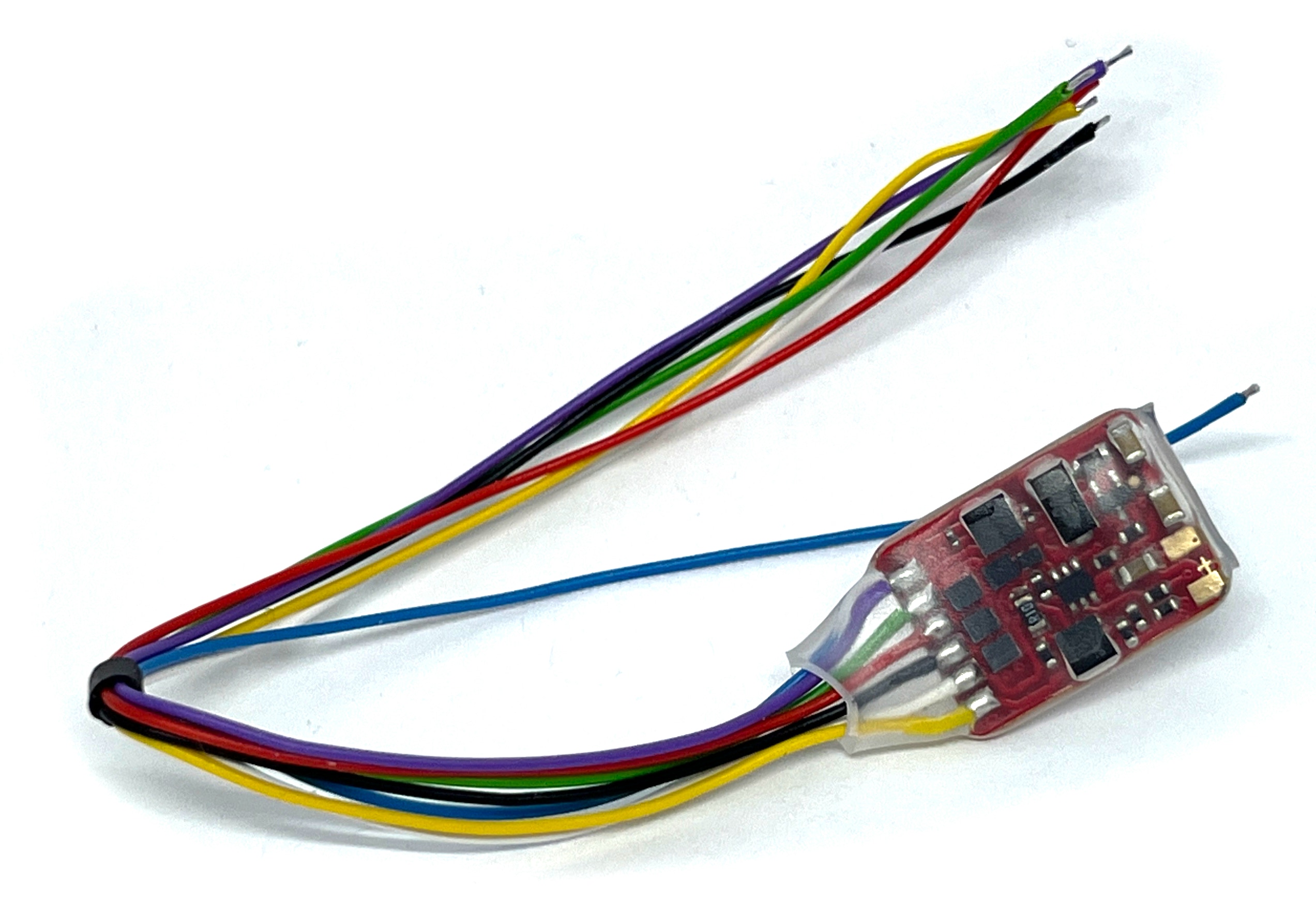

FD Micro 5W

FD Micro 2W

Interface

Art. Nr

Solder pads and 5 wires

02010109

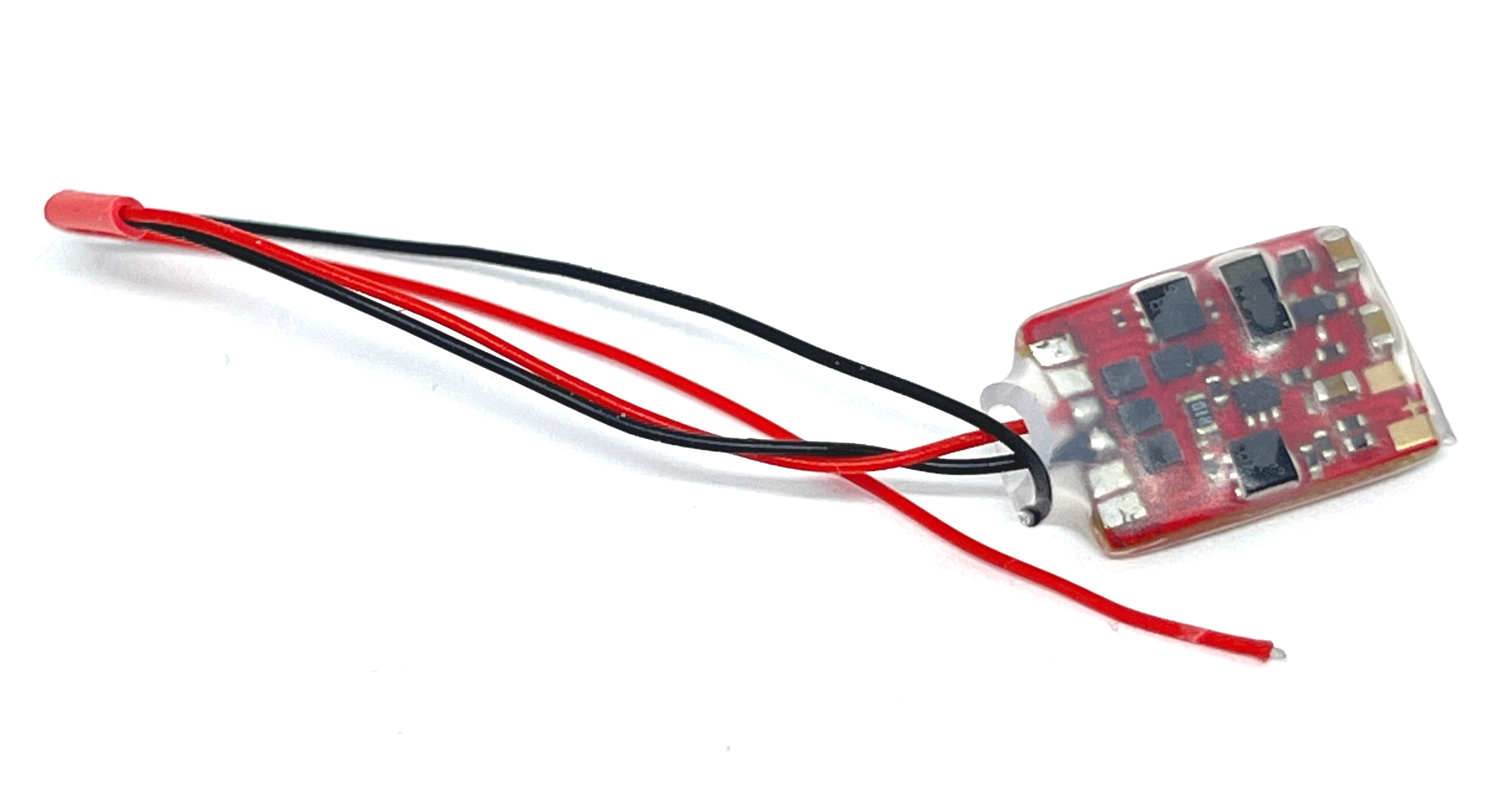

RailCom transmitter, 2 wires

02010112

PLEASE BE SURE THAT YOU KNOW YOU ARE ORDERING A FUNCTIONS ONLY DECODER.

(Because half of you have ordered these, but returning them because they expected to receive standard decoders that control the motor. Let’s say it again: a function decoder does not control the motor. Only light and other ancillary functions connected to the AUX cables.
