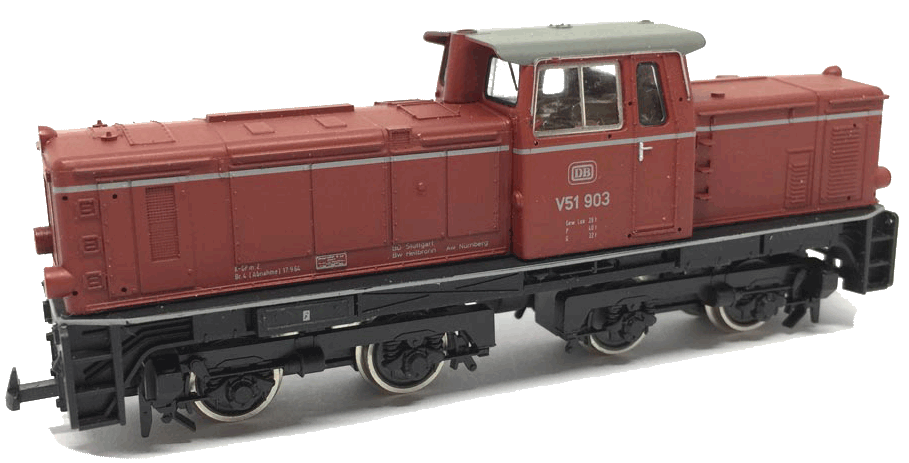

Conversion Bemo V51 V52 BR 251 (1:87)

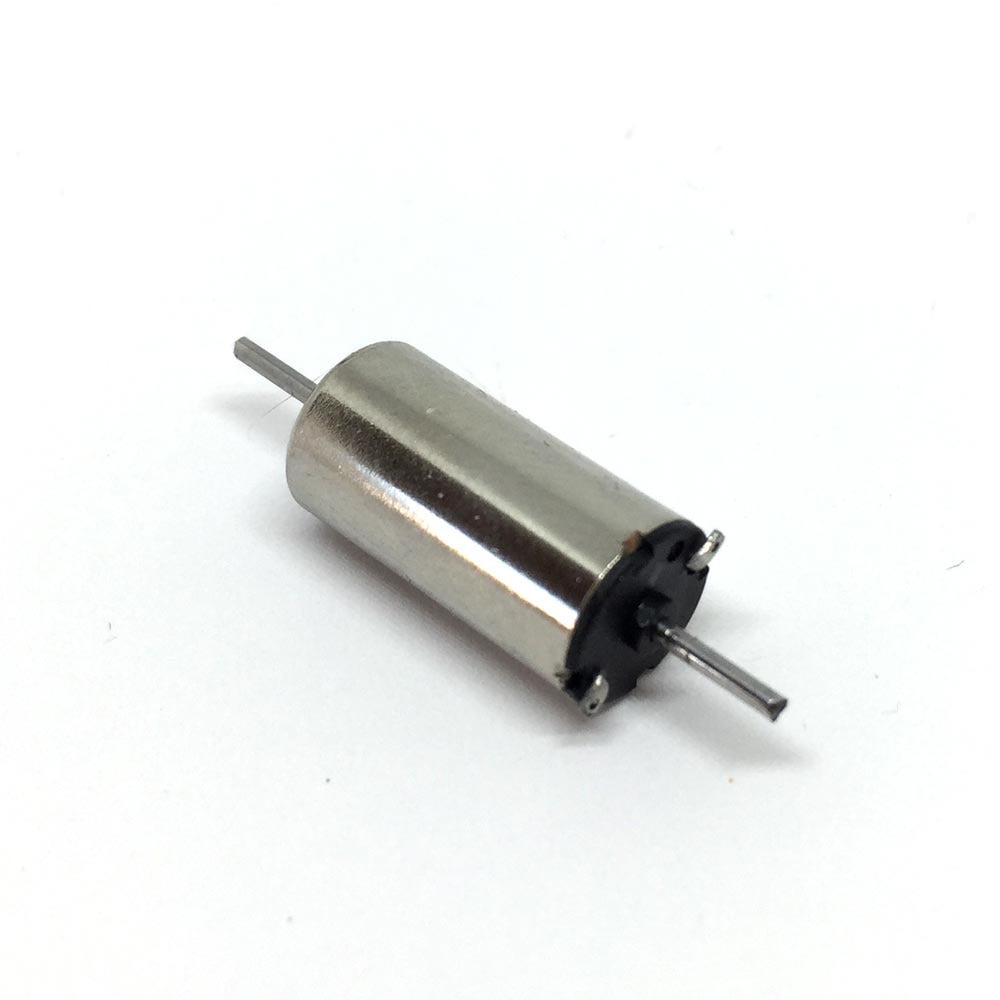

to coreless motor

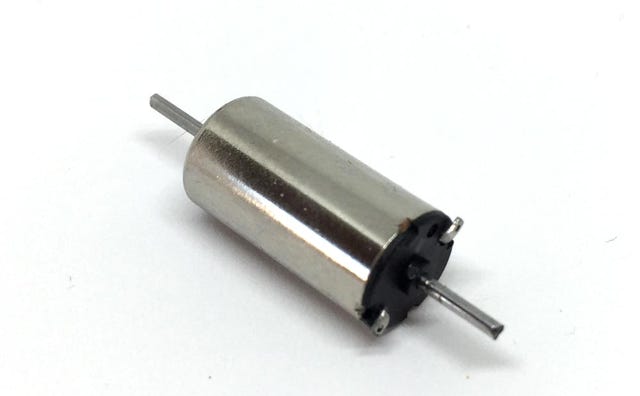

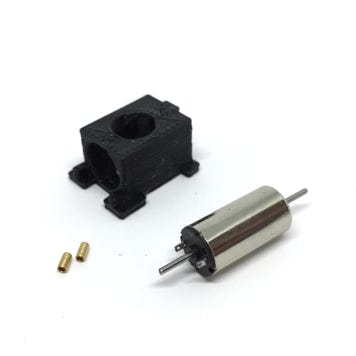

What you need for conversion set
- Diesel locomotive by Bemo, type V51 or V52
- Small flat screwdriver
- Soldering iron
- Loctite or superglue
Installation time: <1 hour
Question? Just contact Sven!

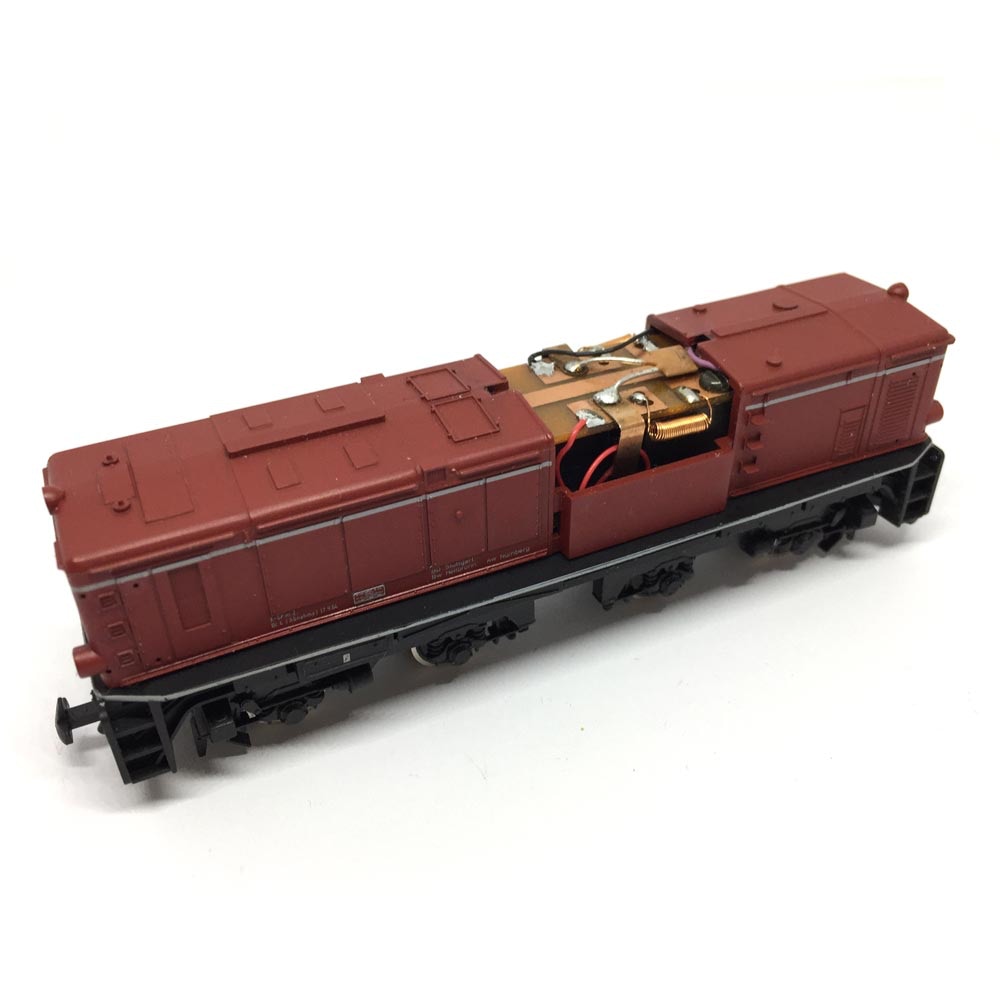

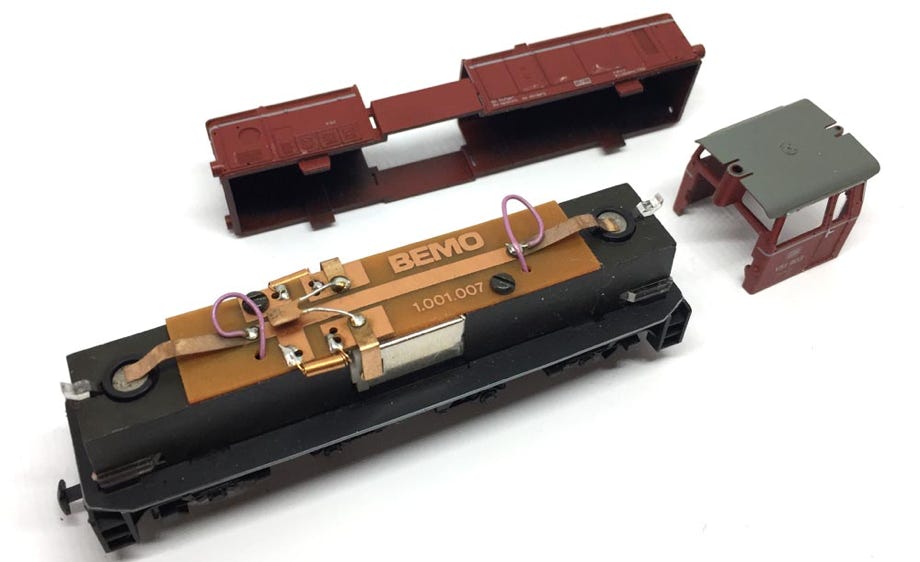

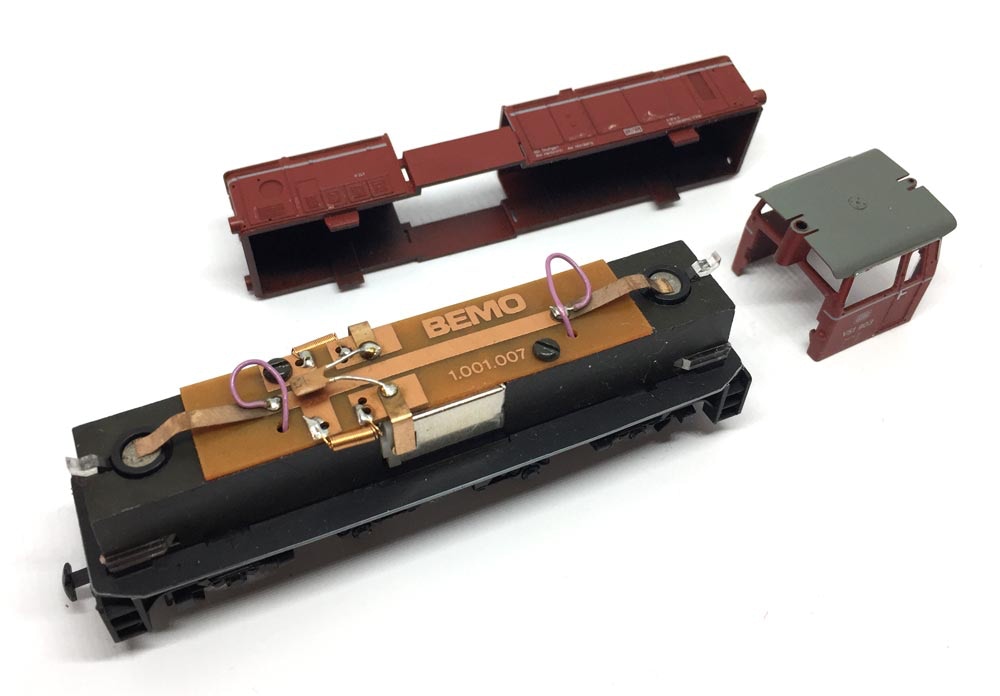

Remove plastic cabin
Carefully put a flat screwdriver under the bottom edge of the cabin. Then push it outwards, lifting the cabine off. You probably have to the opposite side on the same side of the train as well. This should go quite easy, don’t use force.
Be careful you don’t loose the windows, they might fall out.
On four points the housing of the train is held on the chassis with a tab. Move a bogie to the side, then you can see the tab. Release the housing from the chassis by putting a screwdriver in the hole and move the red tab inwards, toward the wheels. Then lift the housing straight up.
Remove screws from electronic components board

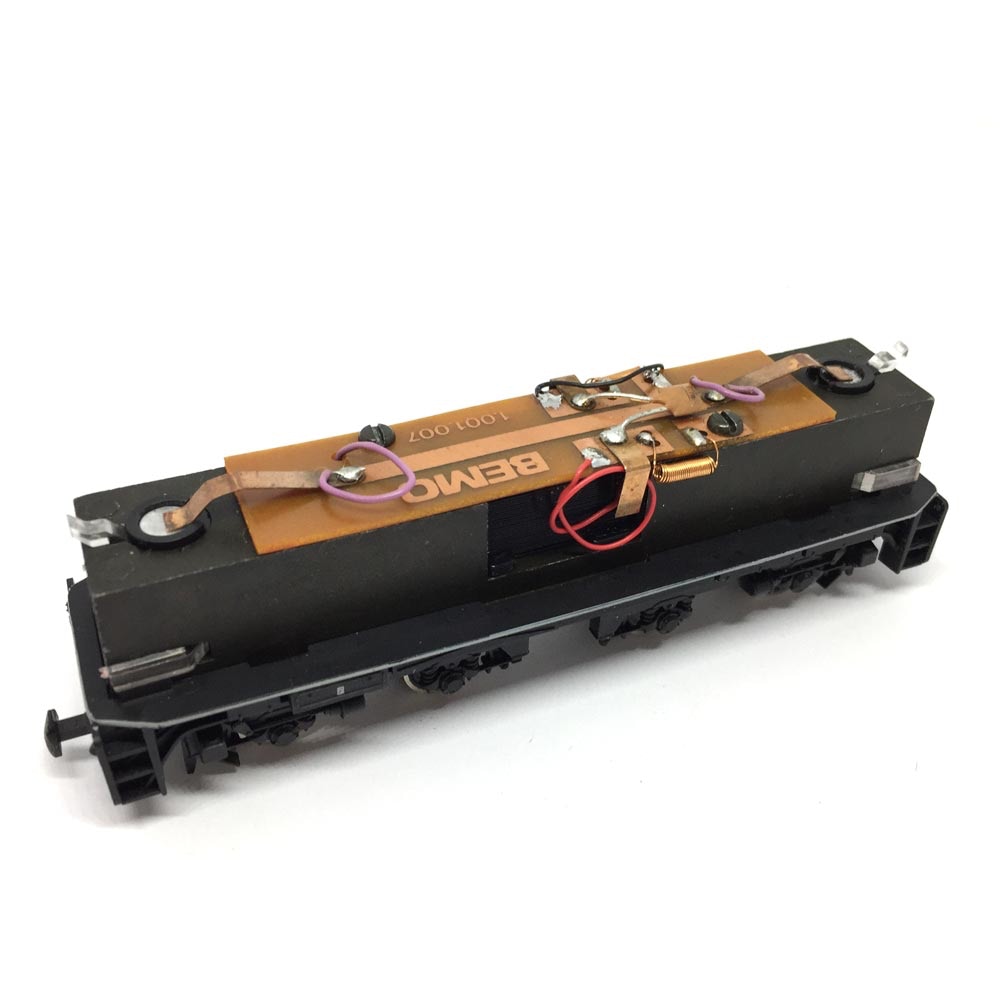

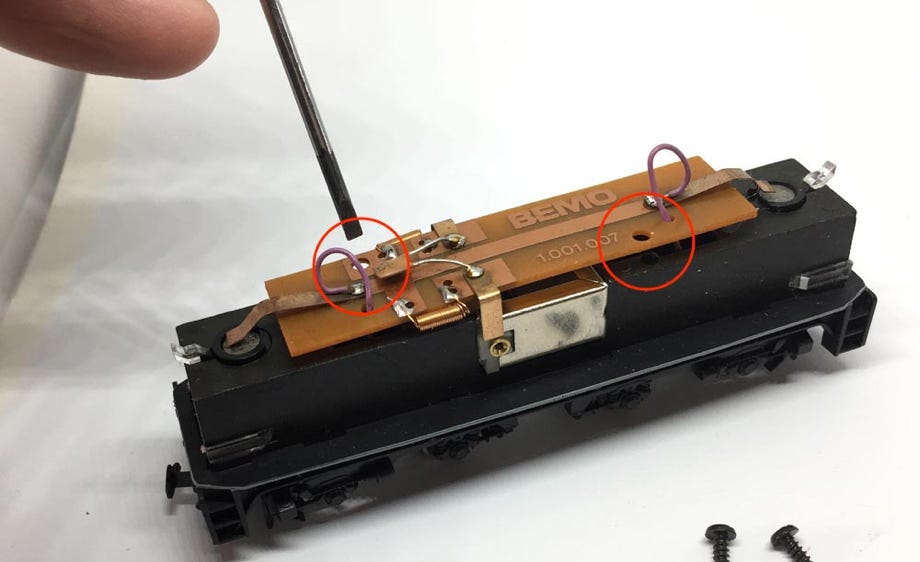

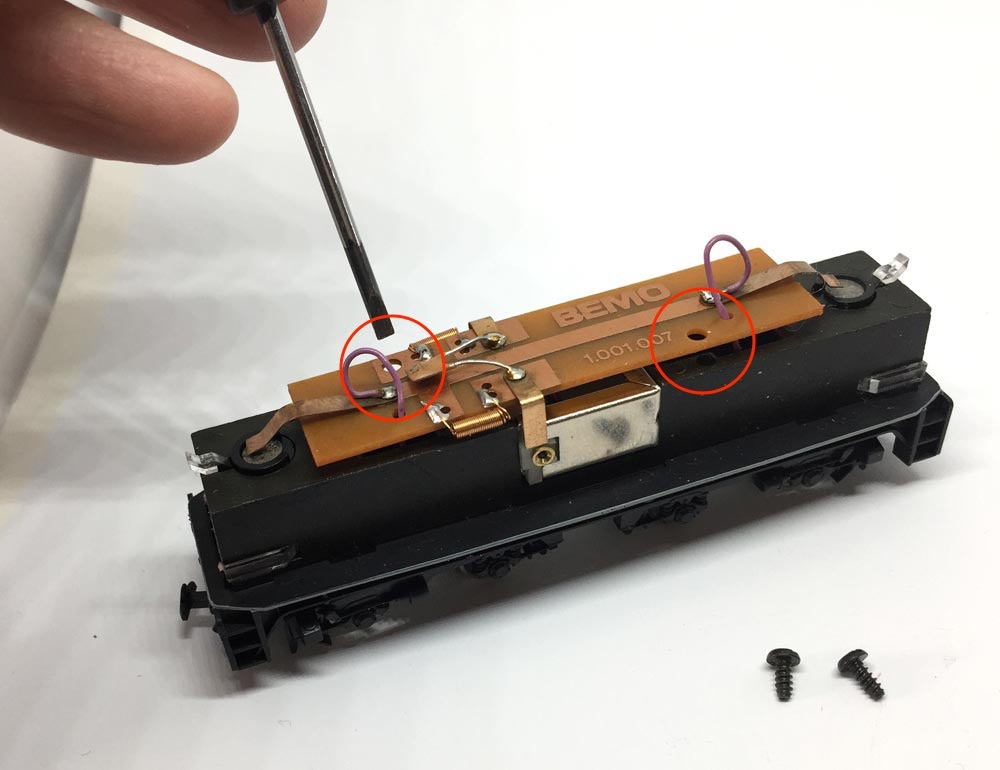

Location of screws is indicated with the two red circles.
Remove the board

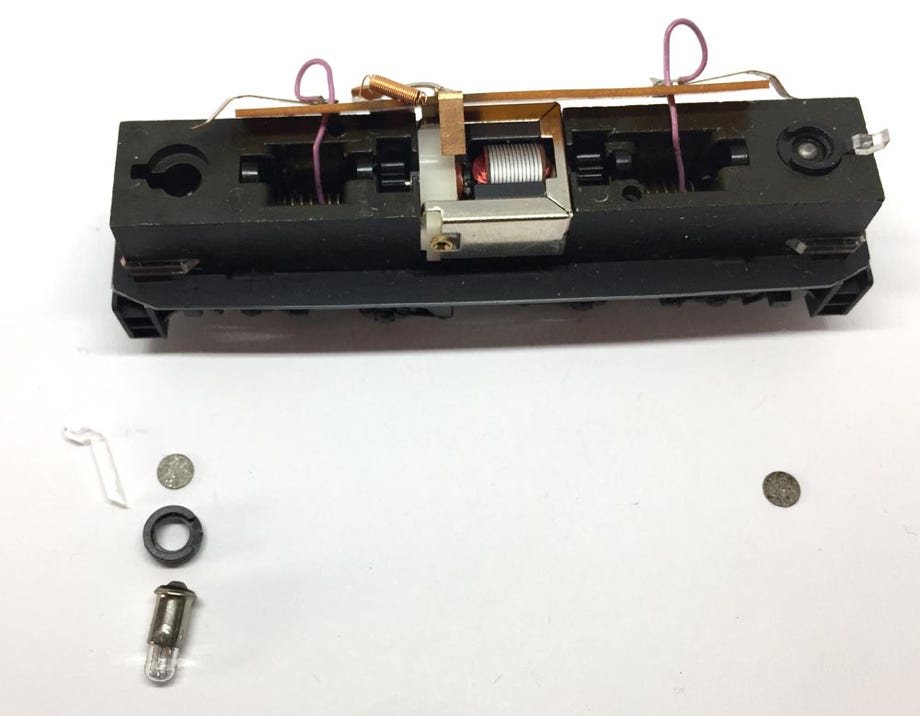

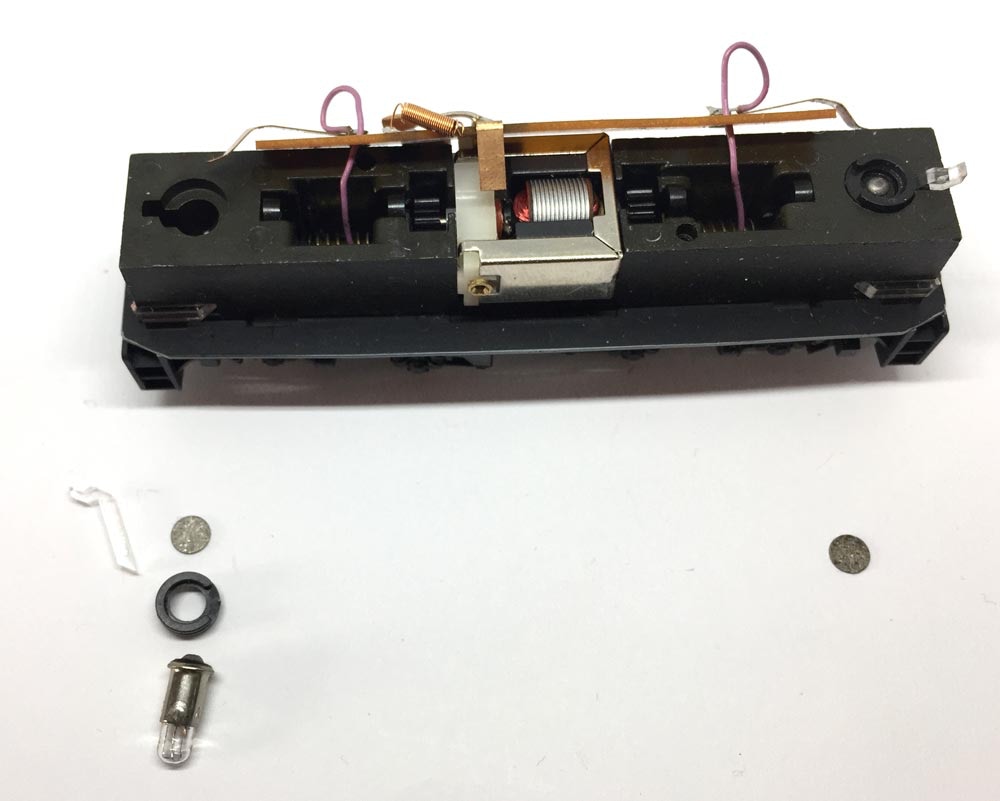

After removing the screws, the board can be taken off. Be careful not to loose the components for the two lights, as they will fall out now when you turn the train upside down. Better to take them out and put them aside. Also pay attention to the plastic pieces for the lights on the four edges. They might fall out as well, while working on the train.
Don’t cut any cable!

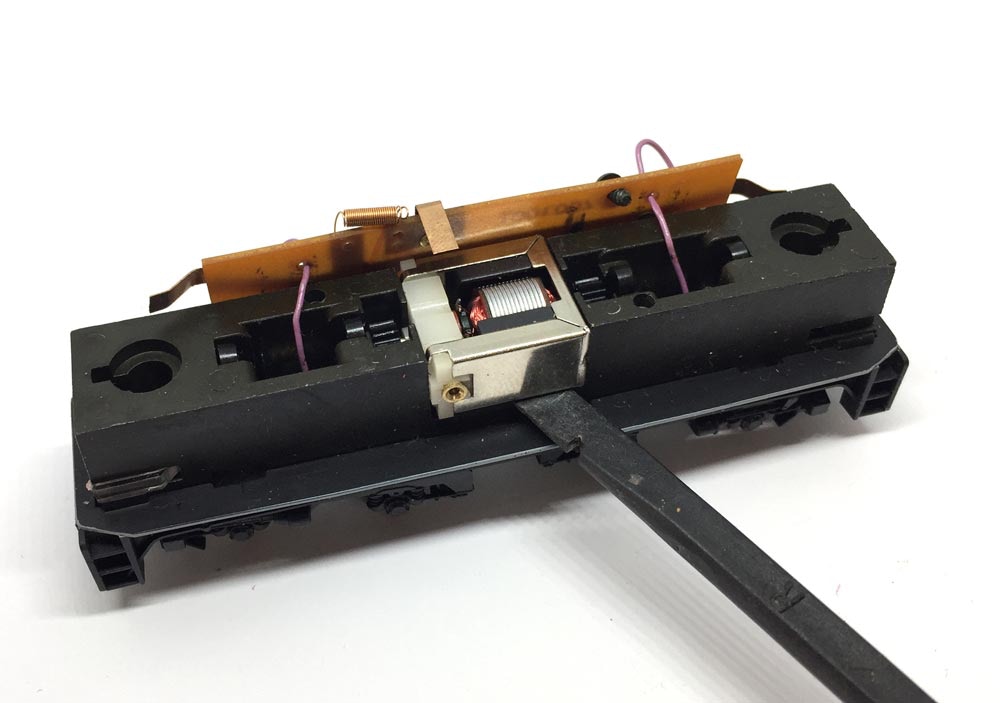

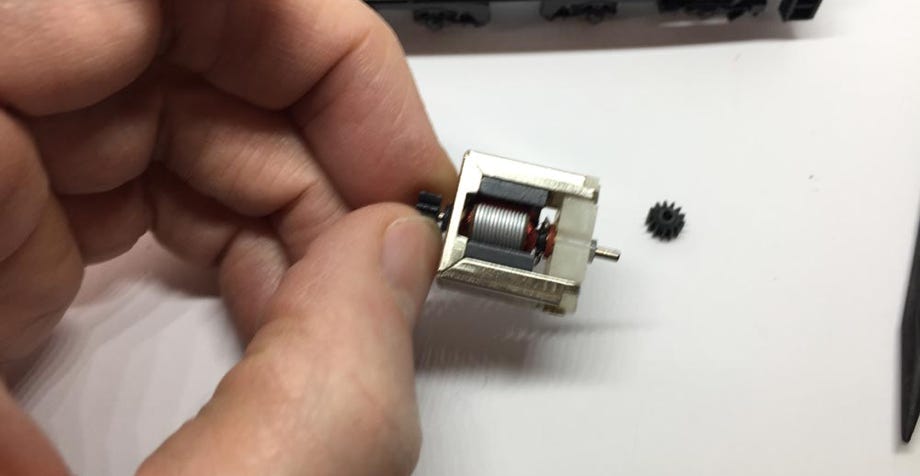

Take the gears of the motor axle

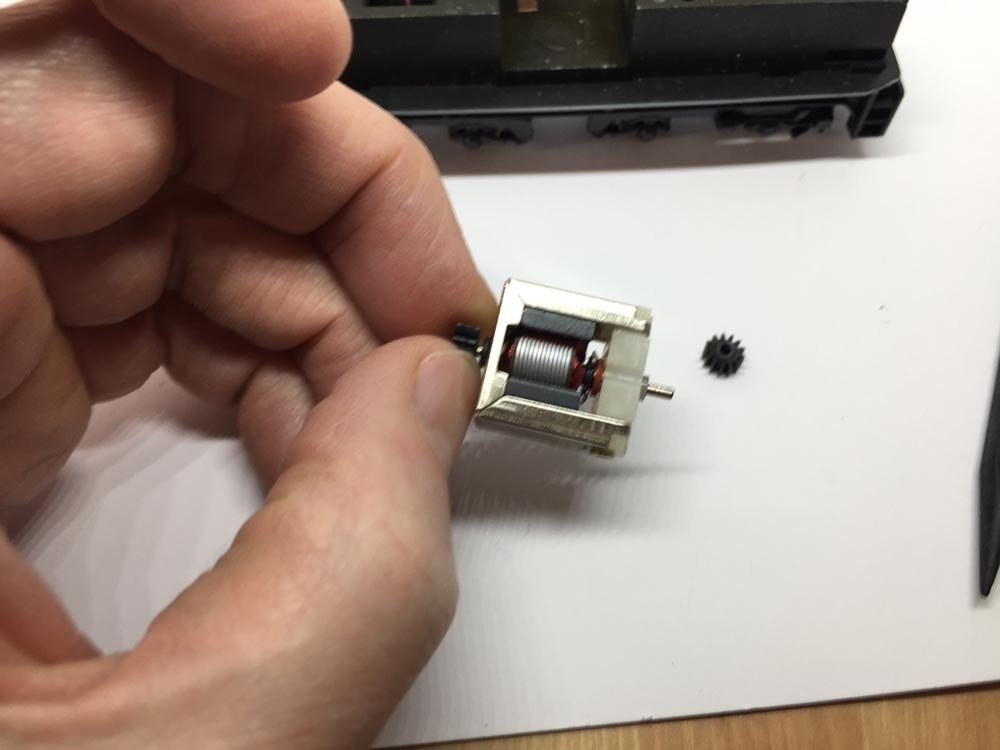

The two black gears on each side of the motor can be pulled off by hand.
Fit the adapters

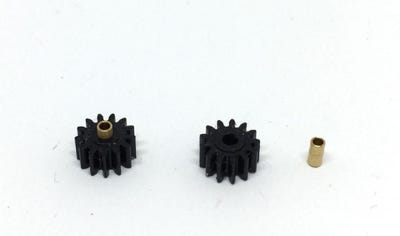

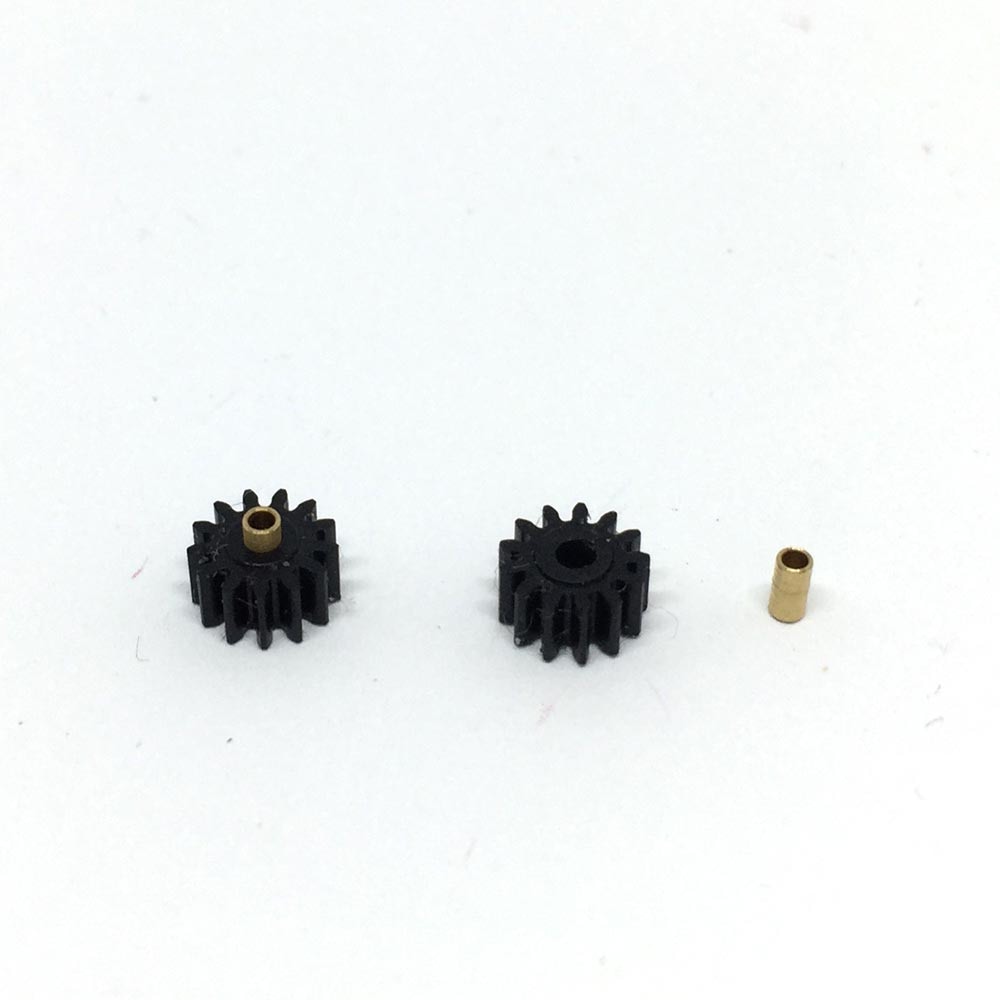

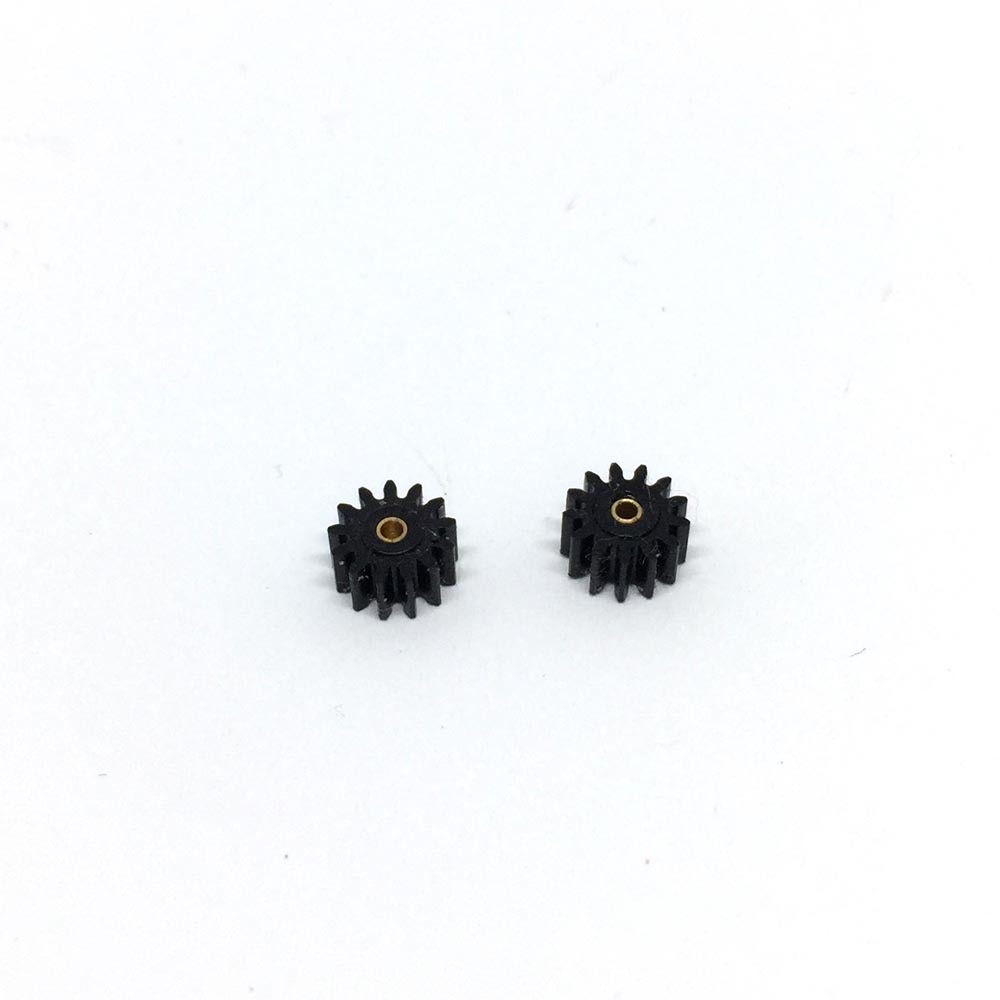

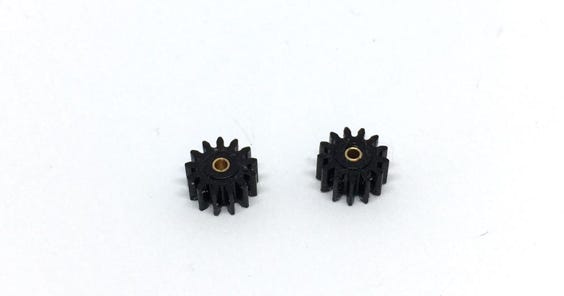

The brass adapters are 3 mm long and have an inner diameter of 1 mm. Press them inside each gear.
Be careful not to get glue in the motor shaft. I use a kitchen tissue over the shaft to get the Loctite or superglue that will be pushed towards the bottom when fitting the adapter. Leave about just over one millimeter free between motor and adapter. The total length should be about 43 mm.
Bend power terminals
The power connectors on the motor should be bend. If this is not the case already, bend the connectors outwards 90 degrees with your nail.

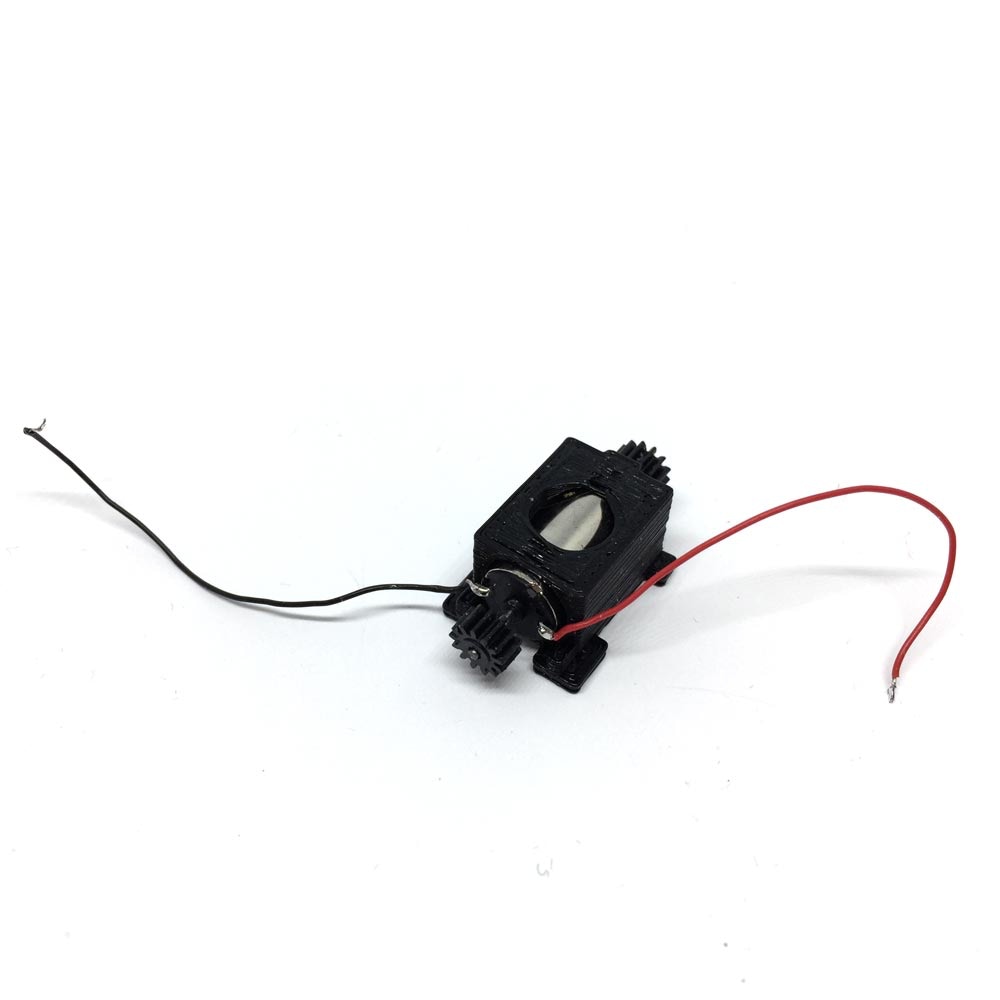

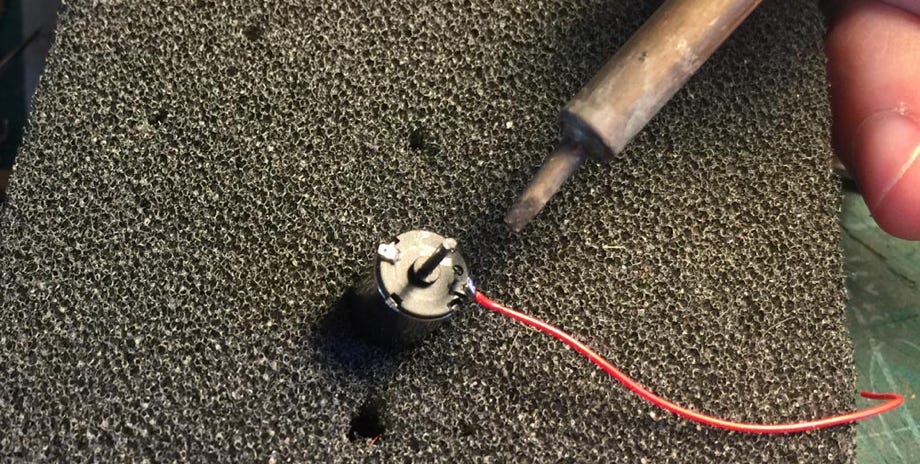

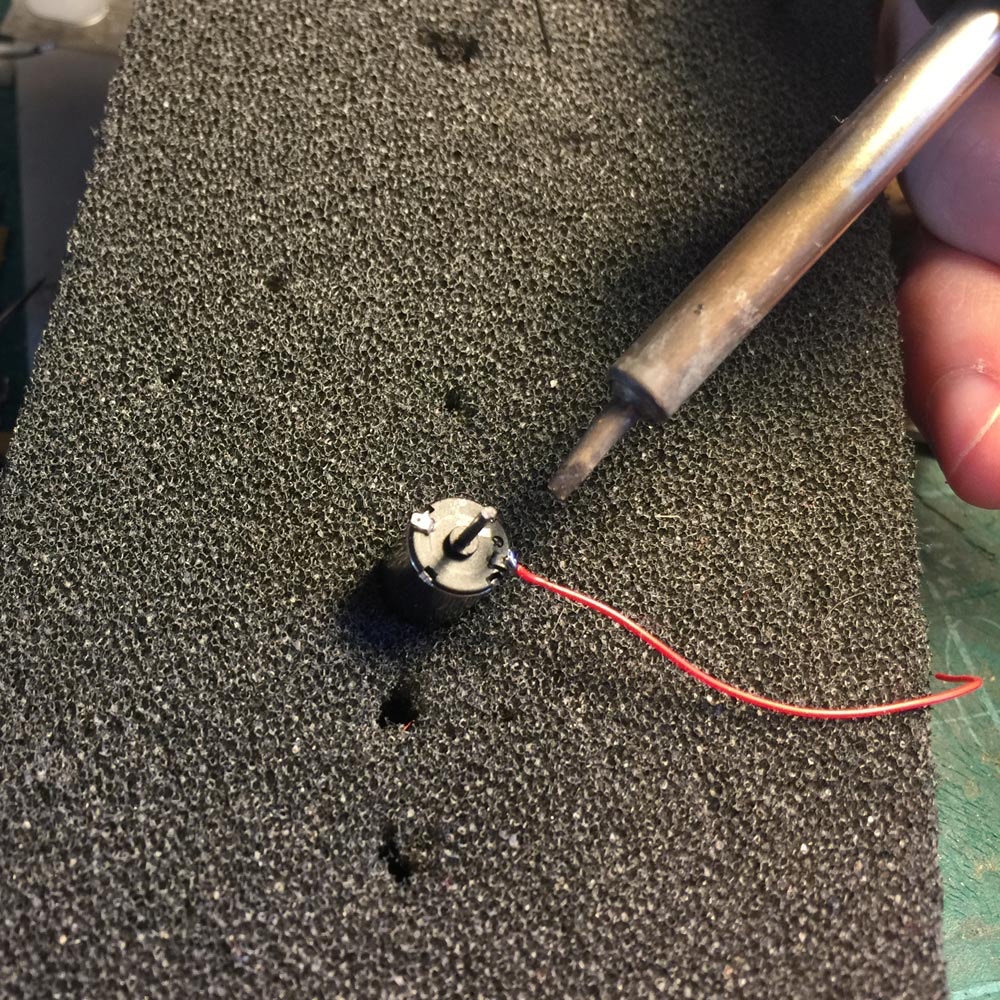

Solder wires to the motor

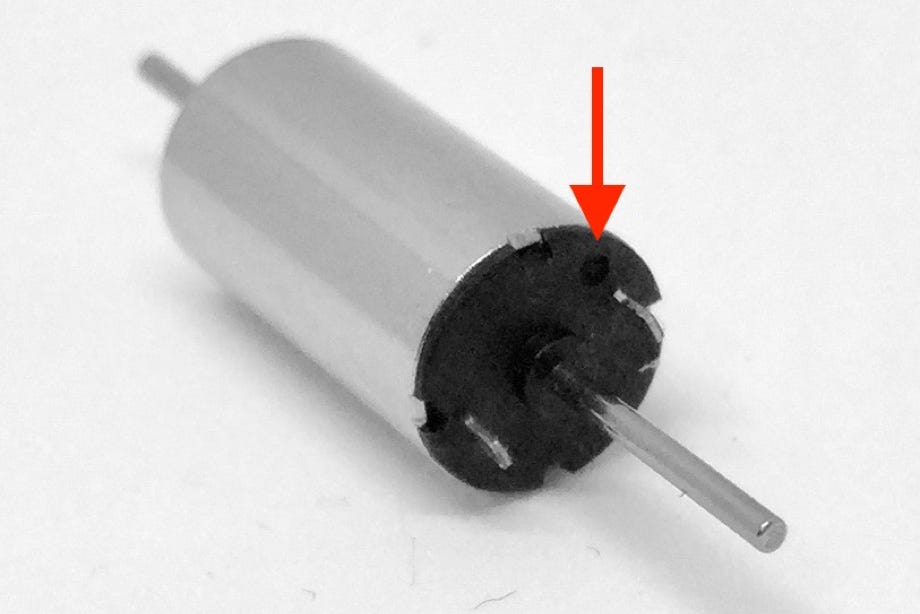

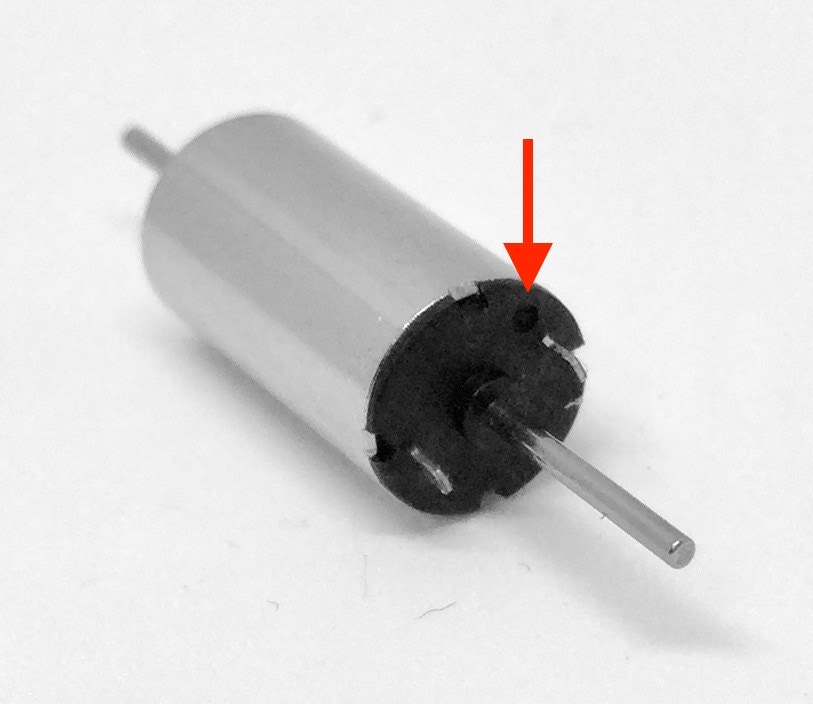

There is a round mark next to the plus pole of the motor. This is traditionally a red wire. Solder a black wire to the other connector. You can use any colour you like, but as long as you remember which is plus and which is minus. When you install the motor in the train chassis, make sure the connectors are not touching the frame. It’s therefore you have bent the connectors.
Push the motor in the casing and fit gears

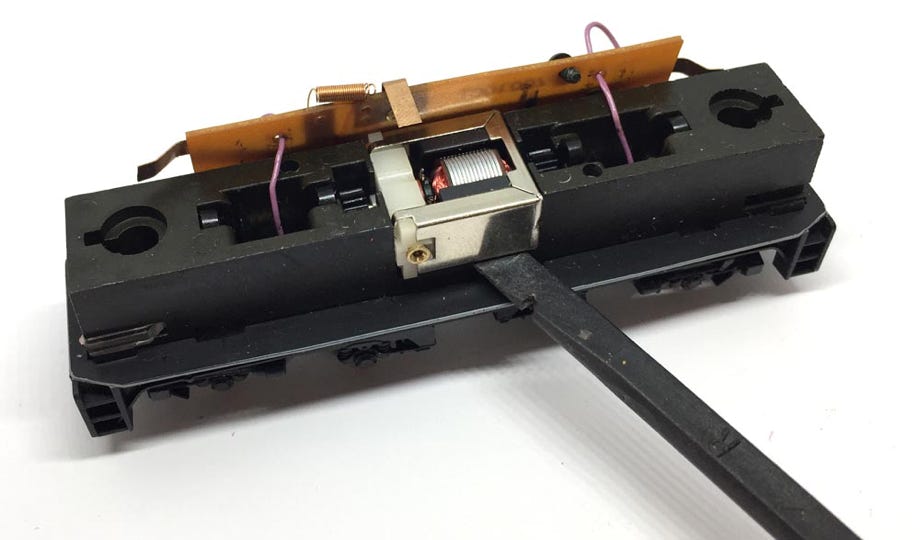

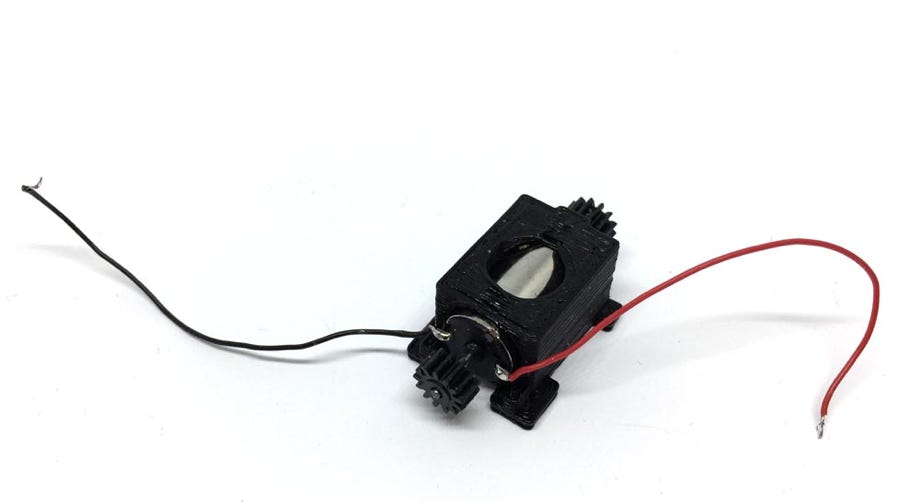

See image how the motor is placed in the casing. Then use superglue to glue the gears on the axles of the motor. The distance from one end of the gear to the other end of the gear on the original motor is 29 mm. But if you have a look inside the chassis and check where the gears have to go, this is a bit flexible. Check before you glue the gears in place!!

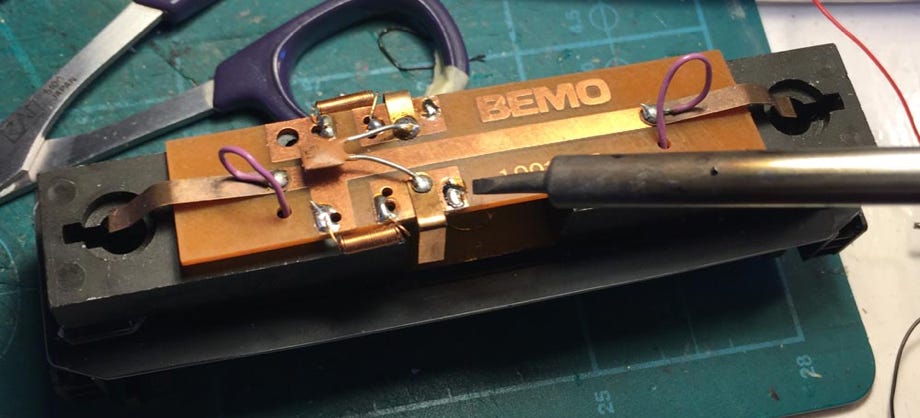

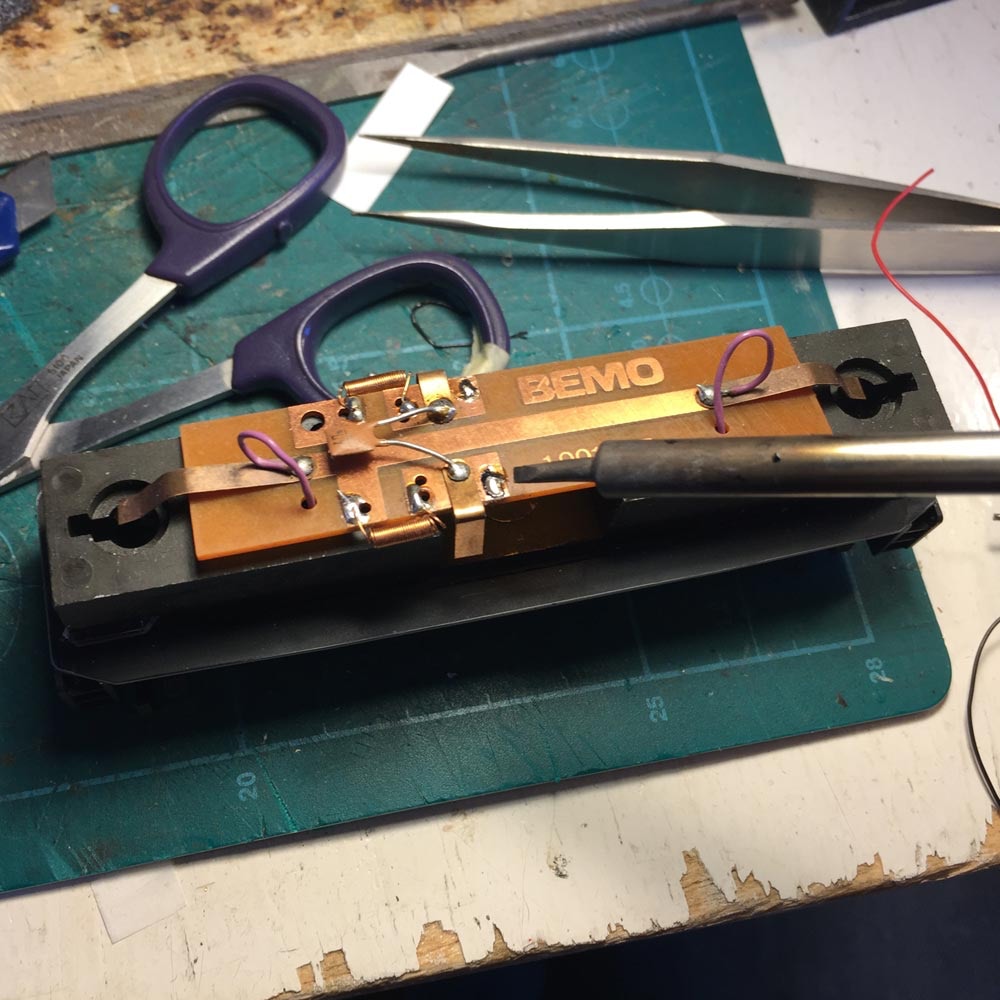

Solder motor wires to board
Put some wire solder with resin core on the indicated connector on the board. T
The red wire will go on the right side in the forward direction of travel. Black on the other side.

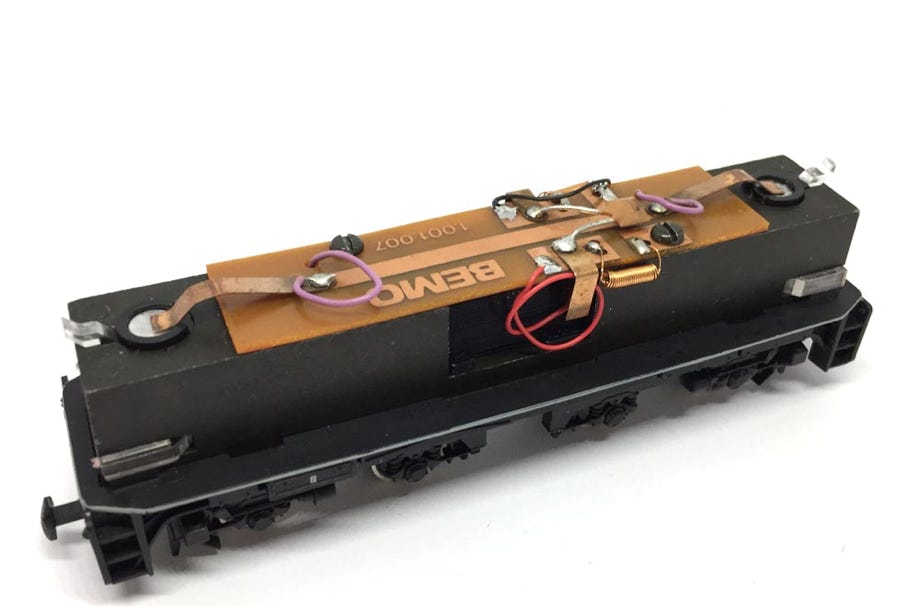

Fit board and test.
Re-fit the light components, place the board and screw it back in place. Test if it works and check if the correct front light turns on when you drive it. If the wrong light is on, it means you have to swap the connection of the cables.
Extra tip: If, when running, it’s very noisy, the worm and gears most likely are too close to another. Cut a fitting piece of an A4 paper and put this under the motor casing to raise the motor assembly a tiny bit.
If everything works as should, replace the housing. It all just snaps in place.

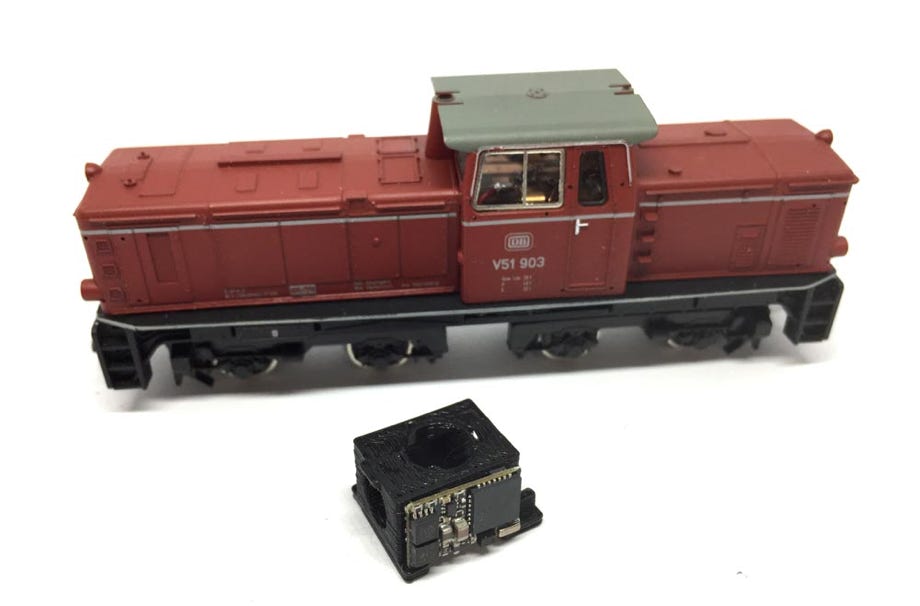

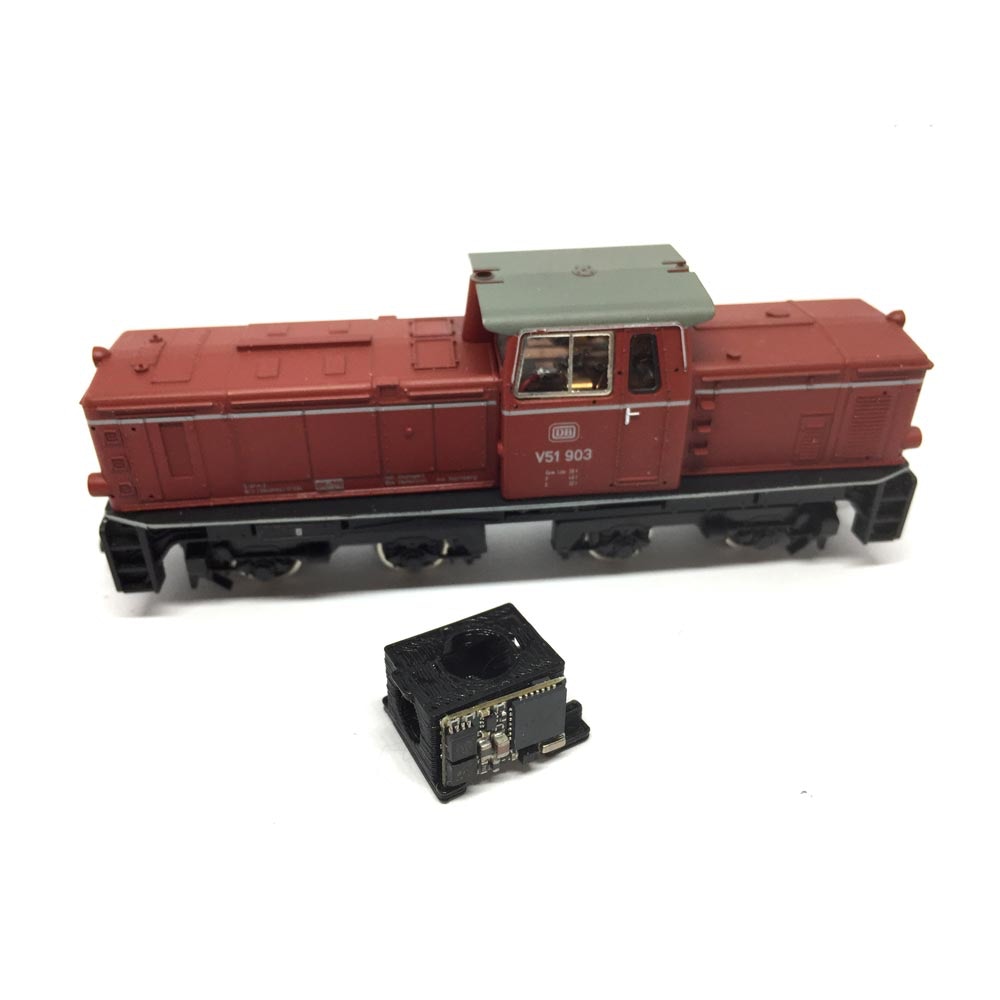

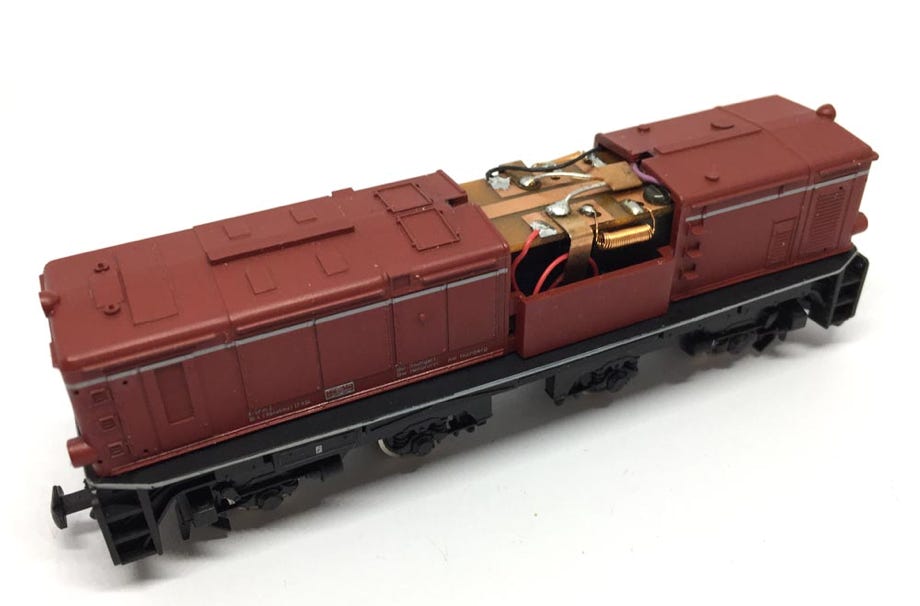

If you are going to attach a decoder, check here for the CV settings (link). On the image a Zimo MX622 is shown, but there are even smaller decoders that would take up less space. After installing the motor upgrade, there is space to hide a decoder out of sight.
