Conversion Liliput U

to 12V coreless motor

Liliput art nr 141490, 141491, 141492, 141493, 141494, 141495, 141496, 141497, 141498

Revision 1

Revision 2 ‘Wien’

Revision 3 ‘China’

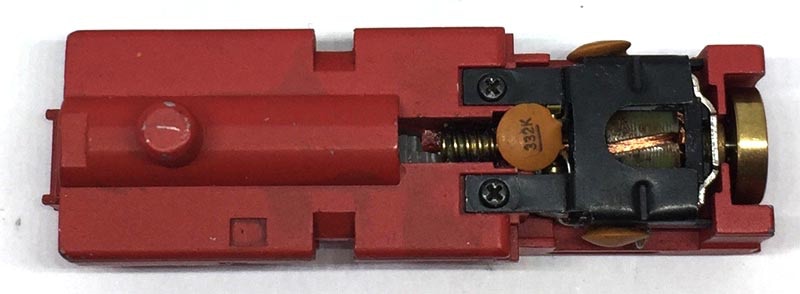

How to distinguish: Long motor shaft, either with silicone tube or just one long shaft. Crude gearing.

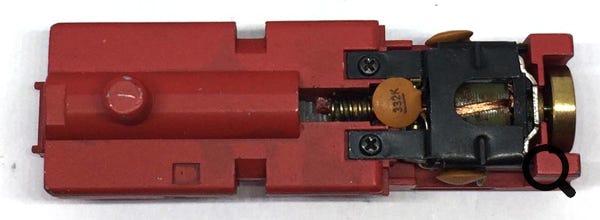

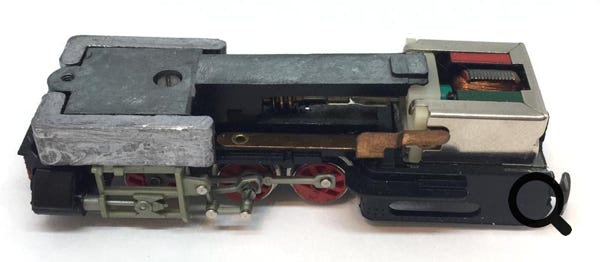

How to distinguish: Short motor shaft, no flywheel.

Fine detailed gearing. Made by Liliput Wien (Vienna).

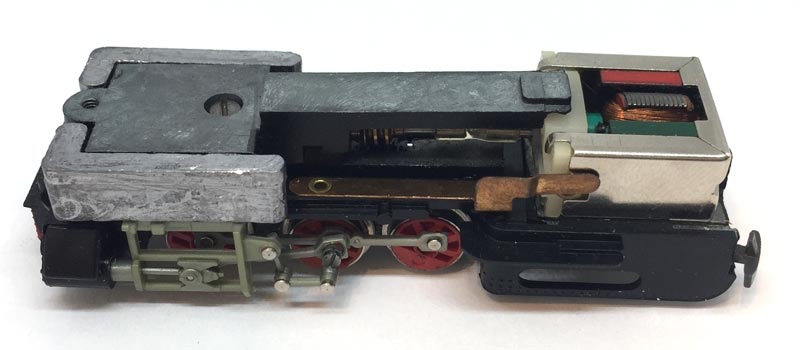

How to distinguish: Flywheel, metal cover plate over motor. Made by Bachmann China.

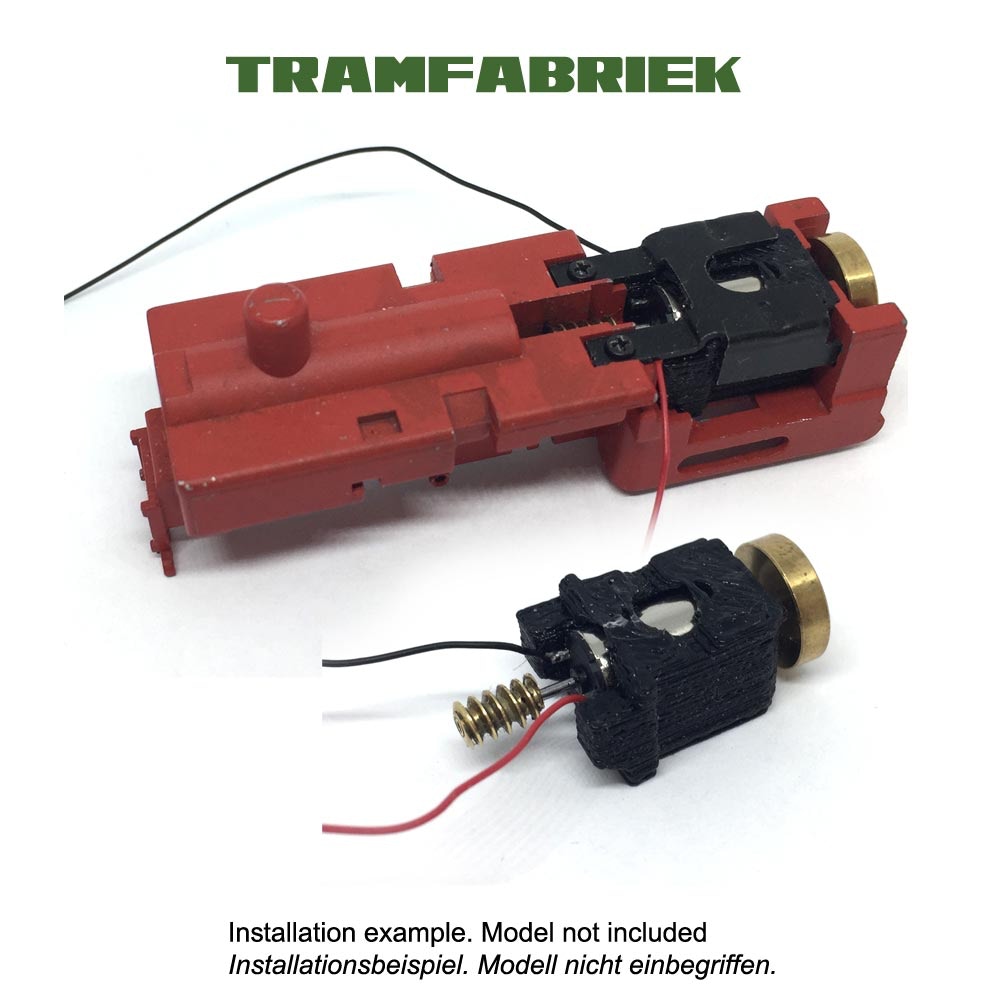

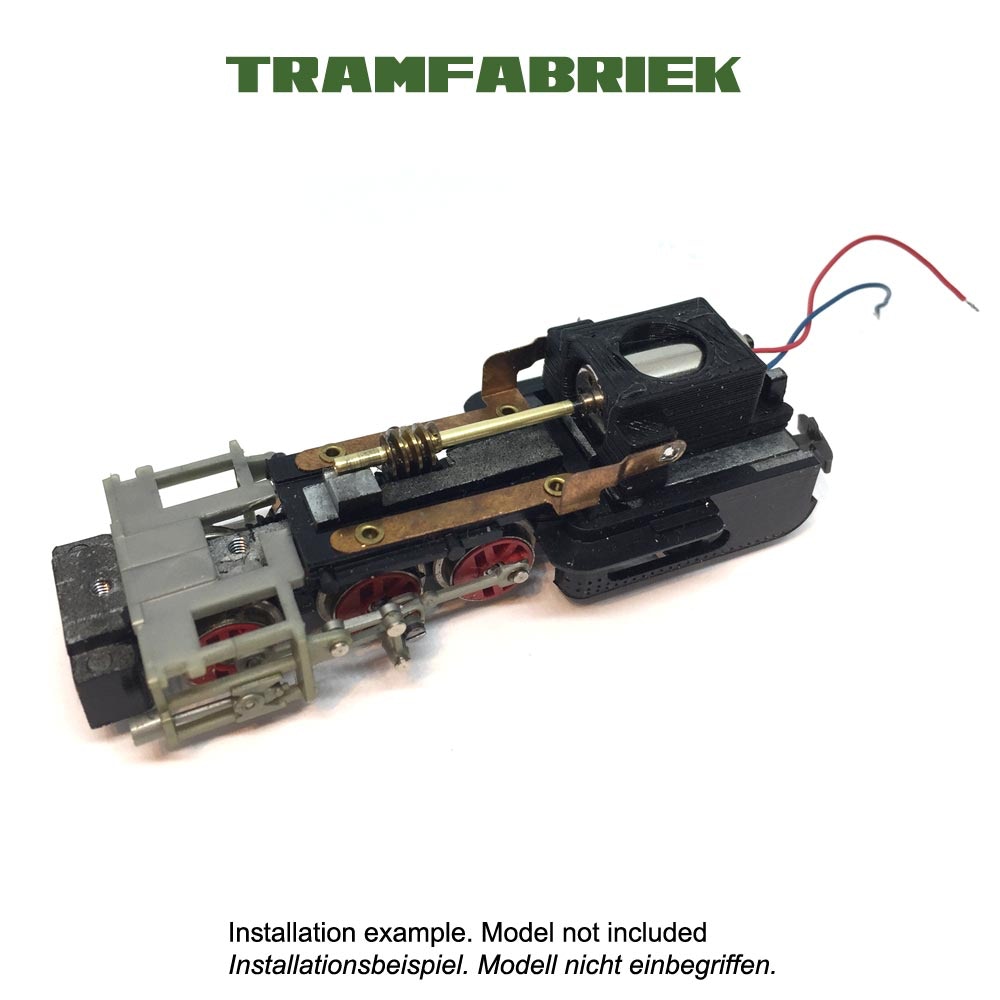

LILOKU-1   Coreless motor conversion kit

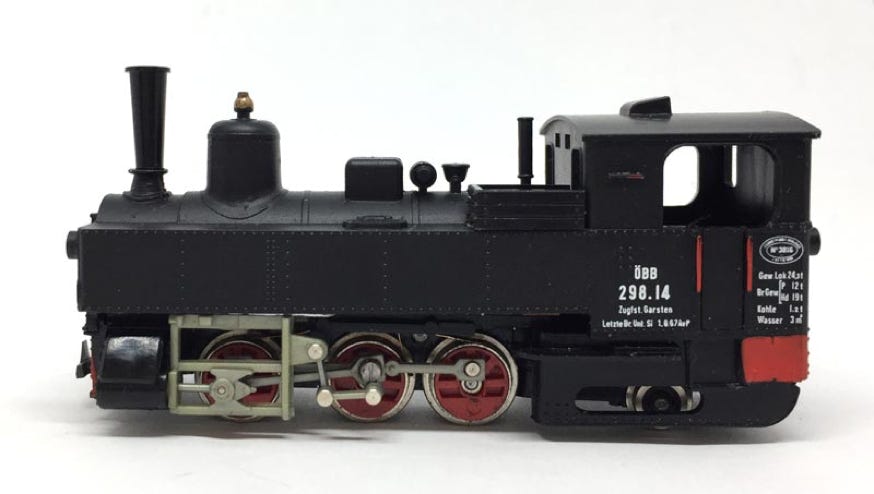

For Liliput H0e models of the first generation, made in Wien (Vienna).


Contents of the kit:

1x  8x16 mm 12V motor with one shaft

1x Motor casing

1x long brass shaft adapter


This kit does not include a worm, so you have to take the original one off of the motor! How to do so confidently, read here.


Instructions here

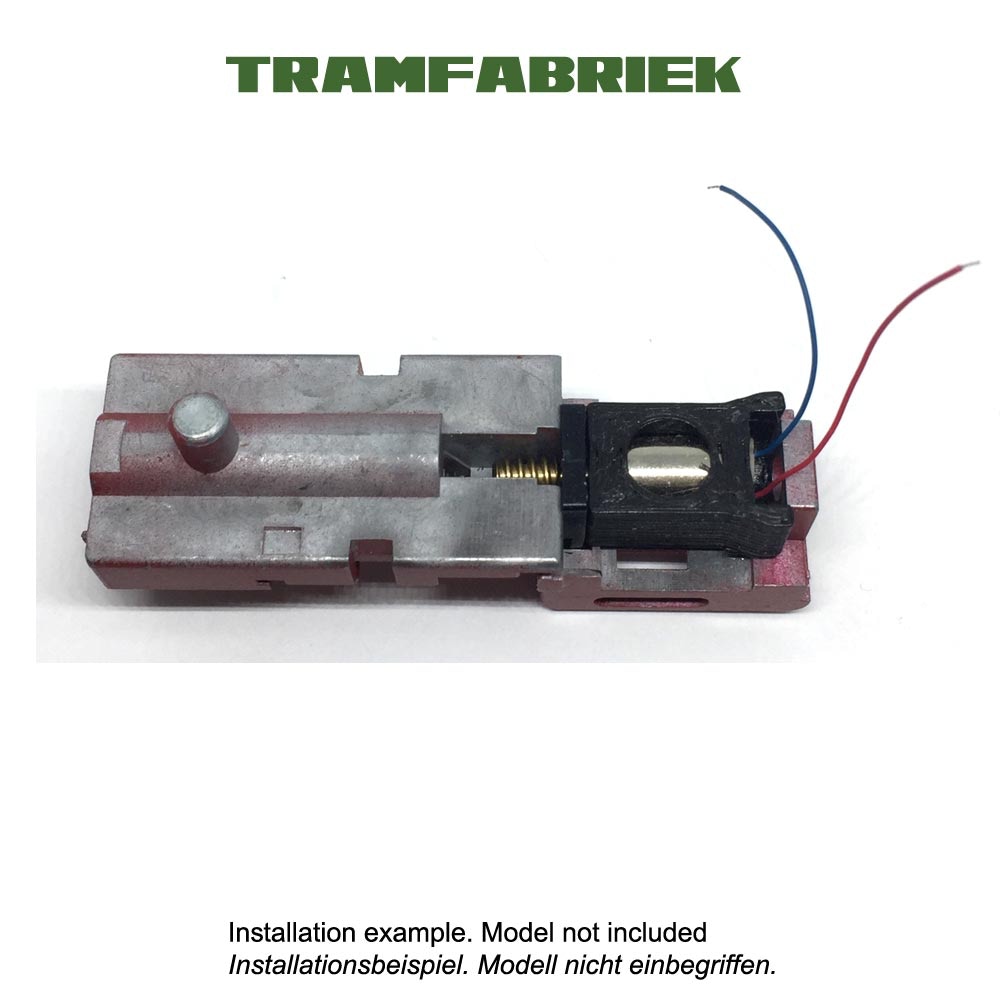

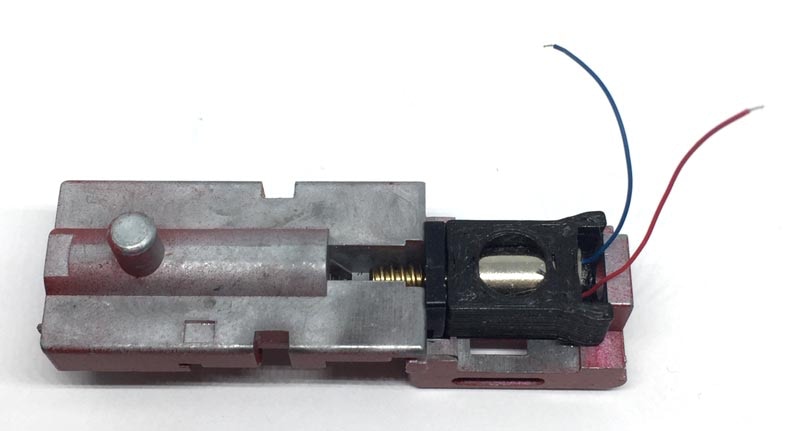

LILOKU-2   Coreless motor conversion kit

For Liliput H0e models of the second generation, made in Wien (Vienna).


Contents of the kit:

1x  8x16 mm 12V motor with one shaft

1x Motor casing

1x short brass shaft adapter


This kit does not include a worm, so you have to take the original one off of the motor! How to do so confidently, read here.


(Instructions following)

LILOKU-3 Coreless motor conversion kit

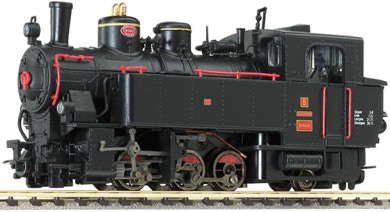

For Liliput H0e models of the third generation, made in China.


Contents of the kit:

1x  8x16 mm 12V motor with two shafts (one end already pre-cut to size)

1x Motor casing

2x short brass shaft adapters


This kit does not include a worm and flywheel, so you have to take the originals off of the motor! How to do so confidently, read here.


For Artikel numbers (among others):  L141491, L141491, L141492, L141493


(Instructions following)
