Tsugawa

Conversion to 12V coreless motor

Tsugawa makes pretty nice chassis. With the Tramfabriek 12V motor upgrade they are even better! This is a simple replacemement, which can be done in 5 minutes. And you’ll be able to have a larger range to control your model and it can run with all your other 12V trains. You can even convert it to DCC.

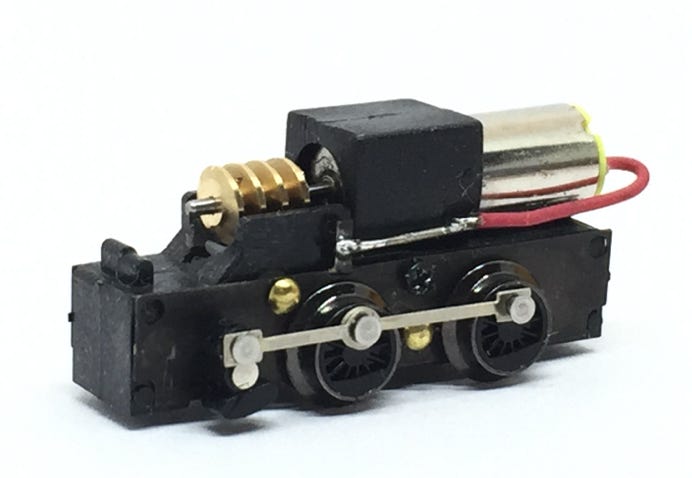

TU0615 - 12V motor upgrade kit Tsugawa with 6mm motor

Includes:

1x 12V Coreless motor

Compatible with for example:

14046 TU-9A

14053 TU-DB158

14054 TU16A

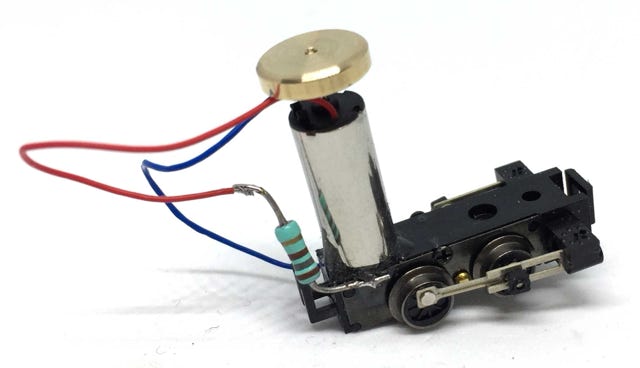

TU0716 - 12V motor upgrade kit Tsugawa with 7mm motor

Includes:

1x 12V Coreless motor

1x 10 x 2.5mm flywheel

Compatible with for example:

14036 TU-KOPPEL A

14096 TU-KOPPEL B

Scroll to video

What you need for conversion set

- The model and upgrade kit

- A reamer with a 0.8 mm diameter

- Soldering iron 15W/25W

- General model making tools

Installation time: Around 5 minutes

Question? Just reach out!

This is a very simple installation, but you need to have the right tools.

1. De-solder the wires.

2. Twist the motor out of the chassis. You can use pliers if you can’t get a good grip.

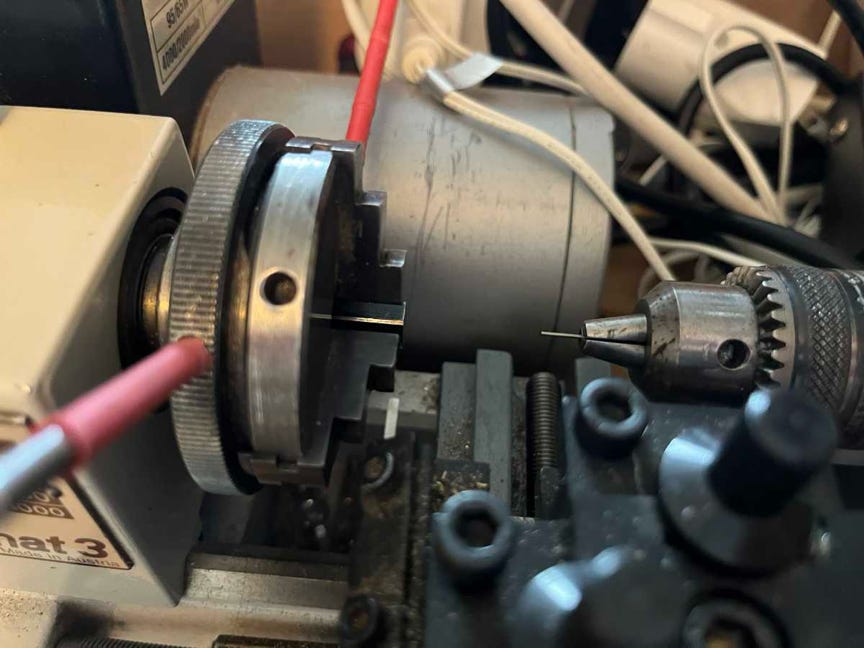

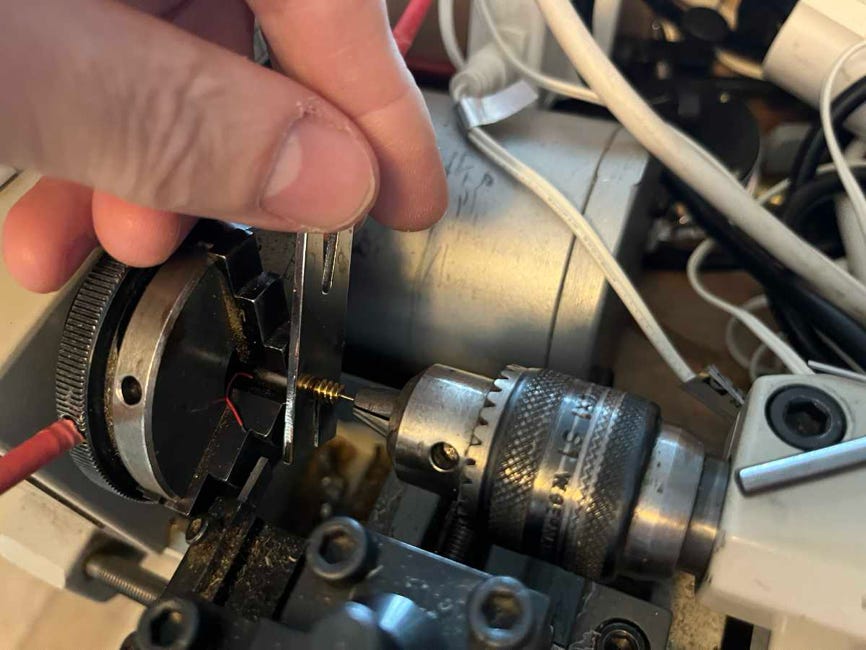

3. Pull the brass worm off with your fingers. If you have trouble, carefully use a flat screw driver and twist between motor and worm. Careful not to damage the blades. A good way is to use a lathe with 0.7 mm drill bit to push the worm out, see pictures lower on this page.

4. Ream the inside of the worm when it doesn’t fit easily to 0.8 mm.

5. Press the worm on the new motor. Use metal glue if needed (Loctite or Granville Lock thread for example)

6. Re-fit the motor

7. Solder the wires to the motor

78 If you have a flywheel, place the flywheel

Done

Alternatively, you can buy the chassis with the 12V motor already installed here on the website.

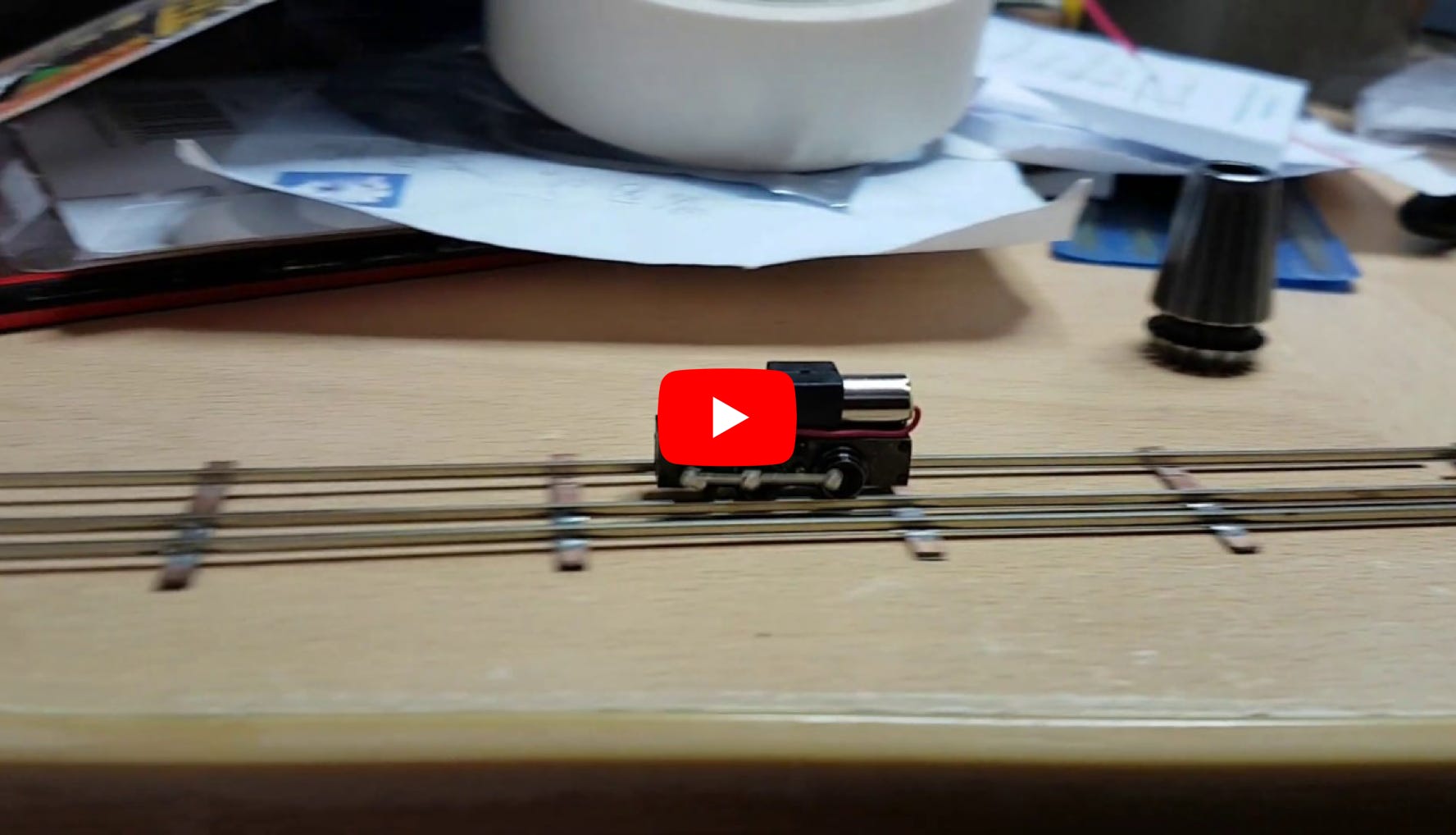

Below, see an example of how sweet it runs with the 0615 motor.

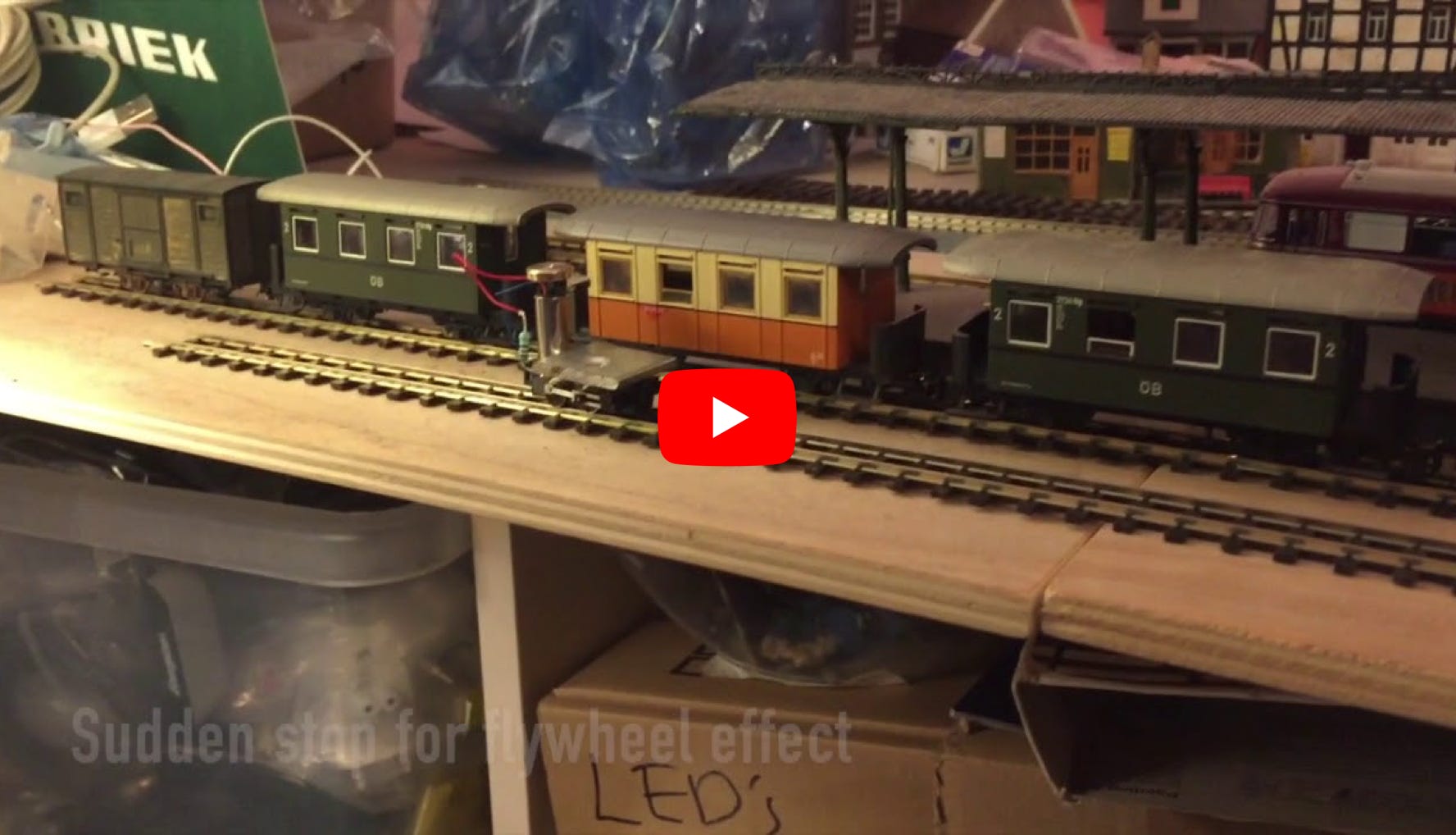

This video is with the 0716 motor. Later in the video there is an example with DCC.

•
