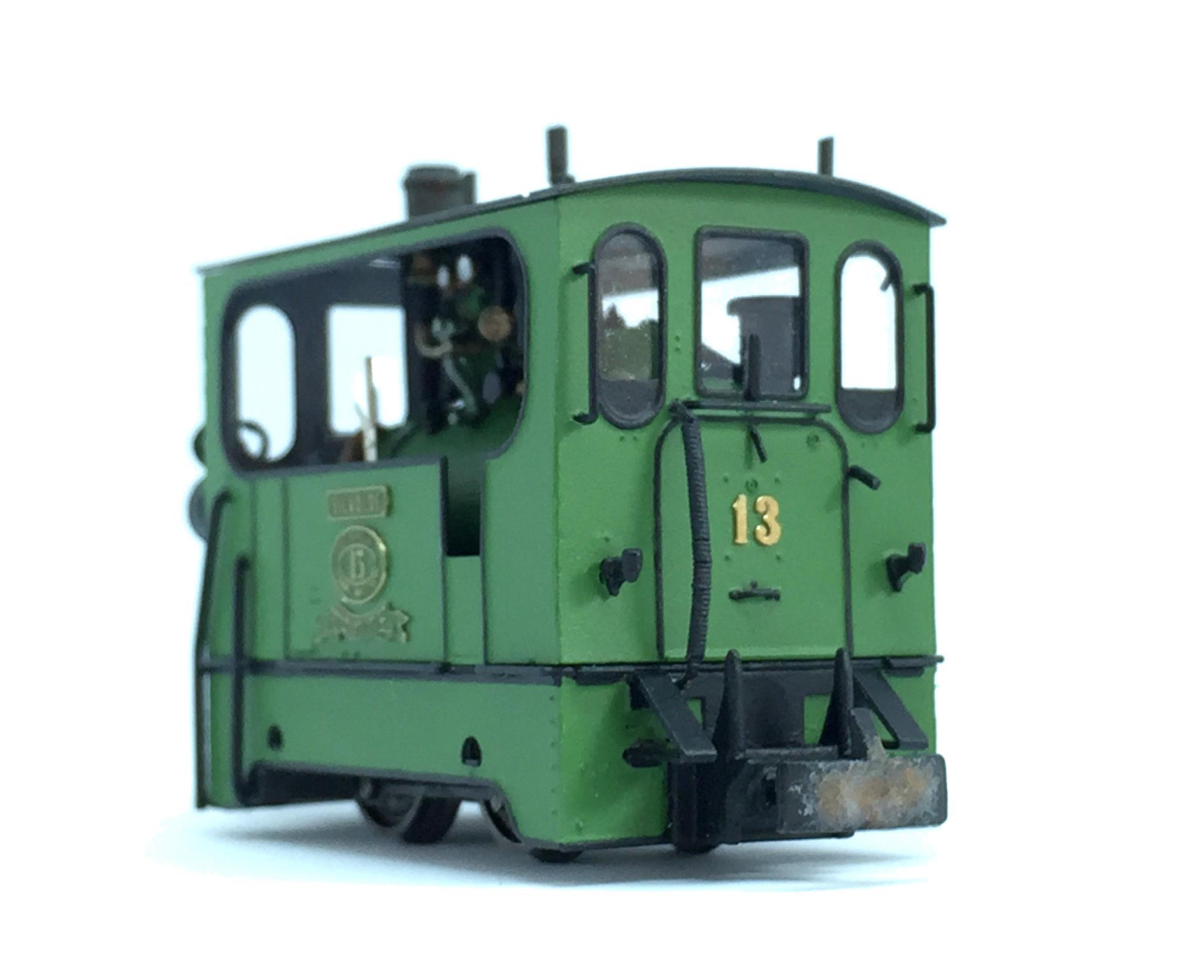

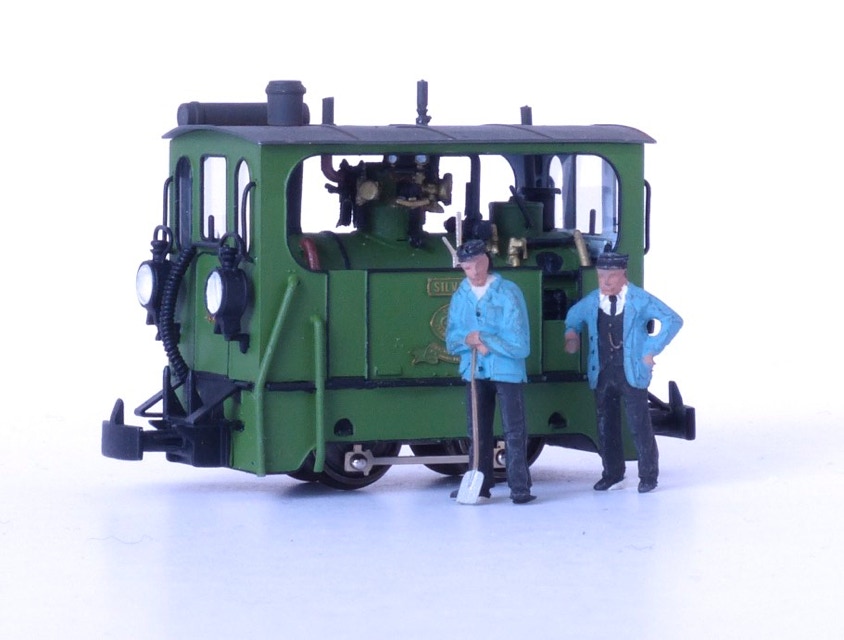

Het nieuwe juweeltje van de Tramfabriek is ├ę├ęn van de twee overgebleven Nederlandse Backer & Rueb kastvormige stoomtramlocomotieven. Met een spoorbreedte van 750 mm, werd het gebouwd in 1900 voor de Gelderse Tramwegmaatschappij, werd het na haar laatste rit in 1957 opgeslagen. Tussen 1975 en 1996 was het te zien in het Spoorwegmuseum te Utrecht, waarna het in 1996 terecht kwam in het Openluchtmuseum in Arnhem. Wegens plaatsgebrek kwam het in het jaar 2000 naar haar passende plek, het Smalspoormuseum in Valkenburg.┬á Hier staat het stationair en is ├ę├ęn van de belangrijkste overblijfselen van de beroemde Machinefabriek ÔÇśBredaÔÇÖ, beter bekend als Backer & Rueb. Deze locomotief mag dan ook met recht een echt ÔÇśBackertjeÔÇÖ genoemd worden.

´╗┐ÔÇő

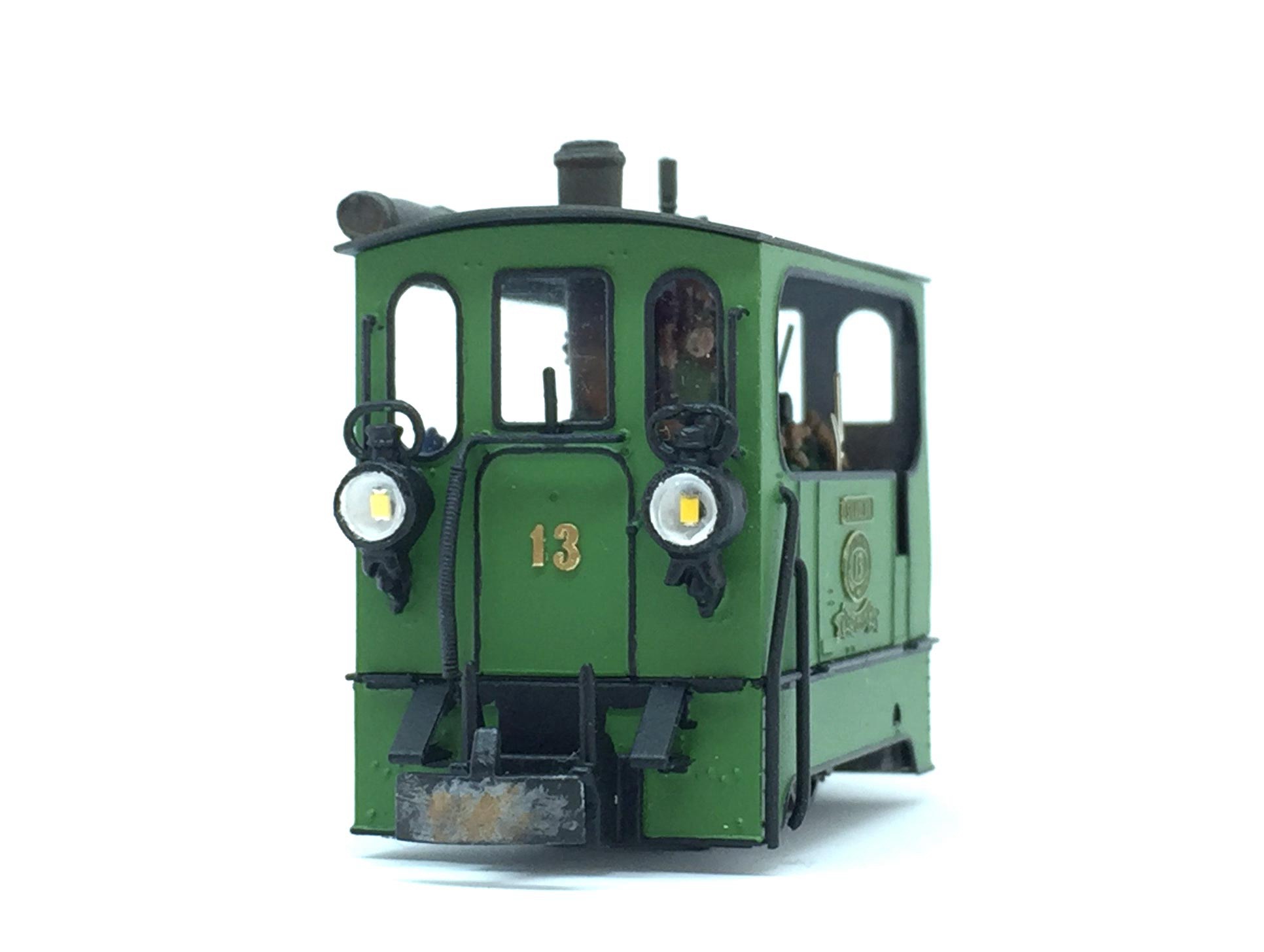

De Tramfabriek biedt deze Gelderse stoomtram aan zoals deze het laatst reed in 1957 en nu geconserveerd is in het Smalspoormuseum. Het is te verkrijgen in H0e en H0m.

´╗┐ÔÇő

SPECIFICATIES VAN HET MODEL

ÔÇó Kast van ge├źtst nieuwzilver

ÔÇó Losse onderdelen gegoten in messing

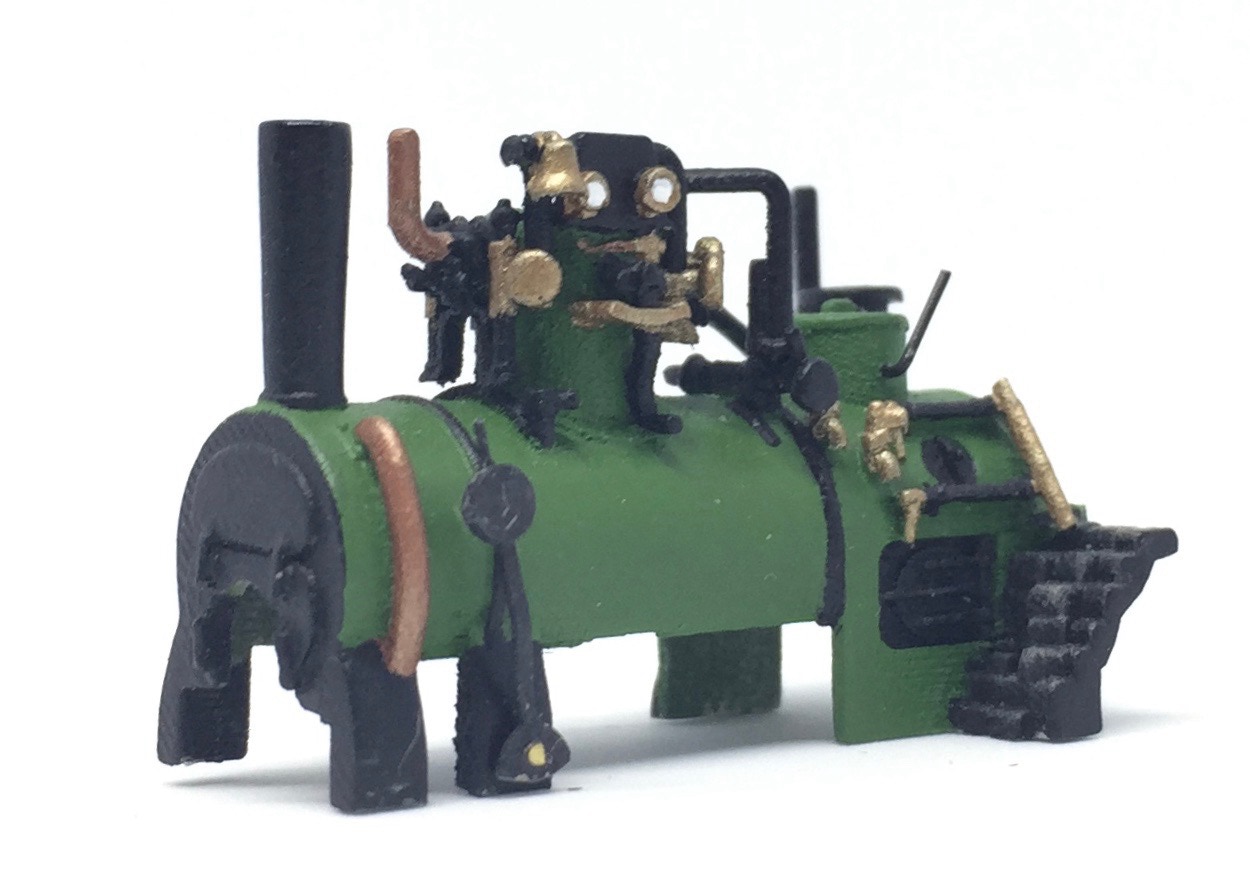

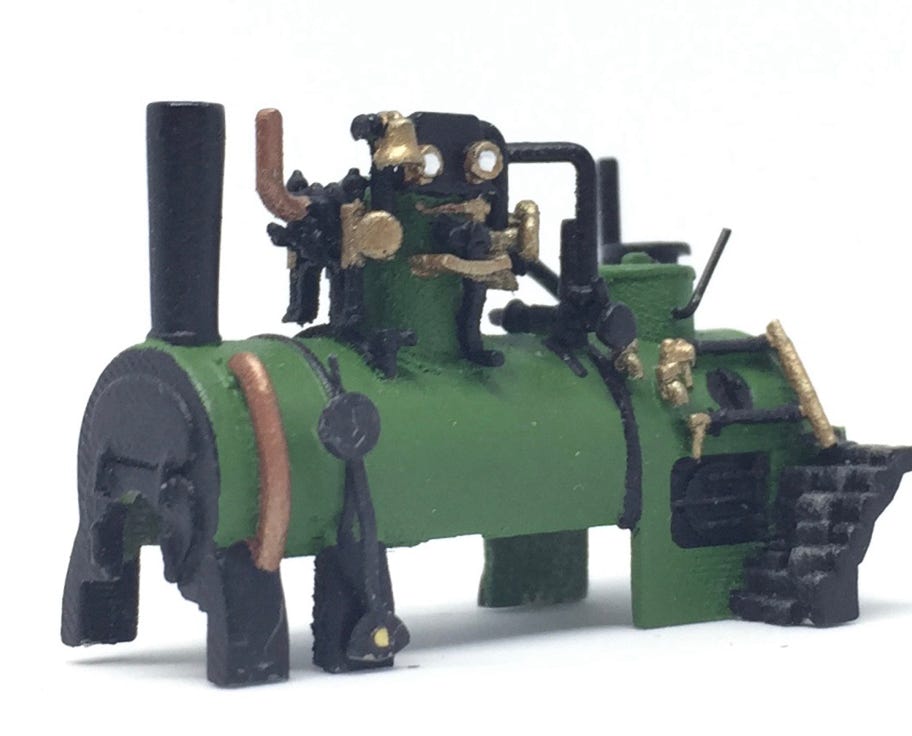

ÔÇó Accuraat gedetailleerde ketel geprint in 3D

ÔÇó┬áCompleet en reeds rijdend gebouwd messing motorblok met befaamde riemaandrijving, waarmee het langzaam rijden erg mooi gaat.

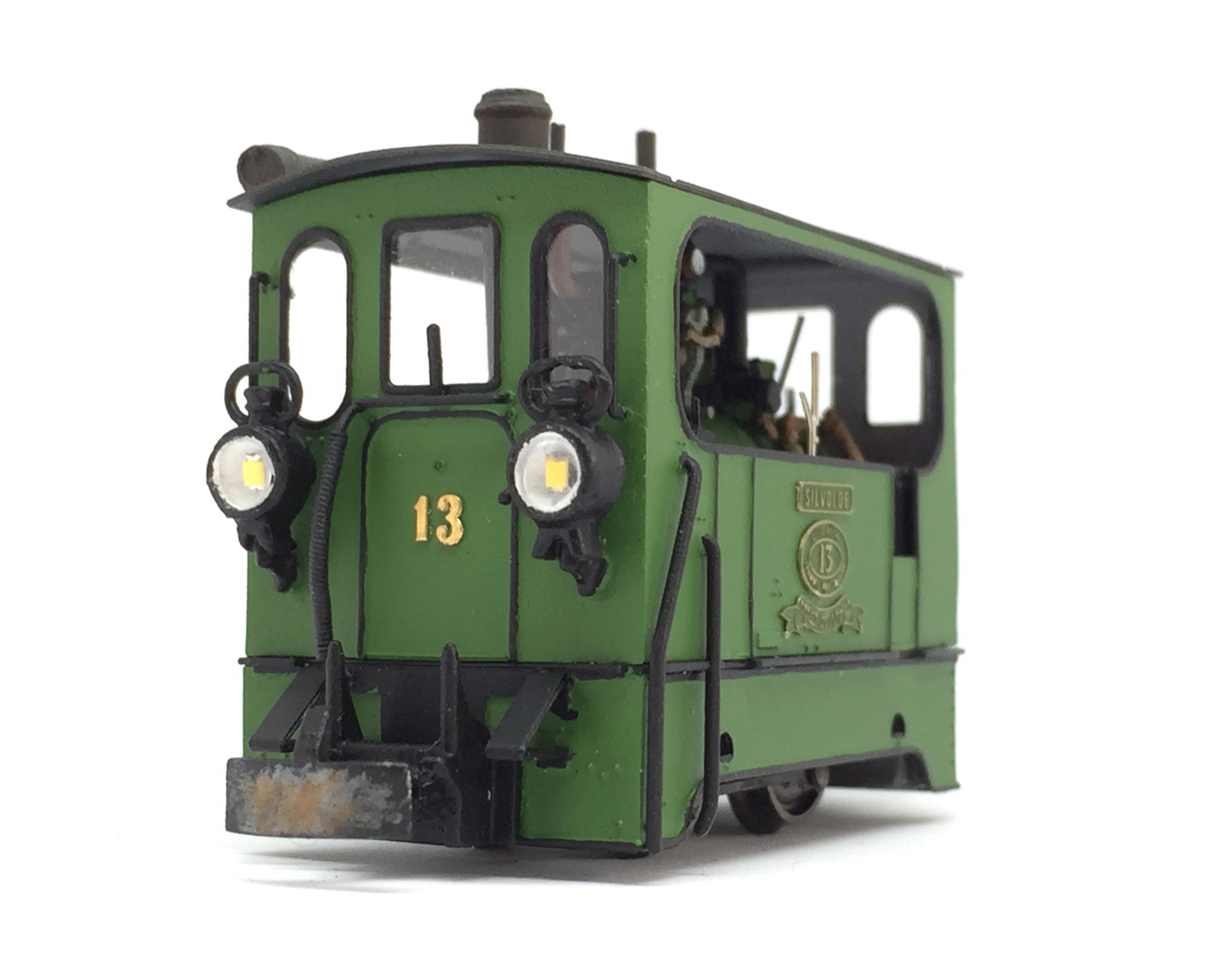

ÔÇó Werkende koplampen

ÔÇó 9mm schijfwielen met ge├»nstalleerde koppelstangen.

ÔÇó Koppelbaar met o.a. Egger-Bahn, Liliput H0e, Tillig H0e/H0m, Minitrains etc

´╗┐ÔÇő

DE AANDRIJVING

De in-huis ontwikkelde aandrijving is op zichzelf al speciale aandacht waard. Een klokanker motor, zoals u gewend bent van Faulhaber, en de riemaandrijving, gebouwd rondom een messing frame zorgen voor een perfecte lopende aandrijving. Zo soepel zag u een model met slechts een asafstand van 13,8 mm nog nooit lopen. De tram kan voorbeeldgetrouw langzaam het station binnen rijden.

DIGITAAL EN GELUID

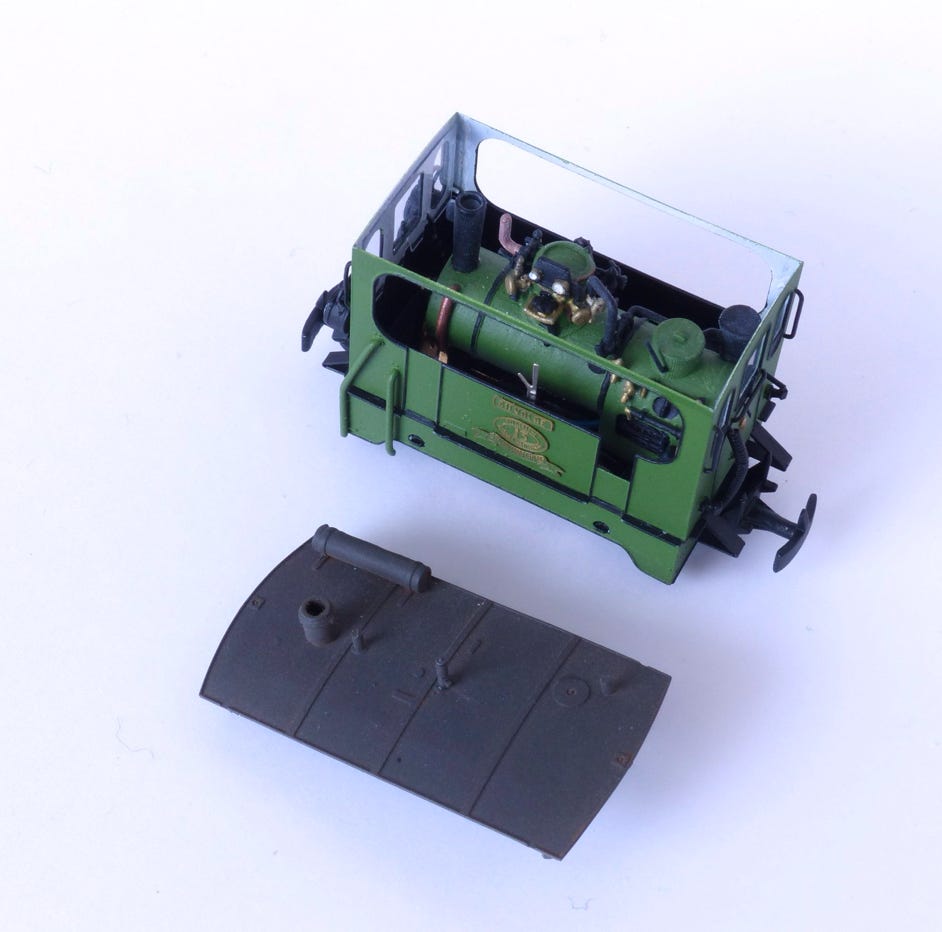

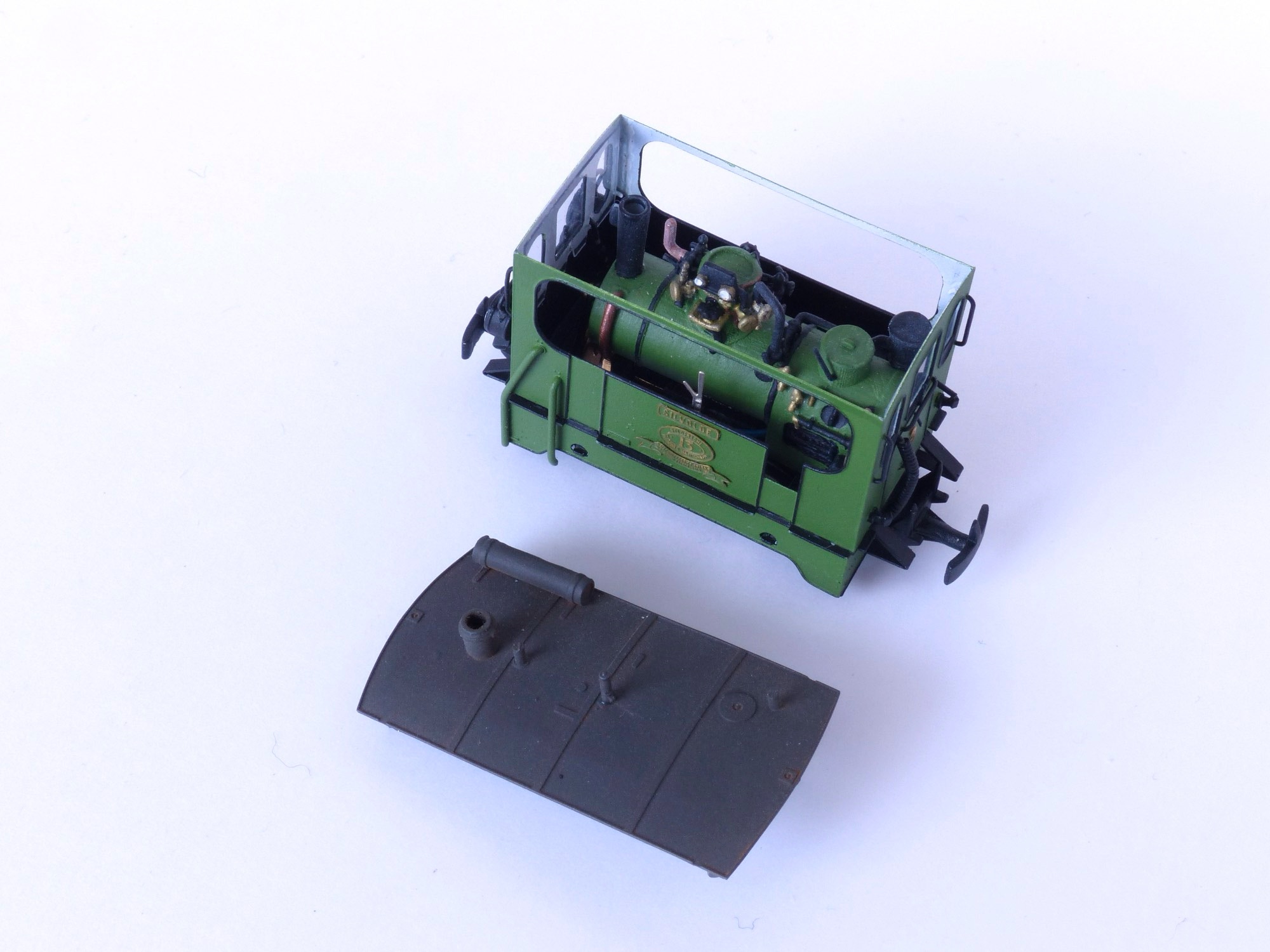

Verbazingwekkend genoeg kan het kleine model digitaal en digitaal met geluid geleverd worden. Bij de ontwikkeling is er veel waarde aan gehecht dat de decoders en speaker zo onzichtbaar mogelijk verstopt zitten. En dat is gelukt!

3. Lenz Silver+ Mini DCC decoder

4. Uhlenbrock Intellisound mM4

1. Speaker

2. Klankkast  - Resonance box

DIGITAL AND SOUND

It is almost mind blowing that this tiny model can be purchased with a digital decoder and digital with sound decoders. At the development process lots of attention has been paid to fitting the decoders and speakers as invisible as possible. And that worked out well!

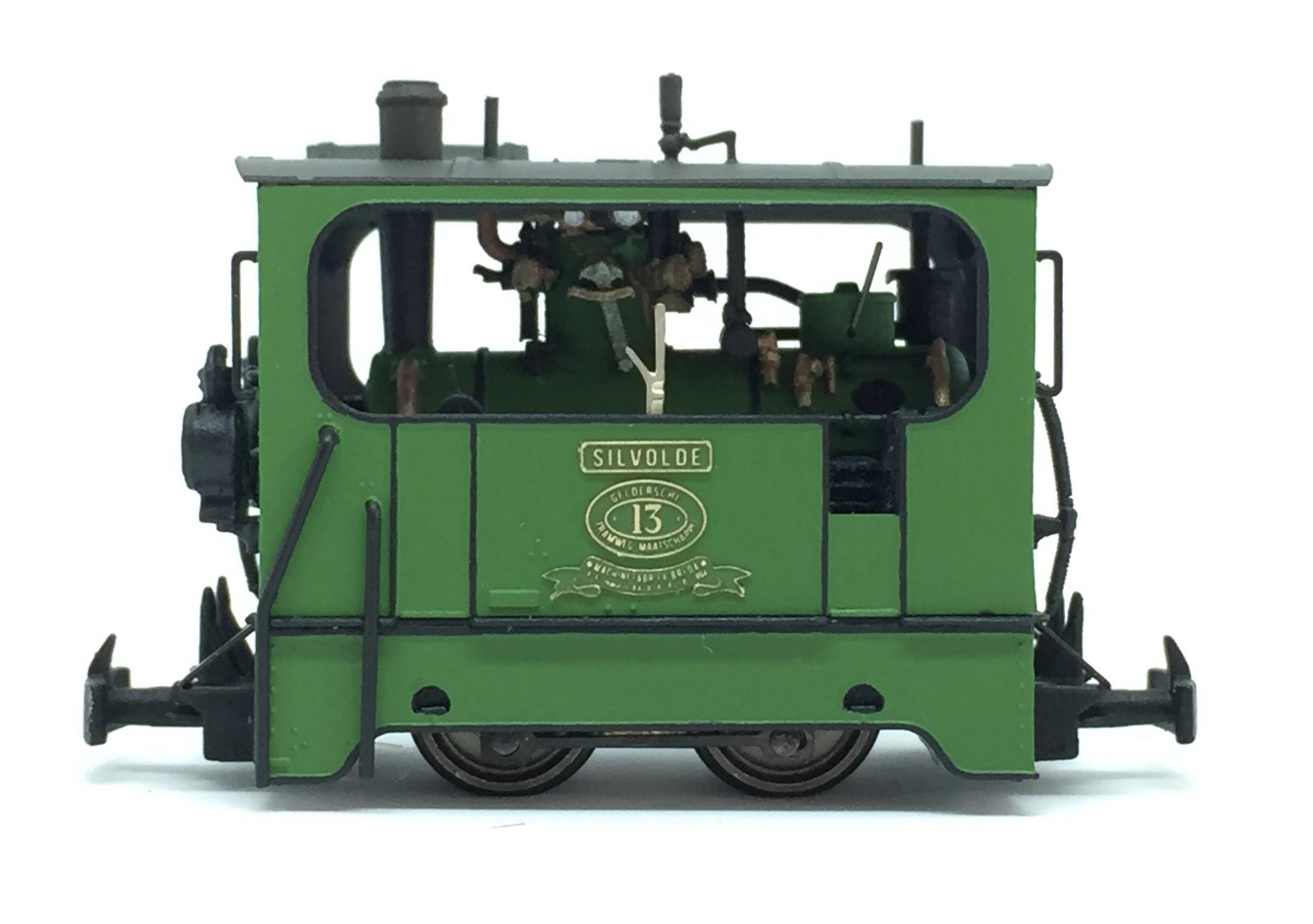

The new jewel of the Tramfabriek is the one of the remaining Dutch Backer & Rueb box style steam trams. This 750 mm narrow gauge locomotive was build in 1900 for the Gelderse Tramwegmaatschappij (Eastern part of the Netherlands) and was stored after its last ride in 1957. Between 1975 and 1996 it was on view in the Dutch railway museum in Utrecht and then passed it to the Open Air Museum in Arnhem. Because of the lack of space, ÔÇśSilvoldeÔÇÖ found a very suitable new home at the national Narrow Gauge Museum in Valkenburg. Here it is exhibited as a static object and is one of the most important remainders of the Machine factory ÔÇśBredaÔÇÖ, better known as Backer & Rueb. This is a locomotive you rightfully can call a ÔÇśBackertjeÔÇÖ.

´╗┐ÔÇő

The Tramfabriek is offering this locomotive in the appearance as it was last on the track and currently in the the Narrow Gauge Museum. It is available for H0e and H0m.

´╗┐ÔÇő

´╗┐ÔÇő

SPECIFICATIONS OF THE MODEL

ÔÇó Outer case of etched nickel silver

ÔÇó Small parts cast in brass

ÔÇó Accurate and fine detailed boiler, printed in 3D

ÔÇó Complete and built brass engine with famous belt drive technology. This locomotive can go realistically slow.

ÔÇó Working head lights

ÔÇó 9 mm disc wheels with fitted and coupling rods

ÔÇó Standard coupling, compatible with Egger-Bahn, Liliput H0e, Tillig H0e/H0m, Minitrains etc.

1

2

THE DRIVE

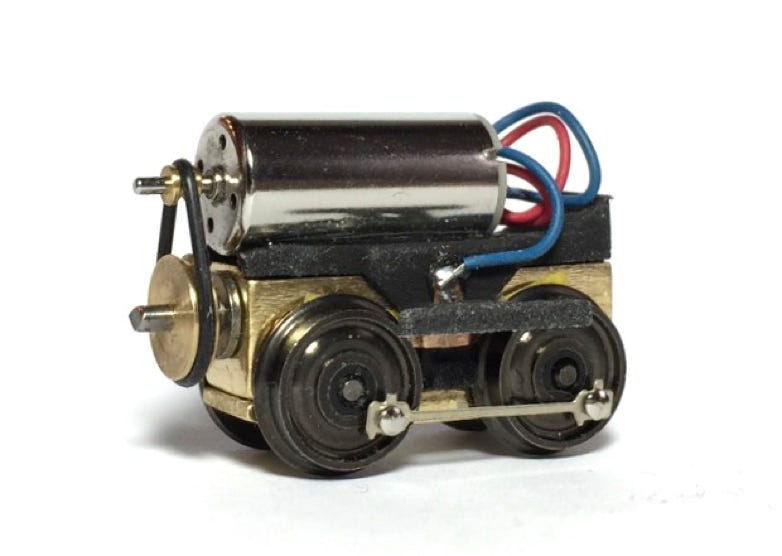

Only the in-house built drive is already worth your special attention. A coreless motor, similar to Faulhaber, and the belt drive are built around a brass frame. This all guarantees an excellent ride. This smooth you have never seen a model go, with only a wheelbase of 13.8 mm. The tram can pull slowly into the station with prototypical speed.

3

4

A

´╗┐Kies ´╗┐een ´╗┐pakket

´╗┐Voor ´╗┐dit ´╗┐model ´╗┐hoeft ´╗┐u ´╗┐niets ´╗┐meer ´╗┐te ´╗┐doen, ´╗┐behalve ´╗┐te ´╗┐aan ´╗┐de ´╗┐trafoknop ´╗┐te ´╗┐draaien ´╗┐en ´╗┐genieten. ´╗┐Het ´╗┐is ´╗┐volledig ´╗┐en ´╗┐met ´╗┐aandacht ´╗┐voor ´╗┐detail ´╗┐gebouwd ´╗┐en ´╗┐geschilderd ´╗┐(kast ´╗┐met ´╗┐airbrush ´╗┐gespoten, ´╗┐onderdelen ´╗┐individueel ´╗┐geschilderd).

´╗┐KANT ´╗┐EN ´╗┐KLAAR ´╗┐MODEL

´╗┐(niet ´╗┐meer ´╗┐verkrijgbaar)

A

Choose your model

For this model, there is not much you have to do, except for turning the knob on the controller and enjoy. It is completely and with care for detail built and painted. The box has been painted using an airbrush, individual parts are brush painted.

READY TO RUN MODEL

(not available anymore)

B

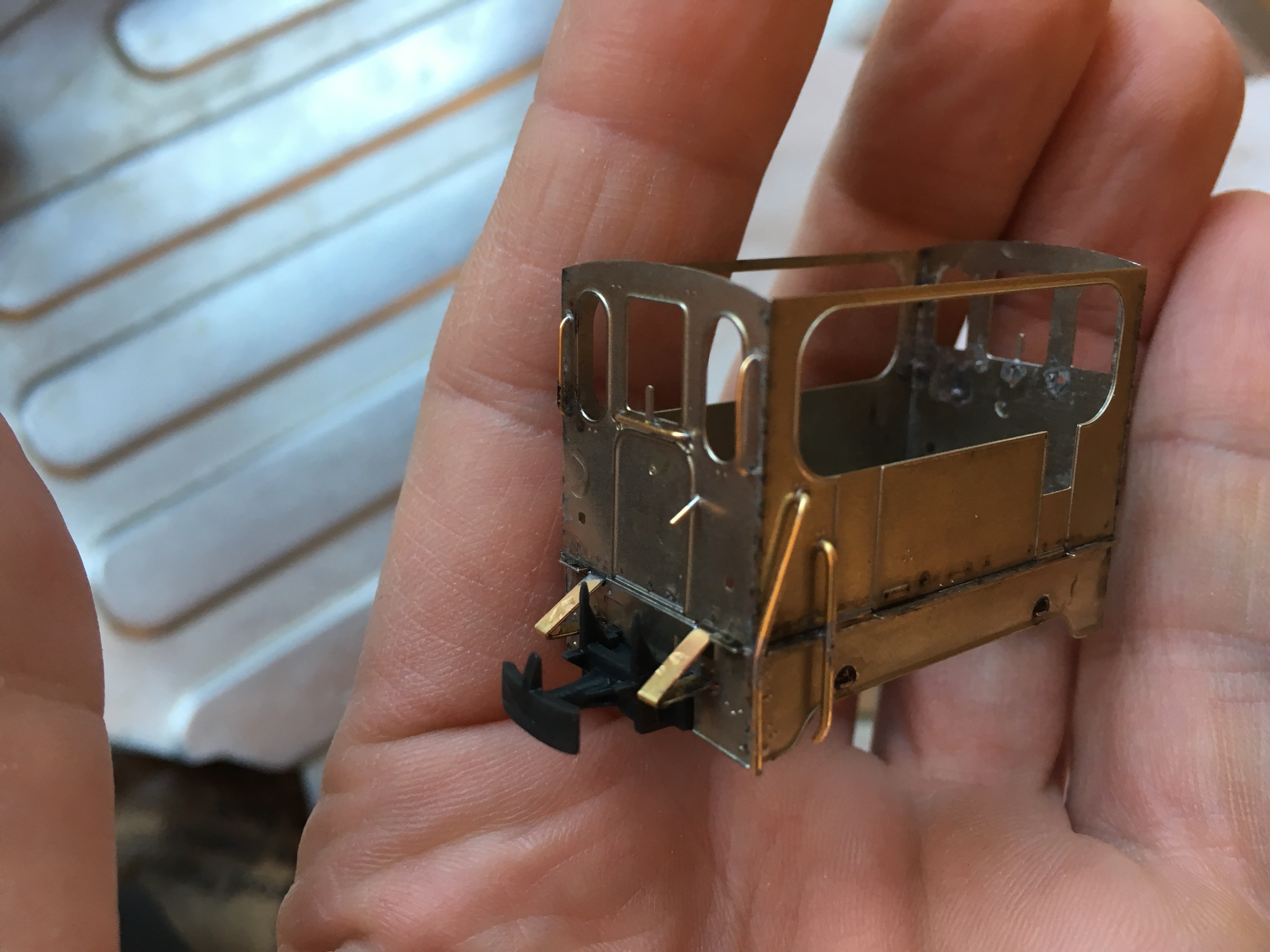

´╗┐Voor ´╗┐de ´╗┐enthousiaste ´╗┐zelfbouwer, ´╗┐die ´╗┐zich ´╗┐liever ´╗┐niet ´╗┐aan ´╗┐soldeerwerk ´╗┐voor ´╗┐de ´╗┐ietwat ´╗┐gevorderde ´╗┐wil ´╗┐wagen, ´╗┐is ´╗┐er ´╗┐het ´╗┐halfbouwpakket. ´╗┐Hierbij ´╗┐zijn ´╗┐alle ´╗┐losse ´╗┐wanden, ´╗┐bodemplaten ´╗┐en ´╗┐klampen ´╗┐van ´╗┐de ´╗┐kast ´╗┐al ´╗┐helemaal ´╗┐in ´╗┐elkaar ´╗┐gesoldeerd. ´╗┐De ´╗┐bouwer ´╗┐hoeft ´╗┐alleen ´╗┐de ´╗┐losse ´╗┐onderdelen ´╗┐te ´╗┐solderen ´╗┐of ´╗┐te ´╗┐plakken ´╗┐en ´╗┐het ´╗┐model ´╗┐te ´╗┐verven. ´╗┐Uiteraard ´╗┐is ´╗┐bij ´╗┐dit ´╗┐pakket ´╗┐de ´╗┐aandrijving ´╗┐al ´╗┐volledig ´╗┐gebouwd.

´╗┐ÔÇë

´╗┐Specificaties ´╗┐van ´╗┐het ´╗┐bouwpakket:

´╗┐ÔÇó ´╗┐Kast ´╗┐reeds ´╗┐gesoldeerd, ´╗┐dak ´╗┐reeds ´╗┐in ´╗┐vorm ´╗┐gevouwen.

´╗┐ÔÇó ´╗┐Losse ´╗┐onderdelen ´╗┐zelf ´╗┐te ´╗┐monteren ´╗┐(naar ´╗┐keuze ´╗┐te ´╗┐solderen ´╗┐of ´╗┐lijmen).

´╗┐ÔÇó ´╗┐3D ´╗┐print ´╗┐van ´╗┐ketel ´╗┐is ´╗┐reeds ´╗┐ontvet ´╗┐van ´╗┐de ´╗┐was ´╗┐van ´╗┐het ´╗┐productieproces, ´╗┐maar ´╗┐nog ´╗┐niet ´╗┐geverfd.

´╗┐┬áÔÇó ´╗┐Compleet ´╗┐gebouwde ´╗┐aandrijving ´╗┐met ´╗┐9 ´╗┐mm ´╗┐schijfwielen ´╗┐en ´╗┐gemonteerde ´╗┐koppelstangen.

´╗┐ÔÇó ´╗┐Nummer- ´╗┐en ´╗┐naamplatenset ´╗┐inbegrepen, ´╗┐naar ´╗┐keuze ´╗┐met ´╗┐12 ´╗┐ÔÇśUlftÔÇÖ ´╗┐of ´╗┐13 ´╗┐ÔÇśSilvoldeÔÇÖ.

´╗┐ÔÇó ´╗┐Wordt ´╗┐geleverd ´╗┐in ´╗┐hard ´╗┐plastic ´╗┐presentatiedoosje.

´╗┐ÔÇë

´╗┐Verf ´╗┐wordt ´╗┐niet ´╗┐meegeleverd. ´╗┐Een ´╗┐bouwhandleiding ´╗┐en ´╗┐verfadvies ´╗┐wordt ´╗┐hier ´╗┐gepubliceerd.

´╗┐HALFBOUWPAKKET

B

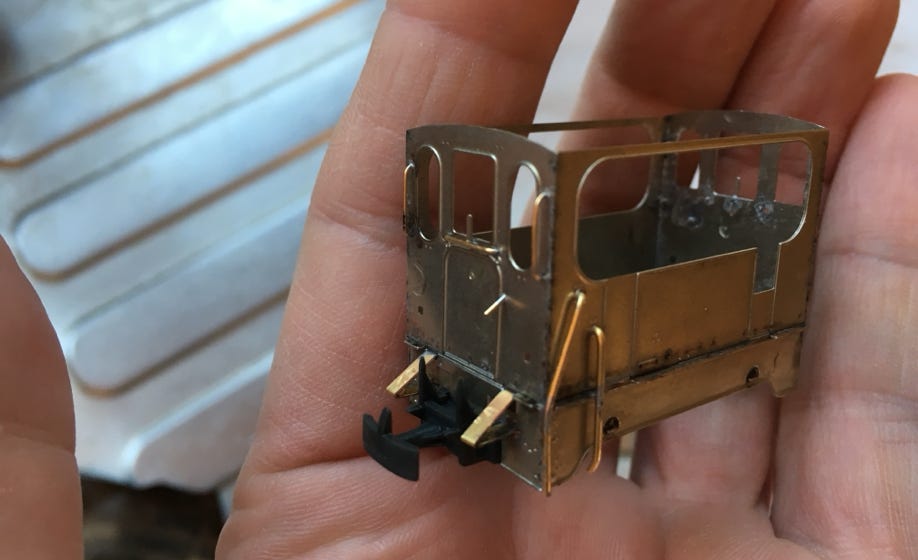

´╗┐If ´╗┐you ´╗┐are ´╗┐someone ´╗┐who ´╗┐like ´╗┐to ´╗┐build ´╗┐models, ´╗┐but ´╗┐still ´╗┐are ´╗┐shying ´╗┐away ´╗┐from ´╗┐more ´╗┐advanced ´╗┐soldering, ´╗┐there ´╗┐is ´╗┐the ´╗┐Semi-built ´╗┐kit. ´╗┐Here ´╗┐all ´╗┐individual ´╗┐panes ´╗┐and ´╗┐jacking ´╗┐points ´╗┐are ´╗┐soldered ´╗┐for ´╗┐you. ´╗┐The ´╗┐builder ´╗┐can ´╗┐glue ´╗┐(or ´╗┐solder) ´╗┐the ´╗┐smaller ´╗┐parts ´╗┐and ´╗┐to ´╗┐paint ´╗┐the ´╗┐model. ´╗┐It ´╗┐goes ´╗┐without ´╗┐saying ´╗┐that ´╗┐with ´╗┐this ´╗┐kit ´╗┐the ´╗┐drive ´╗┐is ´╗┐completely ´╗┐pre-build.

´╗┐ÔÇë

´╗┐Specifications ´╗┐of ´╗┐the ´╗┐the ´╗┐Semi-build ´╗┐kit:

´╗┐ÔÇó ´╗┐Box ´╗┐panes ´╗┐soldered, ´╗┐roof ´╗┐pre-shaped

´╗┐ÔÇó ´╗┐Loose ´╗┐parts ´╗┐to ´╗┐fit ´╗┐(your ´╗┐choice ´╗┐to ´╗┐glue ´╗┐or ´╗┐solder)

´╗┐ÔÇó ´╗┐3D ´╗┐printed ´╗┐boiler ´╗┐with ´╗┐wax ´╗┐of ´╗┐production ´╗┐process ´╗┐already ´╗┐removed, ´╗┐not ´╗┐painted ´╗┐yet

´╗┐ÔÇó ´╗┐Completely ´╗┐build ´╗┐drive ´╗┐with ´╗┐9 ´╗┐mm ´╗┐disc ´╗┐wheels ´╗┐and ´╗┐fitted ´╗┐coupling ´╗┐rods.

´╗┐ÔÇó ´╗┐Names ´╗┐and ´╗┐number ´╗┐plates ´╗┐included. ´╗┐Choice ´╗┐of ´╗┐number ´╗┐and ´╗┐name ´╗┐12 ´╗┐ÔÇśUlftÔÇÖ ´╗┐or ´╗┐13 ´╗┐ÔÇśSilvoldeÔÇÖ

´╗┐ÔÇó ´╗┐Delivered ´╗┐in ´╗┐plastic ´╗┐presentation ´╗┐box

´╗┐ÔÇë

´╗┐Paint ´╗┐is ´╗┐not ´╗┐part ´╗┐of ´╗┐the ´╗┐kit. ´╗┐A ´╗┐detailed ´╗┐building ´╗┐instruction ´╗┐and ´╗┐advise ´╗┐on ´╗┐paints ´╗┐to ´╗┐use ´╗┐will ´╗┐be ´╗┐published ´╗┐on ´╗┐this ´╗┐website.

´╗┐SEMI-BUILT ´╗┐KIT

C

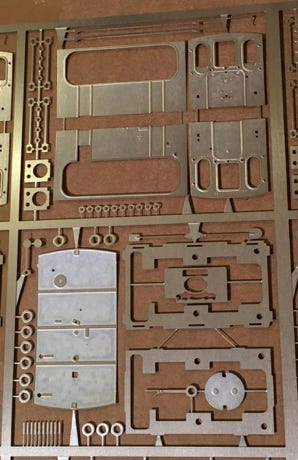

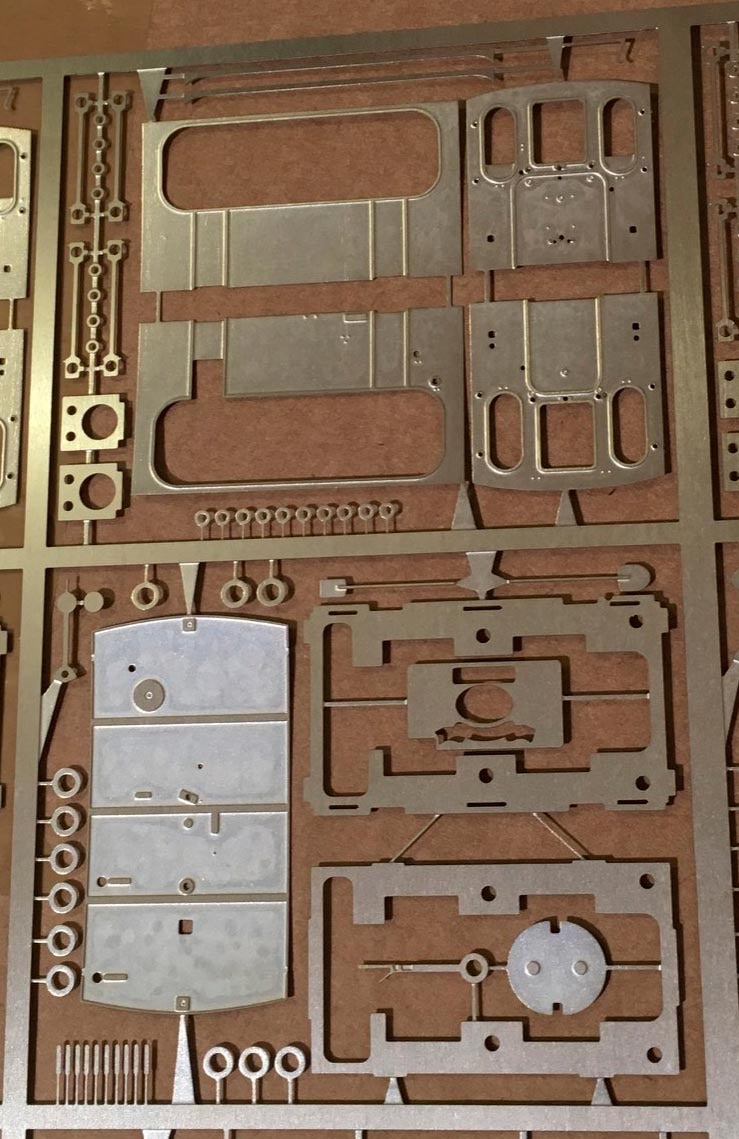

´╗┐Schrikt ´╗┐u ´╗┐niet ´╗┐terug ´╗┐om ´╗┐acht ´╗┐wandjes ´╗┐van ´╗┐0.3mm ´╗┐dik ´╗┐in ´╗┐elkaar ´╗┐te ´╗┐zetten ´╗┐en ´╗┐het ´╗┐dak ´╗┐licht ´╗┐in ´╗┐vorm ´╗┐te ´╗┐buigen,┬á ´╗┐dan ´╗┐is ´╗┐het ´╗┐volledige ´╗┐zelfbouwpakket ´╗┐iets ´╗┐voor ´╗┐u. ´╗┐Door ´╗┐gebruik ´╗┐makend ´╗┐van ´╗┐de ´╗┐tabjes ´╗┐die ´╗┐in ´╗┐de ´╗┐bodemplaten ´╗┐schuiven ´╗┐is ´╗┐het ´╗┐niet ´╗┐erg ´╗┐moeilijk, ´╗┐maar ´╗┐het ´╗┐is ´╗┐geen ´╗┐beginnerswerk. ´╗┐Maar ´╗┐net ´╗┐als ´╗┐bij ´╗┐de ´╗┐andere ´╗┐pakketten ´╗┐is ´╗┐de ´╗┐aandrijving ´╗┐al ´╗┐volledig ´╗┐gebouwd.

´╗┐ÔÇë

´╗┐Specificaties ´╗┐van ´╗┐het ´╗┐bouwpakket:

´╗┐ÔÇó ´╗┐Nieuwzilveren ´╗┐onderdelen ´╗┐los ´╗┐geleverd.

´╗┐ÔÇó ´╗┐Losse ´╗┐onderdelen ´╗┐zelf ´╗┐te ´╗┐monteren ´╗┐(naar ´╗┐keuze ´╗┐te ´╗┐solderen ´╗┐of ´╗┐lijmen).

´╗┐ÔÇó ´╗┐3D ´╗┐print ´╗┐van ´╗┐ketel ´╗┐is ´╗┐reeds ´╗┐ontvet ´╗┐van ´╗┐de ´╗┐was ´╗┐van ´╗┐het ´╗┐productieproces, ´╗┐maar ´╗┐nog ´╗┐niet ´╗┐geverfd.

´╗┐┬áÔÇó ´╗┐Compleet ´╗┐gebouwde ´╗┐aandrijving ´╗┐met ´╗┐schijfwielen ´╗┐en ´╗┐gemonteerde ´╗┐koppelstangen.

´╗┐ÔÇó ´╗┐Nummer- ´╗┐en ´╗┐naamplatenset ´╗┐inbegrepen, ´╗┐naar ´╗┐keuze ´╗┐met ´╗┐12 ´╗┐ÔÇśUlftÔÇÖ ´╗┐of ´╗┐13 ´╗┐ÔÇśSilvoldeÔÇÖ.

´╗┐ÔÇó ´╗┐Wordt ´╗┐geleverd ´╗┐in ´╗┐hard ´╗┐plastic ´╗┐presentatiedoosje.

´╗┐ÔÇë

´╗┐Verf ´╗┐wordt ´╗┐niet ´╗┐meegeleverd. ´╗┐Een ´╗┐bouwhandleiding ´╗┐en ´╗┐verfadvies ´╗┐wordt ´╗┐hier ´╗┐gepubliceerd.

VOLLEDIG ZELFBOUWPAKKET

C

´╗┐When ´╗┐you ´╗┐are ´╗┐not ´╗┐afraid ´╗┐of ´╗┐putting ´╗┐0.3 ´╗┐mm ´╗┐thin ´╗┐walls ´╗┐together ´╗┐and ´╗┐to ´╗┐shape ´╗┐the ´╗┐roof, ´╗┐then ´╗┐this ´╗┐Do ´╗┐It ´╗┐Completely ´╗┐Yourself ´╗┐kit ´╗┐is ´╗┐for ´╗┐you. ´╗┐Using ´╗┐the ´╗┐tabs, ´╗┐putting ´╗┐the ´╗┐panes ´╗┐together ´╗┐isnÔÇÖt ´╗┐difficult, ´╗┐but ´╗┐I ´╗┐donÔÇÖt ´╗┐think ´╗┐it ´╗┐is ´╗┐something ´╗┐that ´╗┐someone ´╗┐with ´╗┐no ´╗┐experience ´╗┐in ´╗┐soldering ´╗┐will ´╗┐be ´╗┐comfortable ´╗┐with. ´╗┐But ´╗┐just ´╗┐as ´╗┐with ´╗┐the ´╗┐above ´╗┐offerings, ´╗┐the ´╗┐drive ´╗┐is ´╗┐completely ´╗┐build.

´╗┐ÔÇë

´╗┐Specifications ´╗┐of ´╗┐the ´╗┐kit:

´╗┐ÔÇó ´╗┐Nickel ´╗┐silver ´╗┐parts

´╗┐ÔÇó ´╗┐Small ´╗┐parts ´╗┐to ´╗┐fit ´╗┐yourself ´╗┐(choice ´╗┐of ´╗┐soldering ´╗┐or ´╗┐glueing)

´╗┐ÔÇó ´╗┐3D ´╗┐printed ´╗┐boiler ´╗┐with ´╗┐wax ´╗┐of ´╗┐production ´╗┐process ´╗┐already ´╗┐removed, ´╗┐not ´╗┐painted ´╗┐yet

´╗┐ÔÇó ´╗┐Completely ´╗┐build ´╗┐drive ´╗┐with ´╗┐9 ´╗┐mm ´╗┐disc ´╗┐wheels ´╗┐and ´╗┐fitted ´╗┐coupling ´╗┐rods.

´╗┐ÔÇó ´╗┐Names ´╗┐and ´╗┐number ´╗┐plates ´╗┐included. ´╗┐Choice ´╗┐of ´╗┐number ´╗┐and ´╗┐name ´╗┐12 ´╗┐ÔÇśUlftÔÇÖ ´╗┐or ´╗┐13 ´╗┐ÔÇśSilvoldeÔÇÖ

´╗┐ÔÇó ´╗┐Delivered ´╗┐in ´╗┐plastic ´╗┐presentation ´╗┐box

´╗┐ÔÇë

´╗┐Paint ´╗┐is ´╗┐not ´╗┐part ´╗┐of ´╗┐the ´╗┐kit. ´╗┐A ´╗┐detailed ´╗┐building ´╗┐instruction ´╗┐and ´╗┐advise ´╗┐on ´╗┐paints ´╗┐to ´╗┐use ´╗┐will ´╗┐be ´╗┐published ´╗┐on ´╗┐this ´╗┐website.

´╗┐DICY ´╗┐(DO ´╗┐IT ´╗┐COMPLETELY ´╗┐YOURSELF) ´╗┐KIT

De bouwpakketten zijn uit voorraad leverbaar of binnen een paar dagen. Vraag voor de kant en klaar modellen naar de levertijd. U betaalt pas als de bestelling voor u klaar staat.

´╗┐ÔÇő

Een tram met geluid rijdt helaas niet (goed) op een analoge baan.

The kits are available from stock or within a few days. Ask for Ready to run models for production time. You do not have to pay a deposit and only pay when the order is ready for you.

´╗┐ÔÇő

A tram with sound does not run (well) on an analog track.
