Upgrade Minitrix Pendolino

to 12V coreless motor

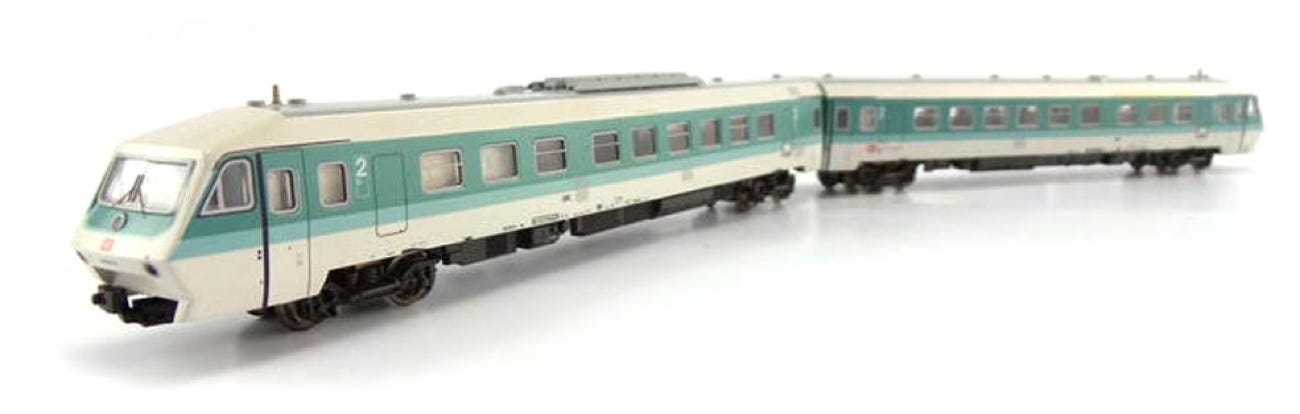

Fits Minitrix art. 12887

What you need for conversion set

- The model and upgrade kit

- Small flat screwdriver

- Soldering iron 15W/25W

- Something to cut


Installation time: Around 40 minutes

Difficulty: You might find taking off the flywheel a challenge, but there is a great video explaining you how you can do this confidently.

1

It’s a relatively easy model to convert, as there is no worm to gear interaction. Hold the sides of the housing a part and pull the chassis out of the housing.

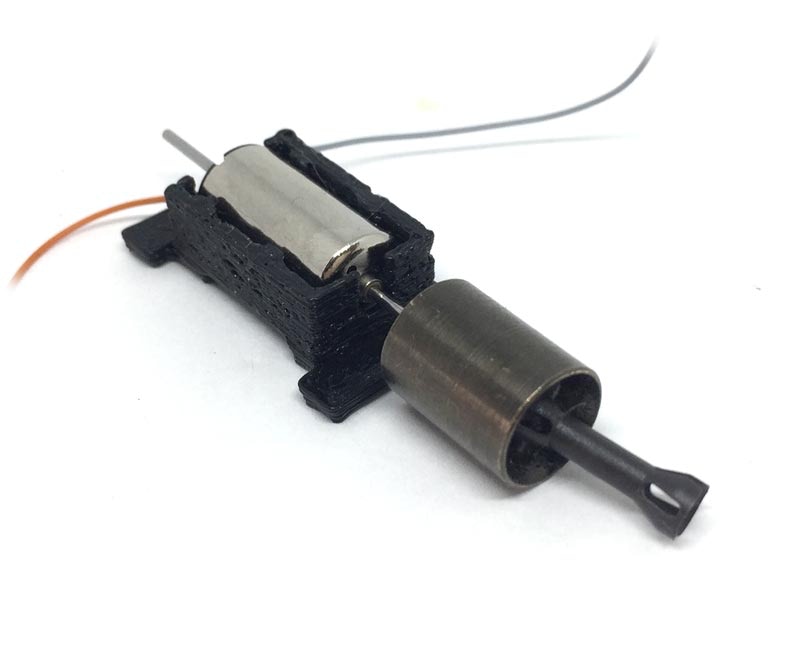

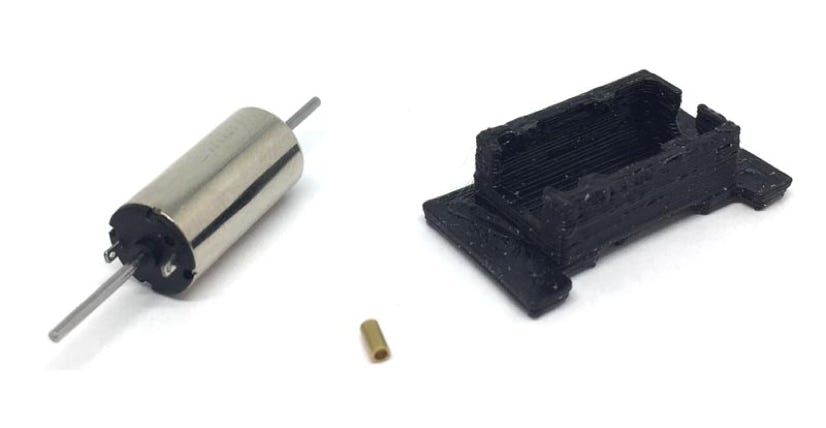

Contents of the kit

2

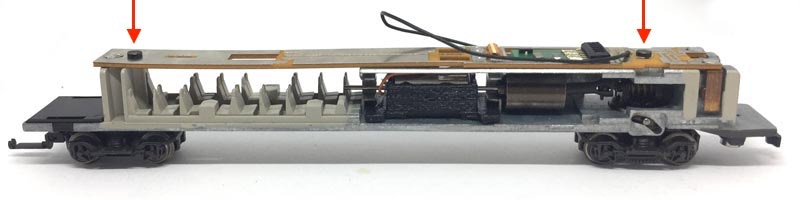

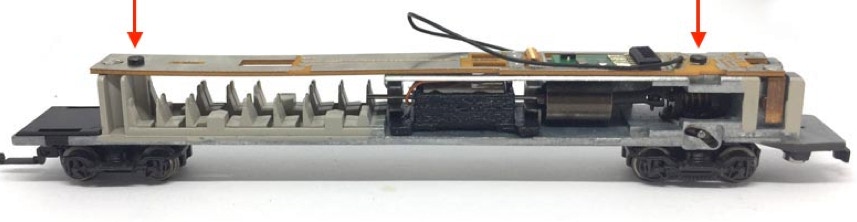

Remove the two screws that hold the electronics board in place.



KASTENLOK INDEX

Question? Just reach out!

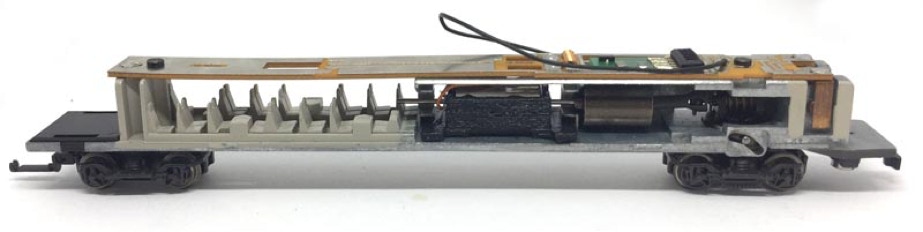

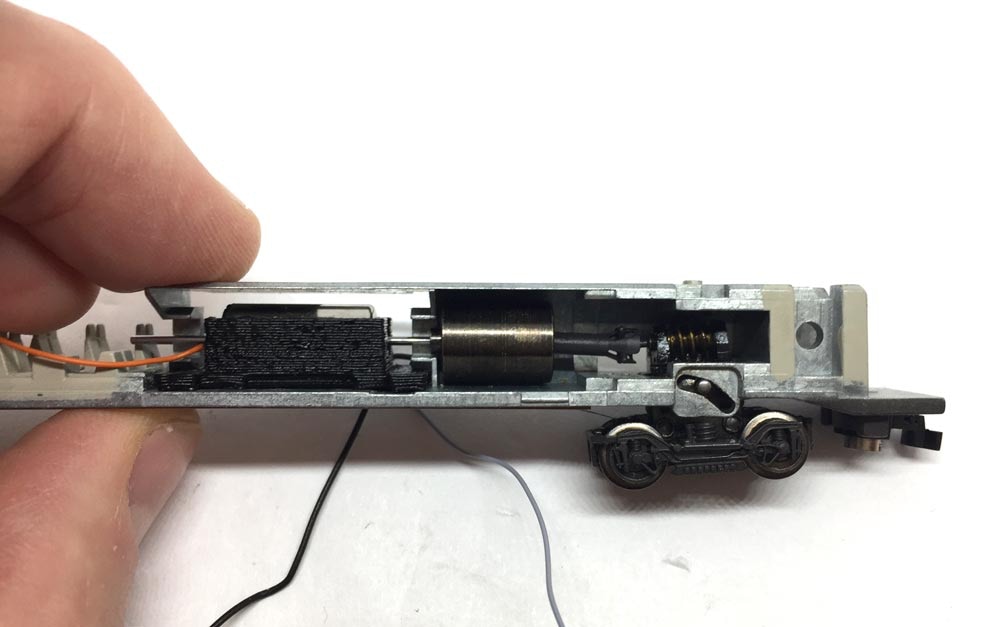

(This shows a chassis with an already replaced motor)

3

4

To take the flywheel off and you don’t know how to approach this, I think you will find this video very enlightening.

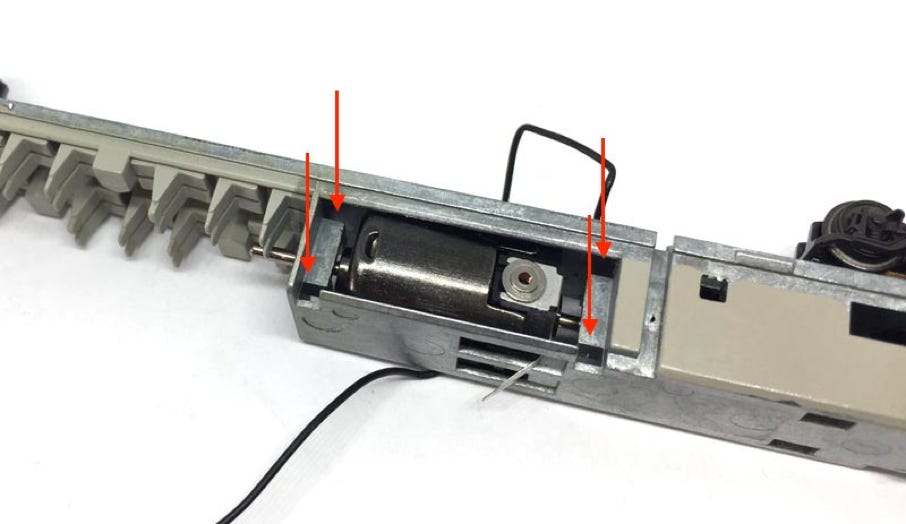

Remove the two clips that hold the motor in place.

5

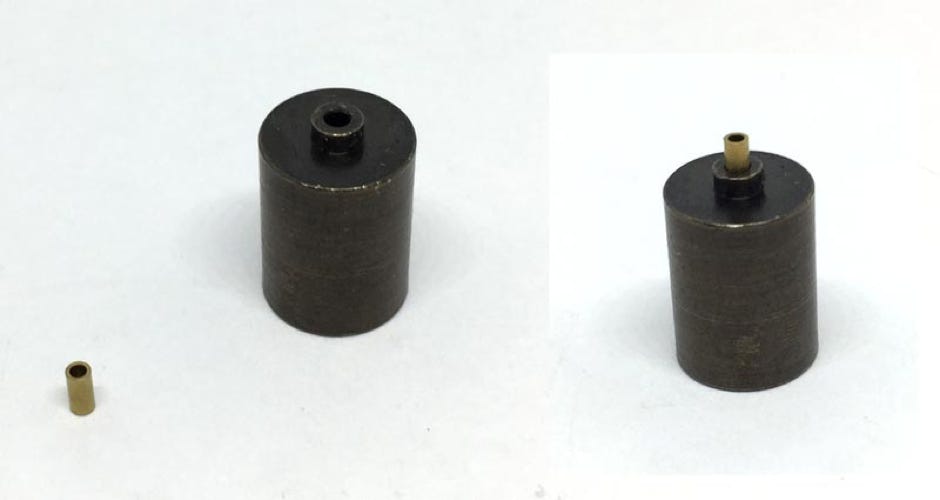

Tap the brass adapter in the flywheel.

Slide the flywheel on the motor shaft (non wire side). You might not need to use glue, as most likely  it will be a press fit and stay in place.

6

When soldering the wires, note there is a little + (plus) on the side of one contact. I’ve connected the orange wire to the plus, here.

7

When you test fit the assembly in the model, it will be obvious where the flywheel has to be positioned.

8

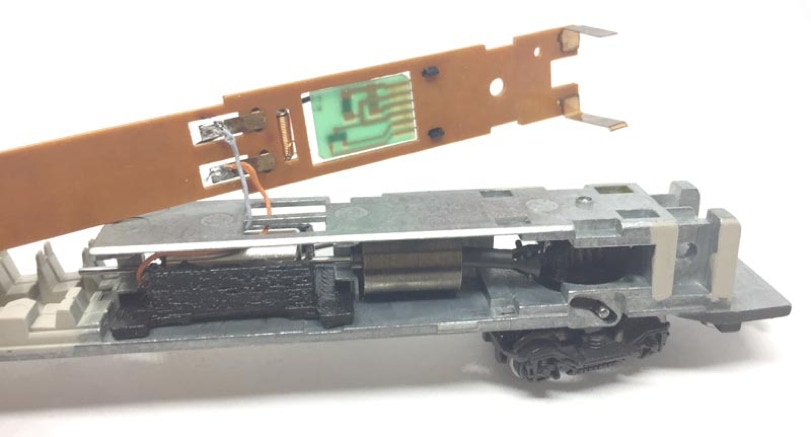

Solder the wires on the underside of the electronics board. The orange wire is the + wire. When fitting the board back on the model, make sure the wires go through the hole and are not squashed between board and metal chassis.

9

Test it and when it’s all running perfectly, place the housing again. If you want to convert it to DCC, the sweet settings for several brands of decoders are explained on this page (click link). A 6 pin decoder for this model can be gotten here on this website.

Digital conversion

This motor upgrade kit can very well be converted to DCC. Check the digital setting page, for many decoders, to get the best driving experience.

Deze motor upgrade kit kan ook aangestuurd worden door DCC. Kijk op de digitale instellingen pagina voor de CV instellingen voor de grote decodermerken, om de beste rijervaring te hebben.

And one more model has been brought back to the future!
