Lighting

The Tramfabriek has some great offers on LED lighting solutions.

NEW

One single LED activated with a small magnet. Now you can have light in practically everything!

Click here to read more…

The Tramfabriek offers the smallest Train-O-Matic coach light solution, suitable for H0e, 009, N, Z or small H0/OO carriages.

Click to read more…

When building your own loco, this is the easiest solution to install lights.

Click to read more…

Easy add rear lighting to your rolling stock with these Train-O-Matic light boards.

Click to read more…

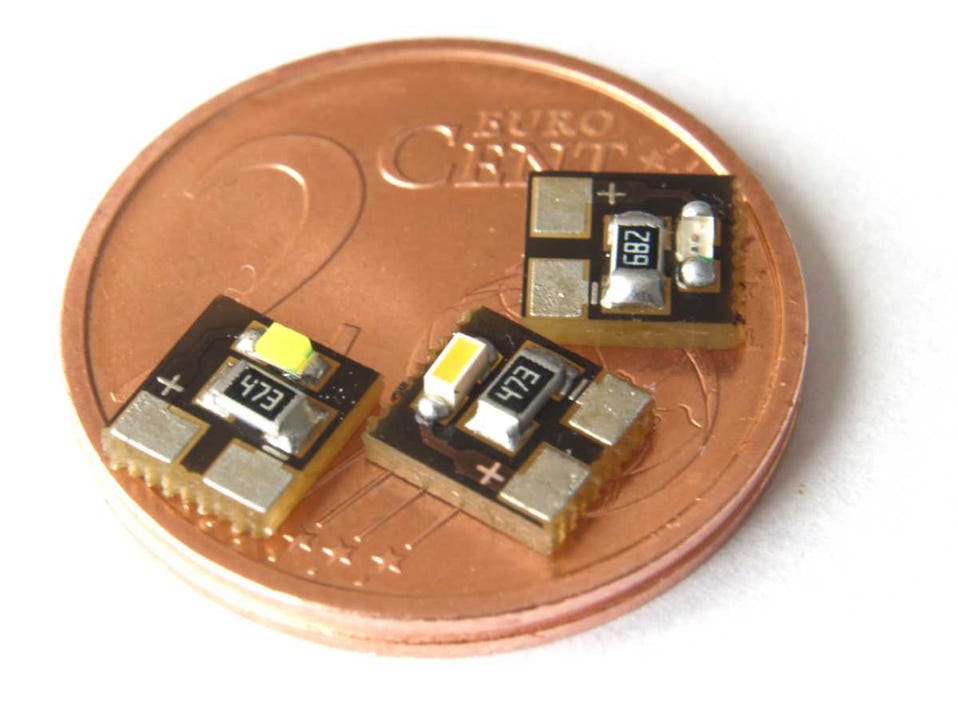

Shine Micro single LED

Single LED with resistor for connecting to power source, like decoder or direct to 12V DC current.

MagnoLED

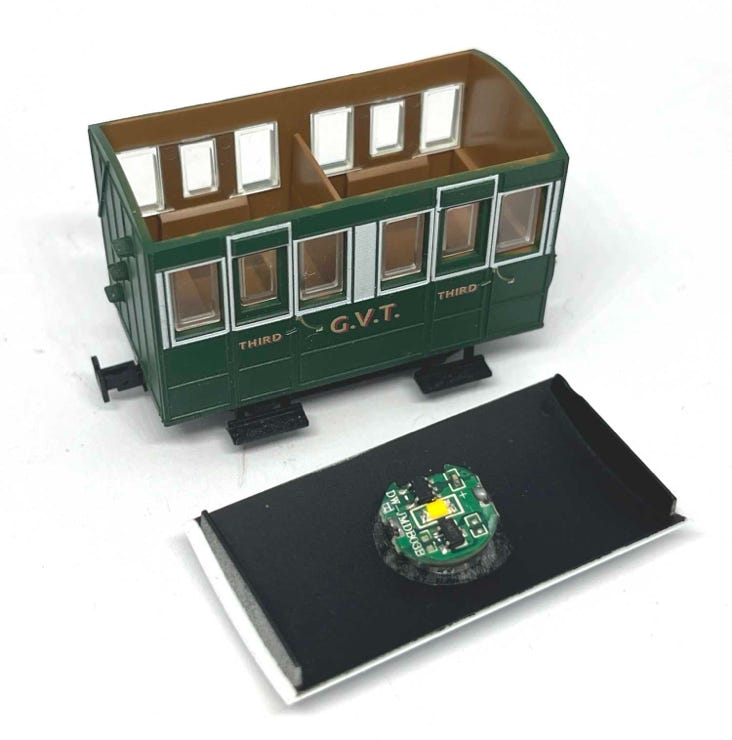

Introducing MagnoLED. Who would have thought you could fit lighting in Peco’s Glyn Valley Tramway coaches? Or in a Bug Box? Even in Lego? Now you can!

Credit has to go to Rapidtrains Inc, who introduced ‘Easy Peasy’ named LED lighting, controlled with a magic wand (magnet on a stick) in their rolling stock. It’s the easiest way to add light to a coach, without having to add any other electronics than sticking the light bar under the roof. No need for wiring or contact drag on the wheels. Especially in the smaller scales, this has to be avoided as much as possible, as this will make it much harder for the little locomotives to pull a rake of coaches. But the light bars were not easy to get and most of all, still too long for the smaller scales. No longer!

A product doesn’t come much simpler than this: One LED board, one battery. Stick it under the roof, wave the magnetic wand close to it and you have light!

Included battery life time is about 40 hours. Below  you can order spare batteries.

Coach lighting

Lighting strips for carriages. Works on 12V-18V and one or both of the capacitors can be connected as power buffer for stutter free light.

H0e/009/N/Z or small H0/OO carriages

The Shine Plus Mini kit includes:

1 x LED strip 120 mm x 6 mm

2 x Capacitors 6.5 mm x 12 mm

LED strip can be cut to the required size. Minimum length is 60 mm.


Works on both analogue and digital systems.

Supply voltage 6-24V for DC, 4-16V for AC.

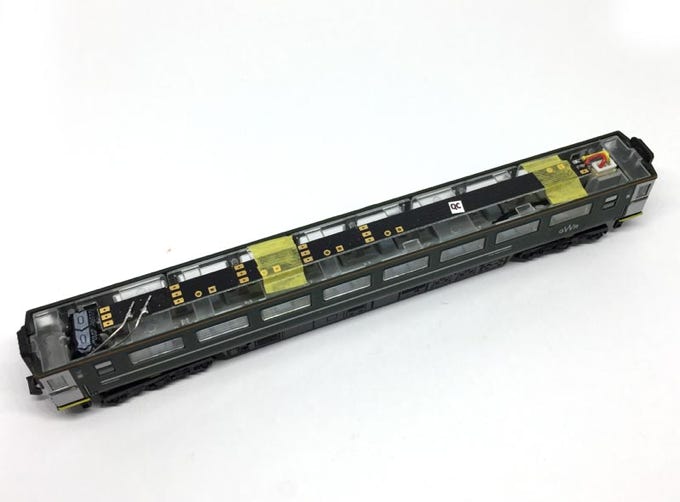

Light bar for Dapol N gauge

Will fit any Dapol N gauge model with 3 pin plug. Wires have to be cut the the desired size, then soldered to contacts.

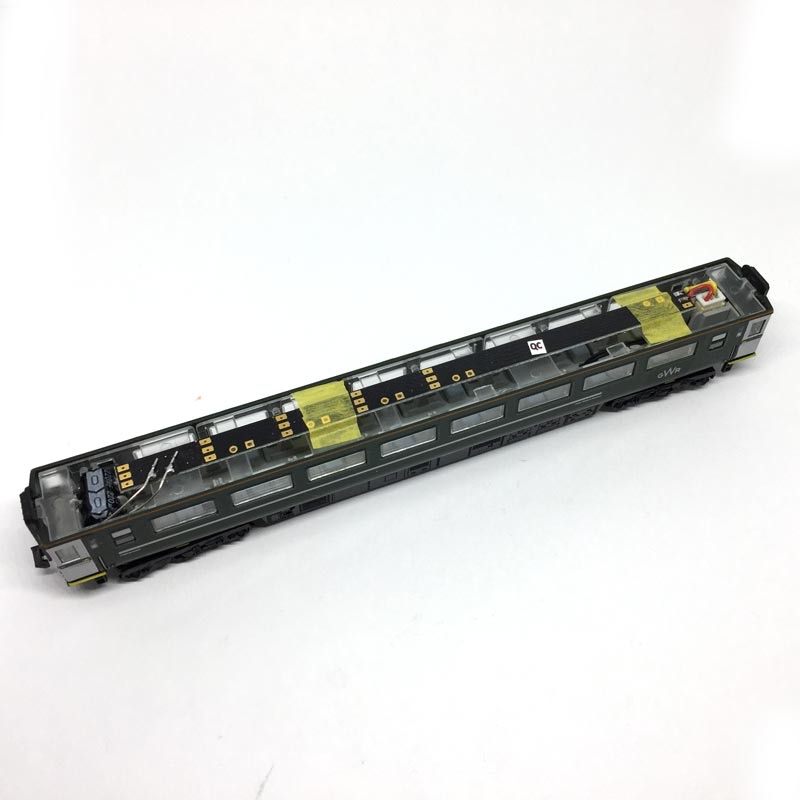

See fitting example below.

Locomotive head and rear lights

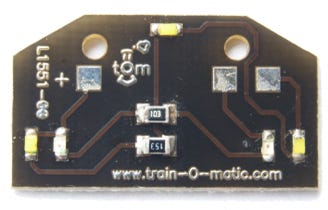

LT1 Locomotive lights cold white and red (separate circuits) by Train-O-Matic.


Distance white LED lights horizontally: 20.5 mm

Distance white LED Light vertically: 9 mm


Works on both analogue and digital systems.

Coach rear lights (red)

LT2 Locomotive lights warm white and red (separate circuits) by Train-O-Matic.


Distance white LED lights horizontally: 20.5 mm

Distance white LED Light vertically: 9 mm


Works on both analogue and digital systems.

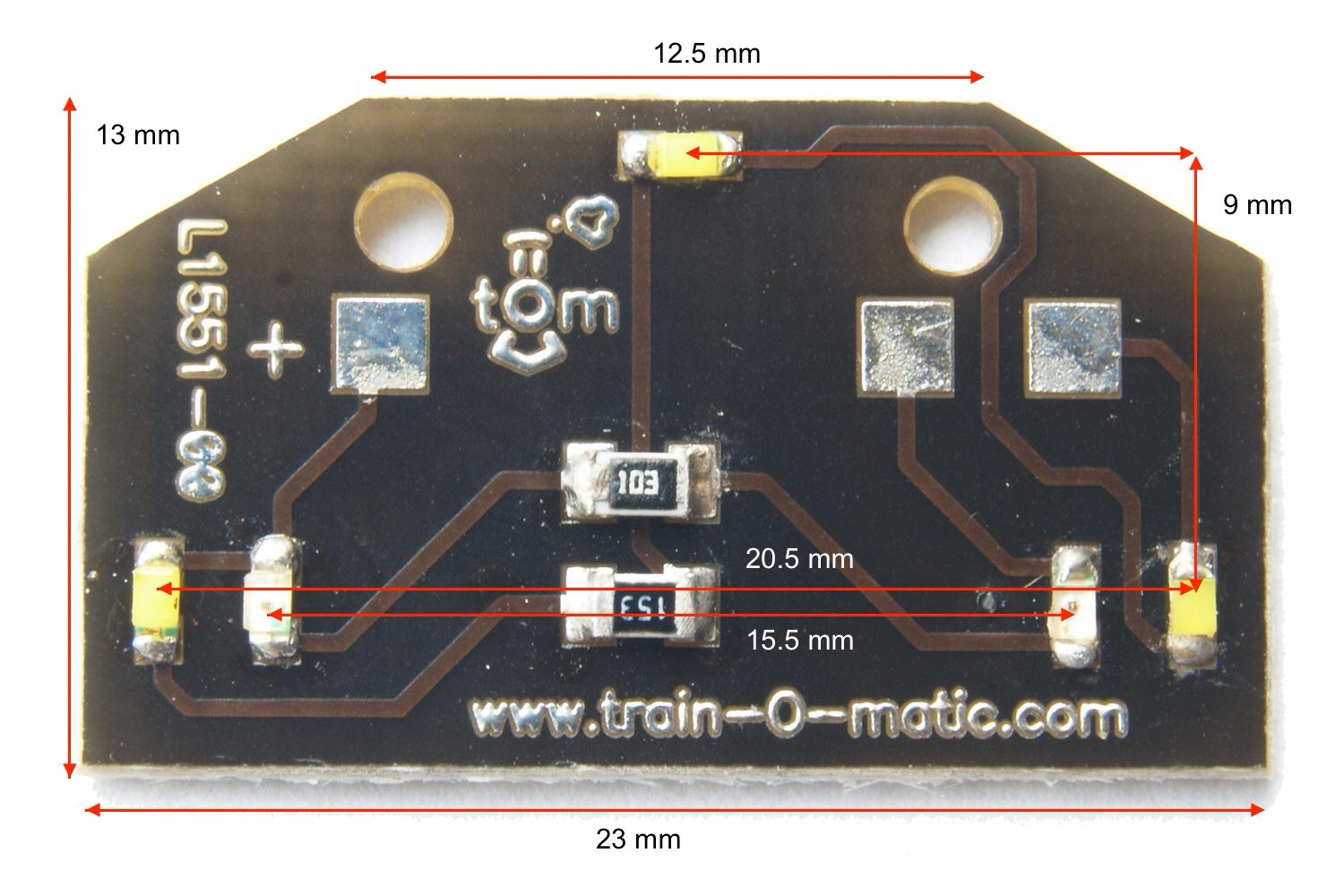

Sizes LT1 and LT2

FDT 01 Rear lights to install in train coach by Train-O-Matic.


LED lights are 22.5 mm apart.


Works on both analogue and digital systems.

Shine Micro - Single LED (10 pack)

FDT 02 Rear lights to install in train coach by Train-O-Matic.


LED lights are 22.5 mm apart.


Works on both analogue and digital systems.

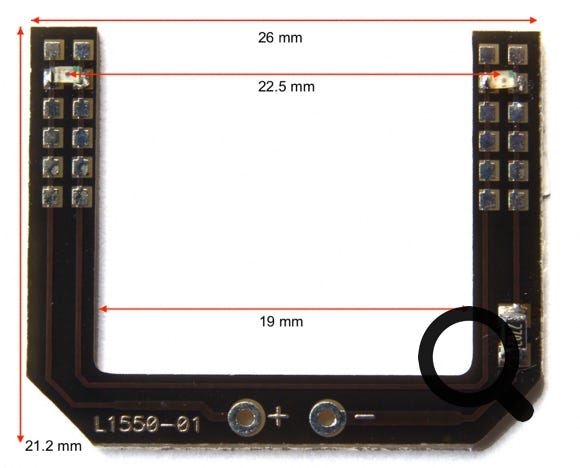

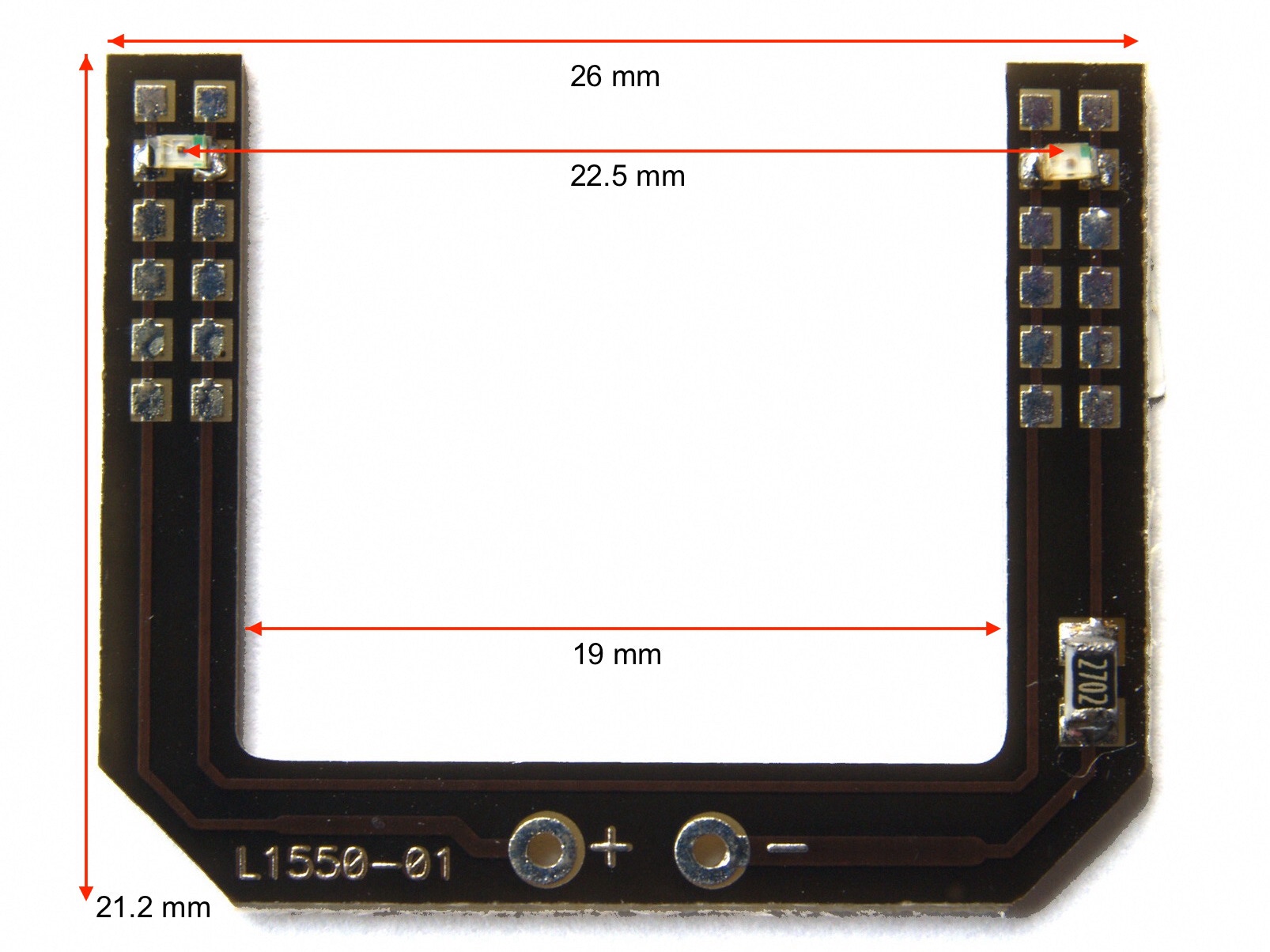

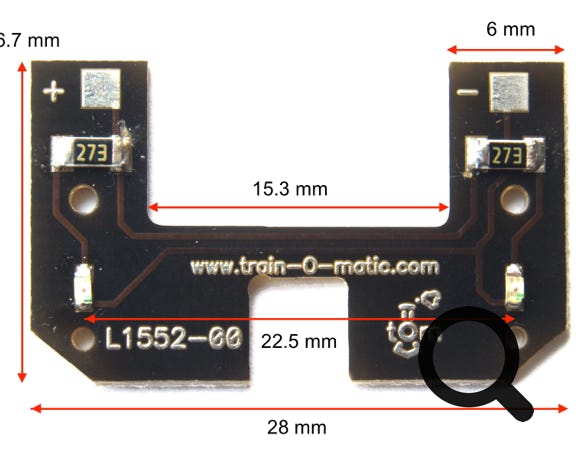

Sizes FDT 01

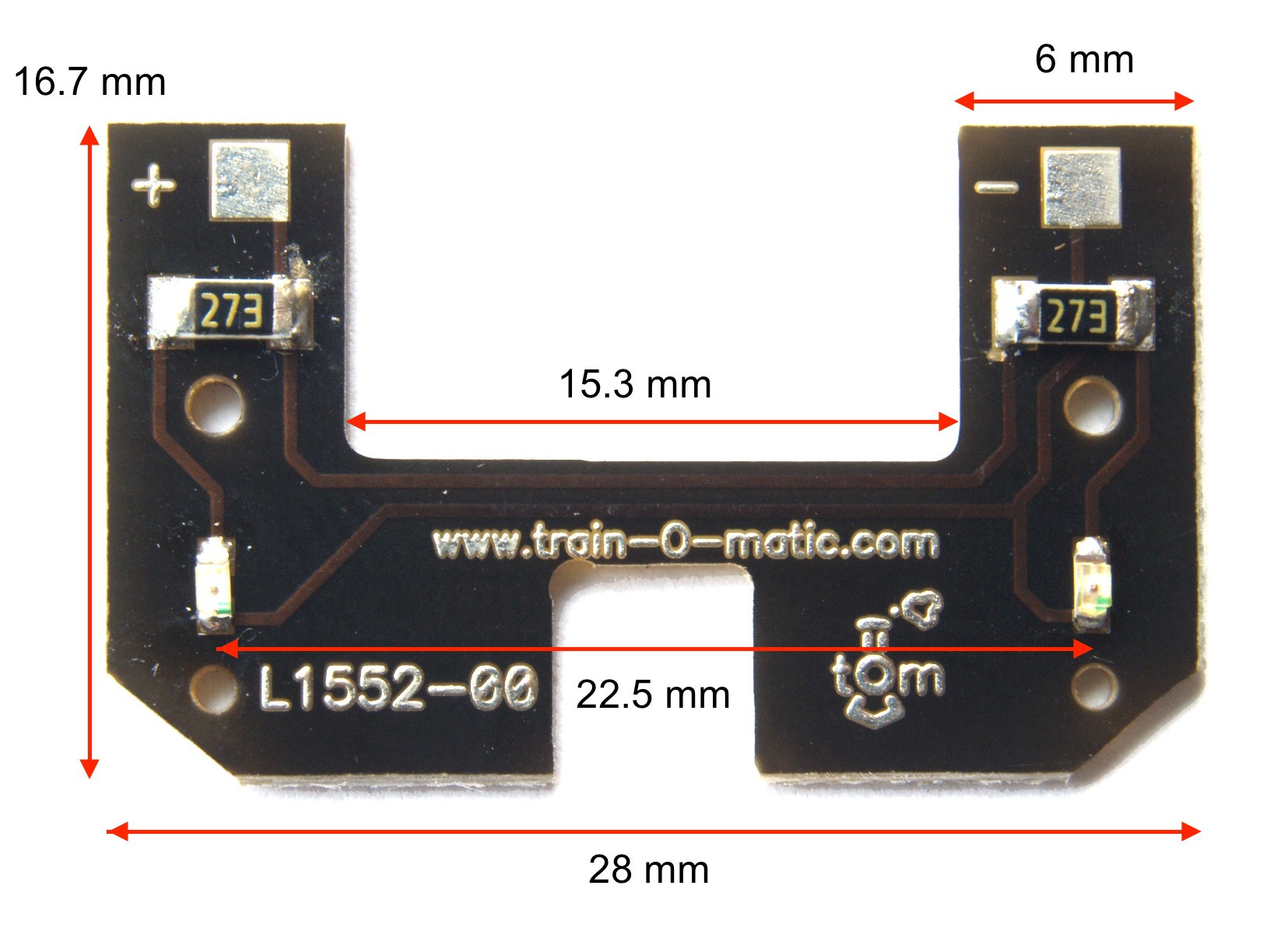

Sizes FDT 02

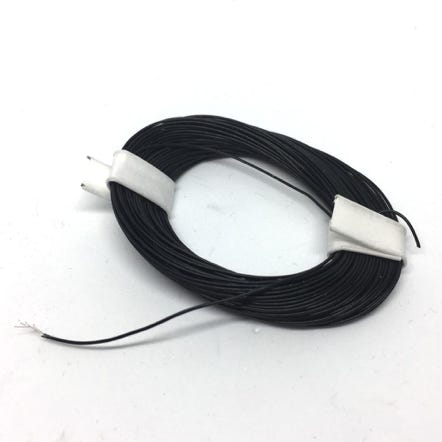

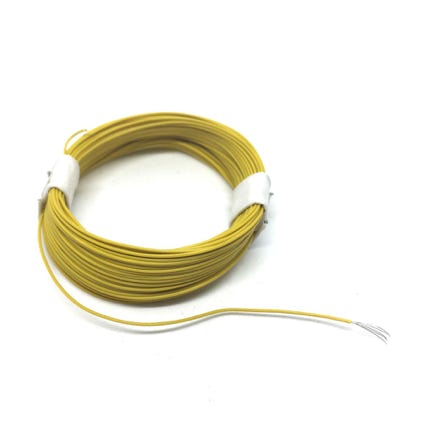

Ultra thin wire

The best wire for internal model train electronics: very flexible and extremely thin. Probably thinner than you think and more than you hoped for!

Read more & buy

Single LED with resistor. Without light effect. Connect to decoder for light effect, if desired.


Power 6-24 Volt DC

Size: 4.7 x 5.2 mm
