(Art. 7126) to 12V coreless motor

Fits Fleischmann Art 7126

Question? Just reach out!

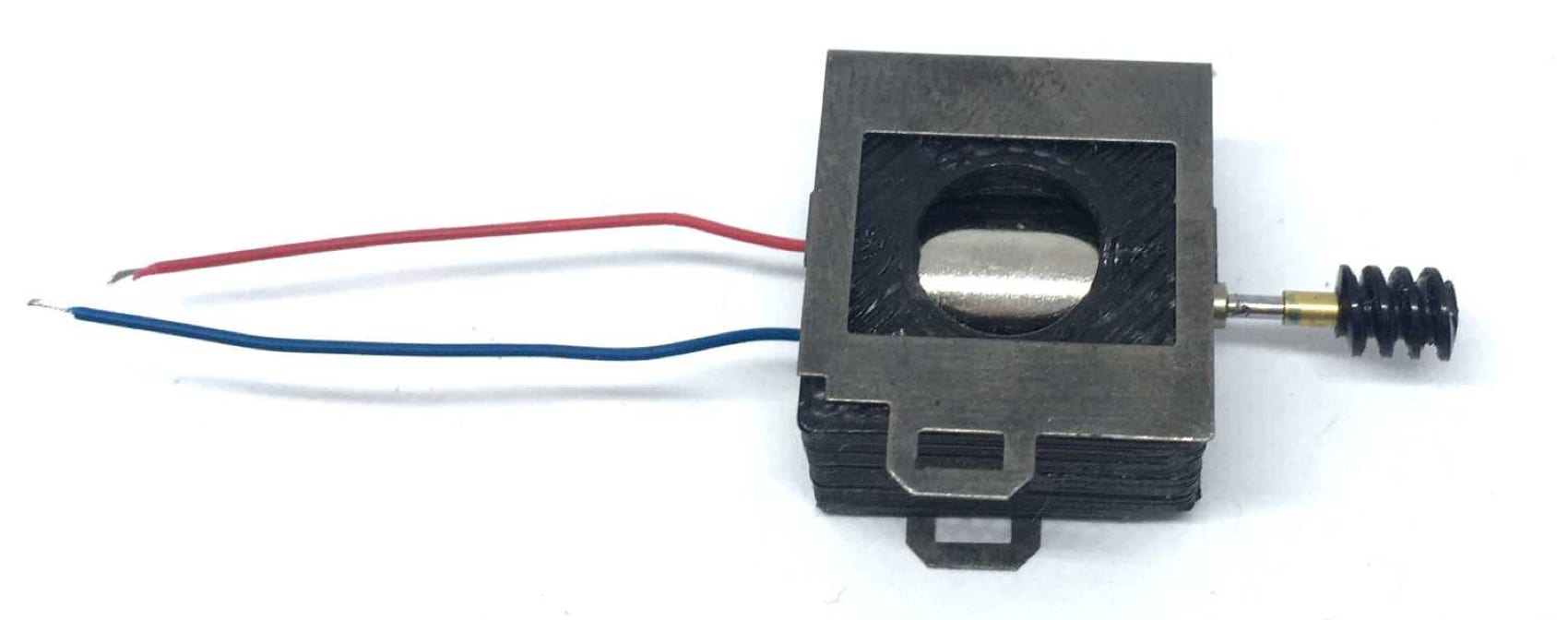

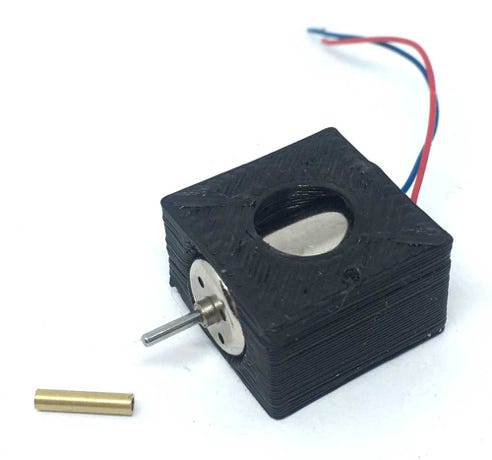

Contents of this offer with motor, as it comes from the Tramfabriek.

What you need for conversion set

- The model and upgrade kit

- Small flat screwdriver

- Soldering iron 15W/25W

- General modelling tools


Installation time: Around 30-40 minutes

1

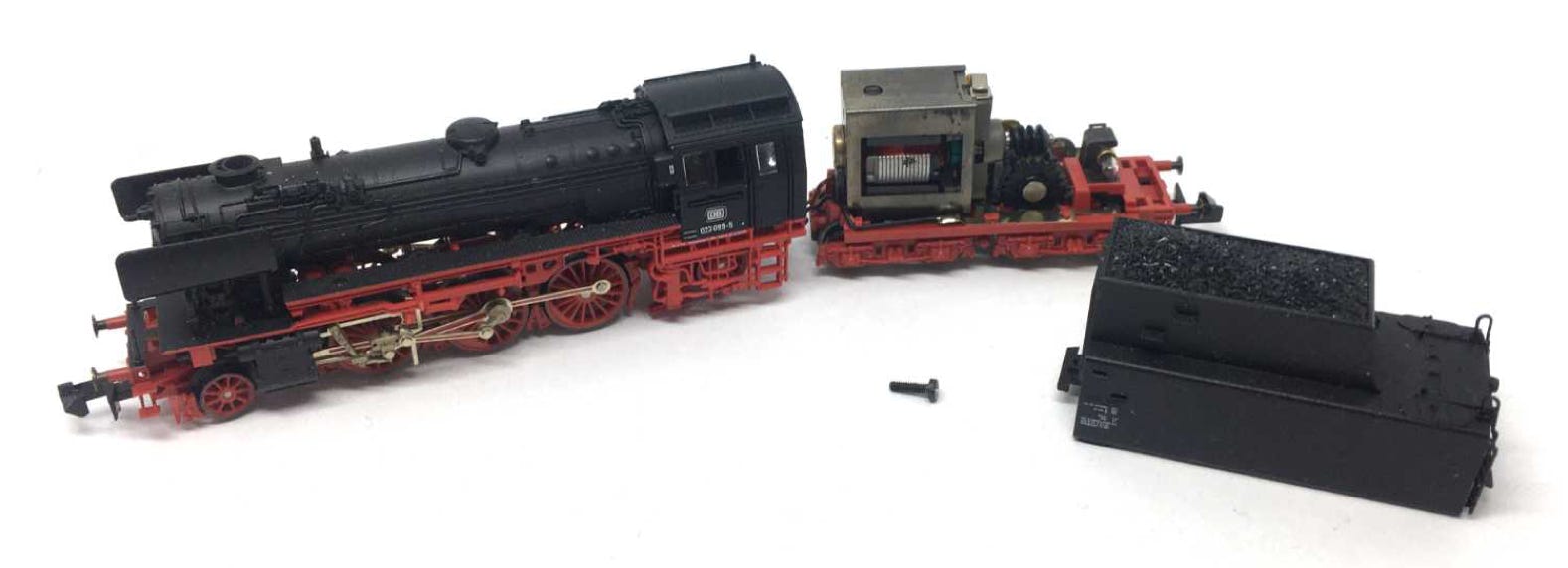

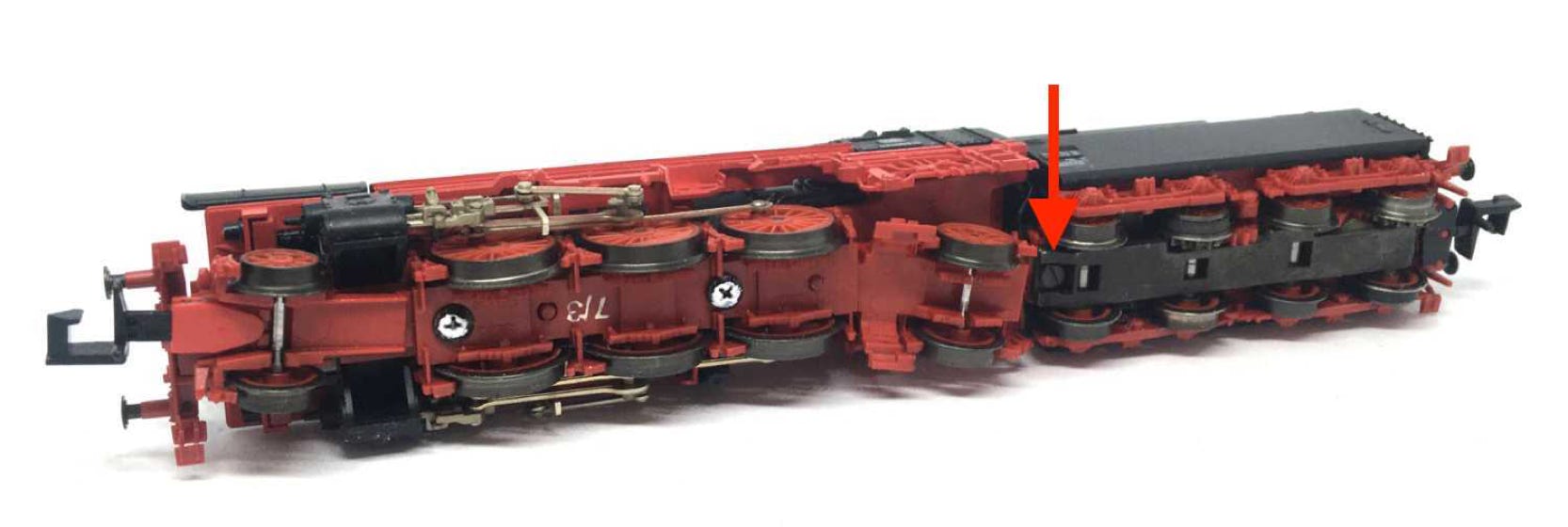

Remove the screw and take the housing off of the tender.

2

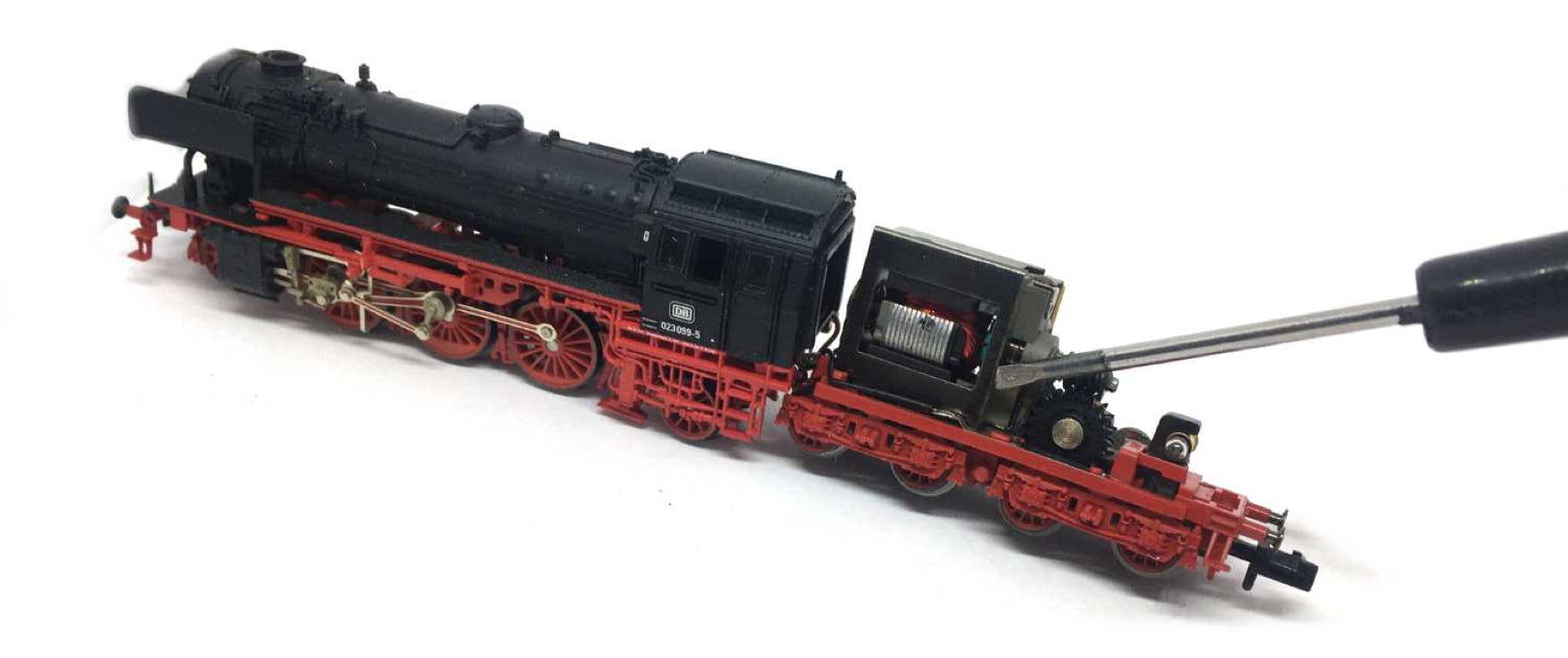

Remove the clip by pushing the sides outwards with a flat screwdriver.

3

4

5

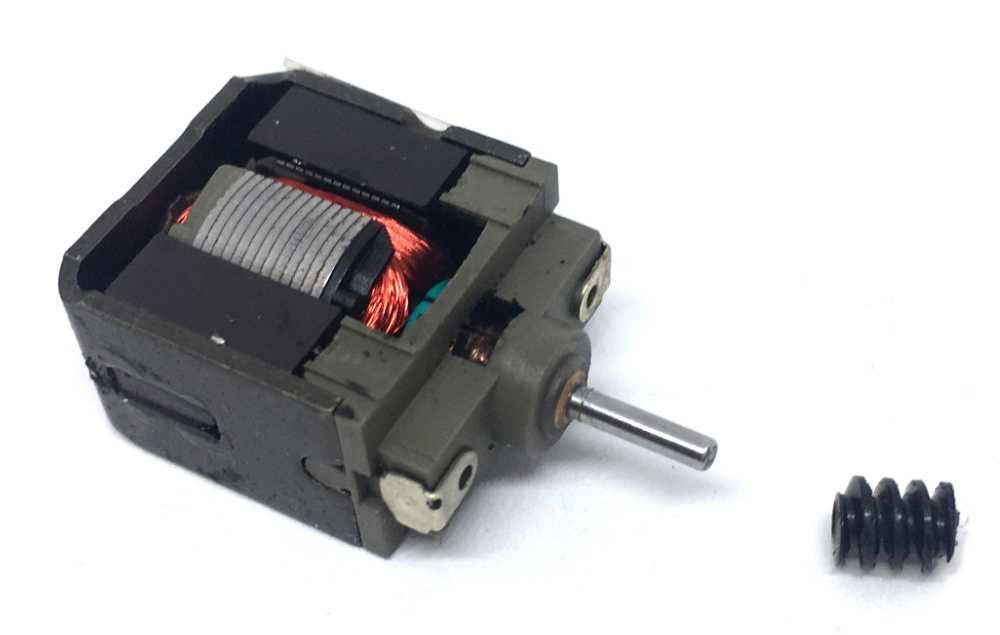

Pull the worm off the original motor. This can easily be achieved with your fingers.

Press brass adapter in worm and glue this with Loctite (It’s better not to use superglue, you won’t have enough time to position it). Cut the cable to length, as seen on the picture.

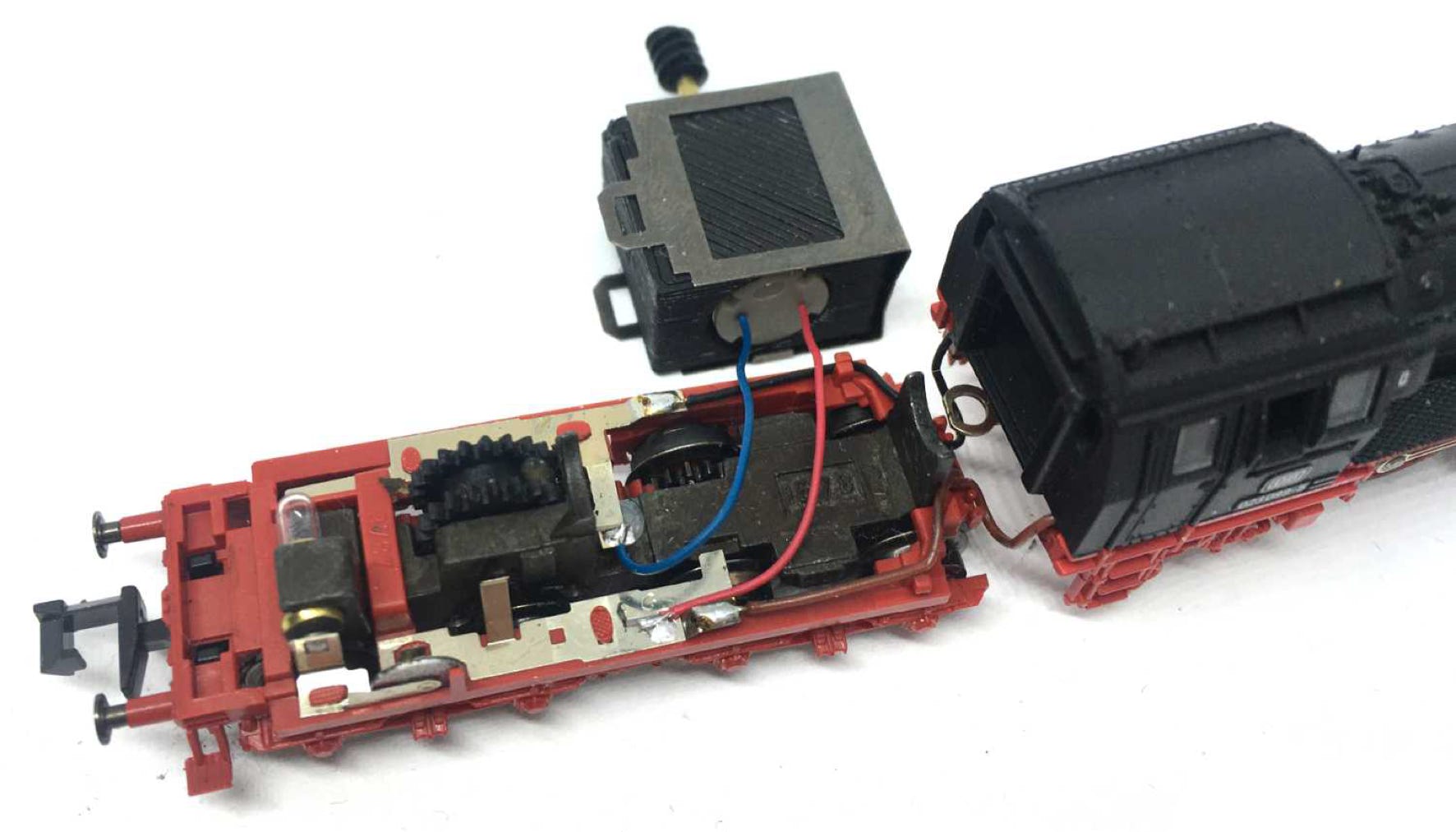

Solder cables of the motor as seen on the picture.

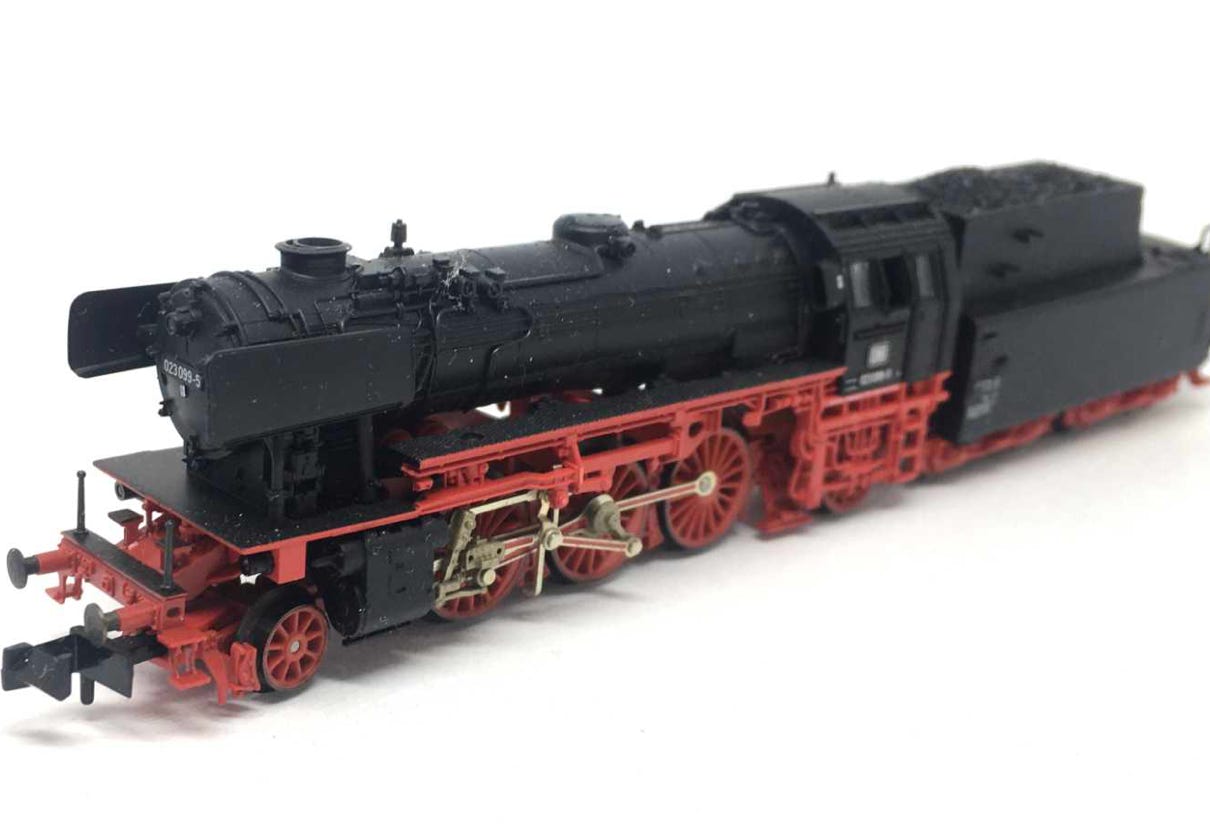

Fleischmann BR 23

6

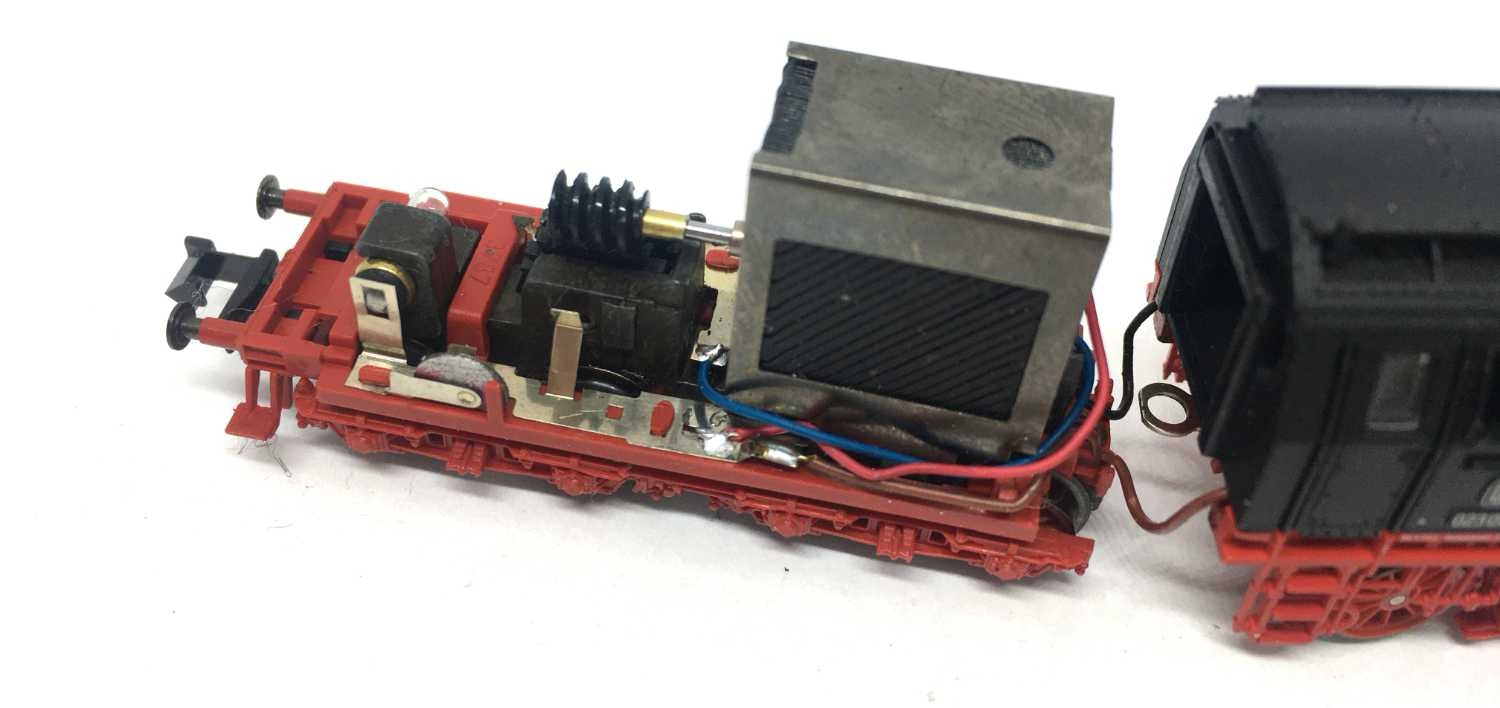

Clip the motor in place. If the clips loosen again, bend them a bit inward.

7

8

Test if it runs well. If you would have rattling sound, you have to centre the worm above the gear.

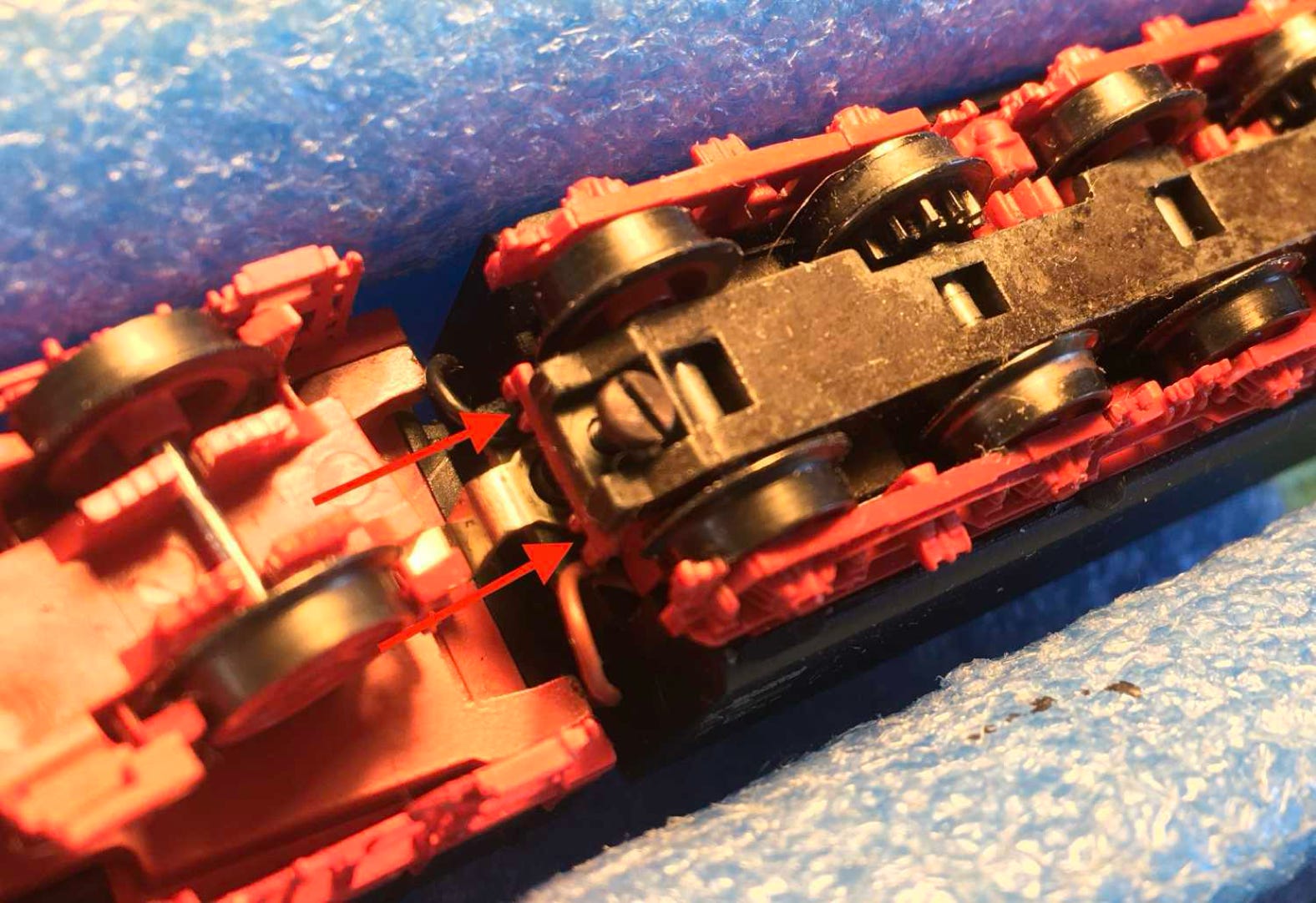

When closing the tender, here’s a help how to refit the screw and guide the coupling and power cables. The arrows point the hole to route the black and red cables.

Digital conversion

This motor upgrade kit can very well be converted to DCC. See for suitable decoders here. Check the digital setting page, for many decoders, to get the best driving experience.
