Groefrail

Contrarail

Simpel, doch razend effectief, is de strakke groefrail van de Tramfabriek. Zo krijgt u dat gewenste realistische effect en heeft u de flexibiliteit bij uw gewenste sporenplan. Dit zonder een vermogen kwijt te zijn aan kant en klare straatplaten met straat en groefrails.


Simple, yet very effective, is the grooved rail by the Tramfabriek. Now there is a solution where you are in control to create your own layout with realistic looking tram rails through streets. This all without spending a fortune on inflexible pre-made street plates with bricks and tracks combined.

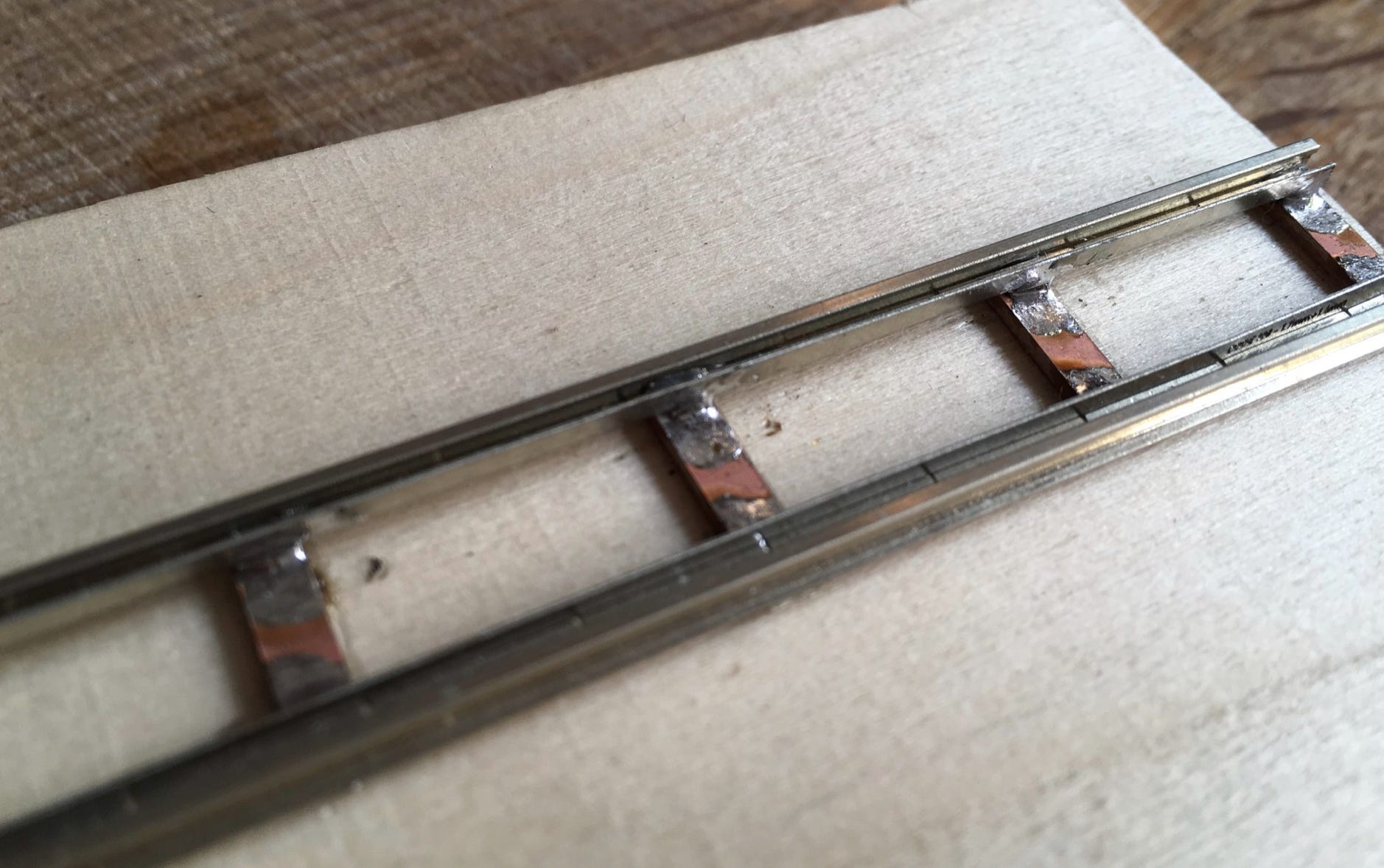

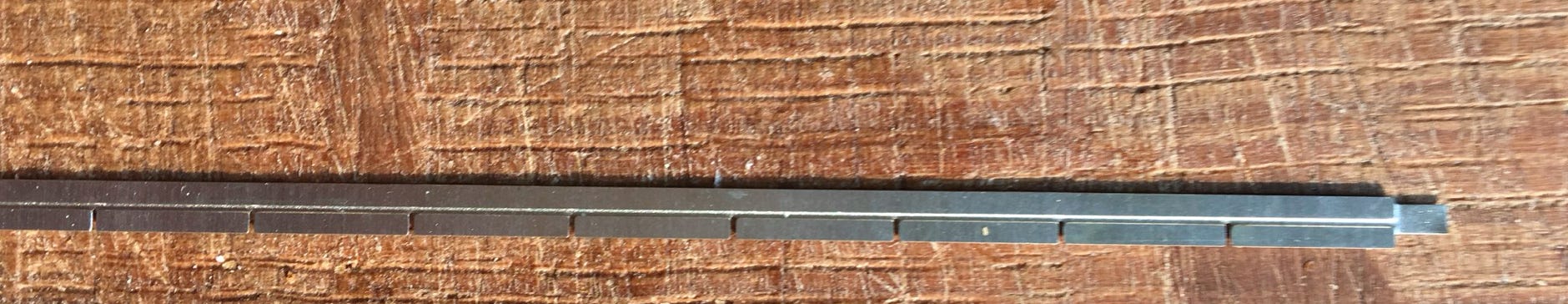

Eén strookje groefrails bestaat uit een zeer sterk nieuw zilver stripje van 0,3 mm dik met een lengte van 28 cm. Door met een tang de tabjes in een hoek van 90 graden te buigen, is de groefrail klaar om gesoldeerd te worden op de voet van een Code 100 rail (2,54 mm hoog standaard H0 rails van Peco, Roco etc).  De rails moet hiervoor wel van de plastic bielzen afgehaald worden en wordt dan op strookjes printplaat gesoldeerd (C+L Finescale bijv). Na het roestbruin verven ziet u weinig meer van de tabjes. Door de tabjes kunt u de groefrail ook gewoon in scherpe bochten buigen, zonder dat dit op de rail zichtbaar wordt.


Na montage heeft u een groefbreedte van ca 1,5 mm, met een groefrail die iets lager ligt dan de spoorstaaf, zodat het geen problemen geeft met het schoonmaken van de rails.


Set met 12 strookjes à 28 cm (totaal 336 cm voor 168 cm spoor): €17,50

One strip of contrarail is made of 0.3 mm thin, strong nickel silver, with a length of 28 cm (11 inch). By bending the tabs 90 degrees with pliers, the contrarail can be soldered on the foot of Code 100 rail (2.54 mm high standard H0 rail by Peco, Roco etc). The rail has to be removed from the plastic sleepers and to be soldered on copper clad board (C+L Finescale fx). After painting the rail rust brown, not much is to be seen of the tabs. Thanks to the tabs, you can curve the rail, without this seeing this on the contrarail itself.



After installing the contrarail, you will have a groove width of about 1.5 mm (0.06 inch), where the contrarail is lower than the track rail itself, so the track is easy to clean.


Set containing 12 strips of each 28 cm (total of 336 cm for 168 cm track): €17,50
